Infineon FS75R12W2T4_B11

nfineon FS75R12W2T4_B11

Overview

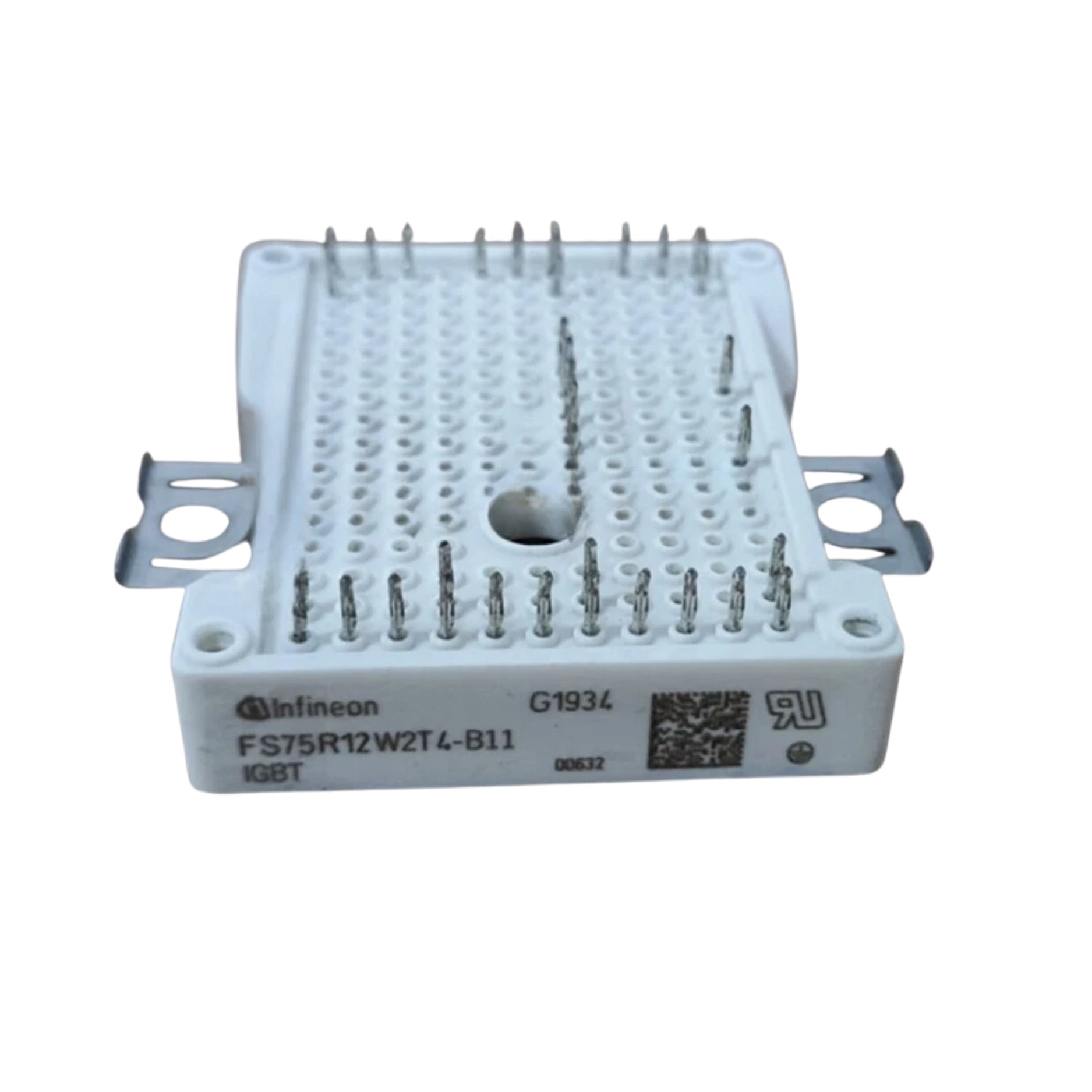

The Infineon FS75R12W2T4_B11 is a single IGBT module rated at 75 A and 1200 V, utilizing Trench & Field‑Stop IGBT4 technology within an EconoDUAL™ 3 chassis‑mount housing. Equipped with a built-in NTC thermistor, it offers efficient switching, reliable thermal management, and compact integration—perfect for industrial motor drives, UPS systems, power converters, and automation solutions.

Key Features

• Collector–Emitter Voltage: 1200 V

• Continuous Collector Current: 75 A

• Trench & Field‑Stop IGBT4 – efficient and fast-switching

• Integrated fast-recovery free-wheeling diode

• EconoDUAL 3 chassis-mount package

• Low stray inductance, compact footprint

• Built-in NTC thermistor for temperature monitoring

• Optimized for industrial reliability

Technical Specifications

• Part Number: FS75R12W2T4_B11

• Configuration: Single IGBT module

• Voltage Rating: 1200 V

• Current Rating: 75 A continuous

• Package: EconoDUAL 3

• Isolation Voltage: ≥2500 V

• Mounting Type: Chassis with screw terminals

• Operating Temperature: –40 °C to +150 °C (Tj)

• Switching Frequency: Up to ~20 kHz

• NTC Thermistor: Included

Applications

• Industrial motor and servo drives

• Three-phase inverters and converters

• Uninterruptible Power Supplies (UPS)

• Renewable energy inverters (PV/wind)

• Automation and control equipment

Why Choose the FS75R12W2T4_B11

• Reliable and efficient switching in compact form

• Integrated thermal sensing enhances system safety

• Built for industrial-grade performance and longevity

• Based on Infineon’s trusted IGBT4 technology

Order Now

The Infineon FS75R12W2T4_B11 IGBT module is available and ships worldwide.

Return to the Infineon IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
