Infineon FS650R08A4P2

Infineon FS650R08A4P2

Overview

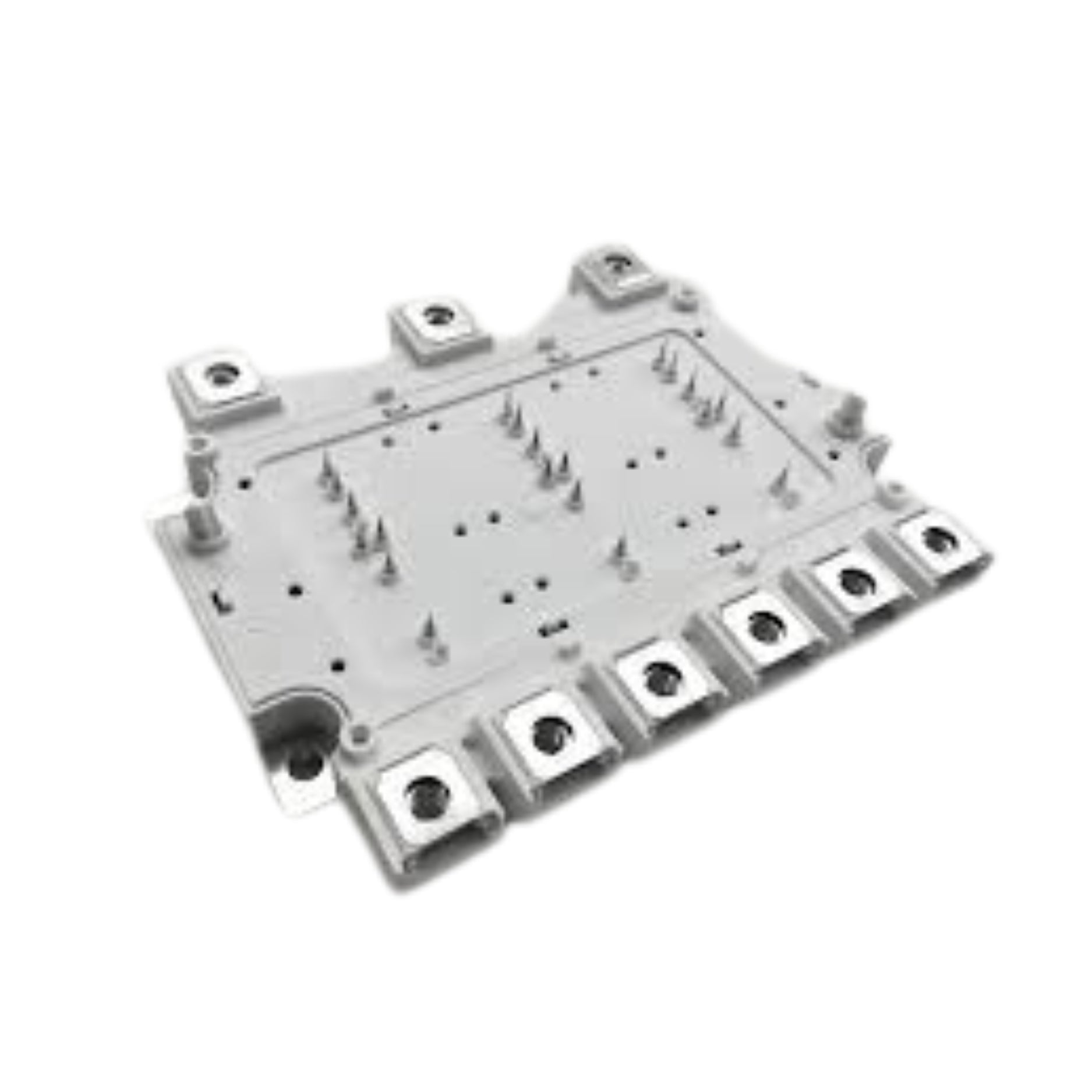

The Infineon FS650R08A4P2 is a robust single IGBT module, rated at 650 A and 800 V, built on advanced Trench & Field‑Stop IGBT4 technology and housed in a PrimePACK™ 2 chassis-mount package. It integrates an NTC thermistor for thermal feedback and provides high-efficiency switching performance suitable for industrial drives, inverters, and UPS applications.

Key Features

• Collector–Emitter Voltage: 800 V

• Continuous Collector Current: 650 A

• Trench & Field‑Stop IGBT4 – optimized for low VCE(sat) and switching losses

• Fast-recovery free-wheeling diode included

• PrimePACK 2 chassis-mount design

• Low stray inductance for efficient operation

• Integrated NTC thermistor for temperature monitoring

• Designed for reliability in demanding applications

Technical Specifications

• Part Number: FS650R08A4P2

• Configuration: Single IGBT module

• Voltage Rating: 800 V

• Current Rating: 650 A continuous

• Package: PrimePACK 2

• Isolation Voltage: ≥2500 V

• Mounting Type: Chassis mount with screw terminals

• Operating Temperature: –40 °C to +150 °C (Tj)

• Switching Frequency: Up to ~10 kHz

• NTC Thermistor: Included

Applications

• High-power industrial motor drives

• Three-phase inverters and converters

• UPS and backup power systems

• Renewable energy converters (wind/solar)

• Railway and traction power systems

Why Choose the FS650R08A4P2

• High current capacity in a compact, chassis-mounted package

• Efficient switching with thermal sensing for safe operation

• Trusted Infineon IGBT4 technology ensures long-term performance

• Ideal for high-power industrial environments

Order Now

The Infineon FS650R08A4P2 IGBT module is available and ships worldwide.

Return to the Infineon IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
