Infineon FS200R07PE4

Infineon FS200R07PE4

Overview

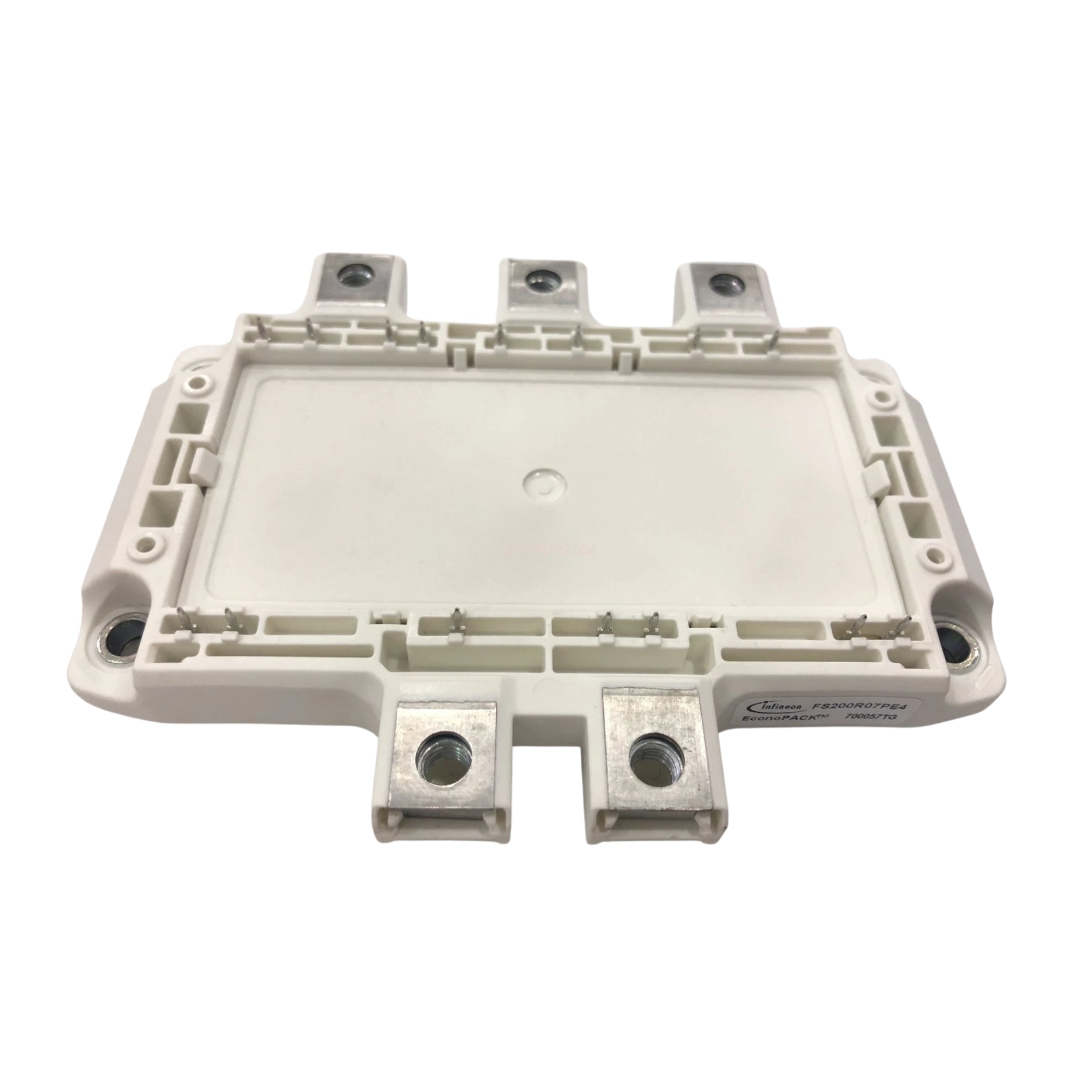

The Infineon FS200R07PE4 is a powerful IGBT module rated at 200 A and 700 V, employing advanced Trench & Field‑Stop technology within a PrimePACK™ E chassis‑mount housing. It features onboard thermal sensing, robust switching efficiency, and reliable operation—ideal for industrial drives, renewable inverters, and UPS applications.

Key Features

• Collector–Emitter Voltage: 700 V

• Continuous Collector Current: 200 A

• Trench & Field‑Stop IGBT technology

• Built-in fast‑recovery free‑wheeling diode

• PrimePACK E chassis‑mount housing

• Compact form with low stray inductance

• Integrated NTC thermistor for thermal feedback

• Designed for high-efficiency industrial use

Technical Specifications

• Part Number: FS200R07PE4

• Configuration: Single IGBT module

• Voltage Rating: 700 V

• Current Rating: 200 A continuous

• Package: PrimePACK E

• Isolation Voltage: ≥2500 V

• Mounting Type: Chassis with screw terminals

• Operating Temperature: –40 °C to +150 °C (Tj)

• Switching Frequency: Up to ~15 kHz

• NTC Thermistor: Included

Applications

• Industrial motor and servo drives

• Three-phase power inverters and converters

• UPS and backup power systems

• Renewable energy systems (PV/wind)

• Industrial automation and welding systems

Why Choose the FS200R07PE4

• Offers high current capacity in a compact, chassis-mount design

• Efficient, low-loss switching with integrated thermal monitoring

• Reliable and durable performance for industrial environments

• Utilizes Infineon’s advanced IGBT technology for optimal efficiency

Order Now

The Infineon FS200R07PE4 IGBT module is available and ships worldwide.

Return to the Infineon IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions

Original Manufacturer Packaging

These products are industrial surplus items preserved in the original manufacturer box. Learn More

DDPARTSSOLUTION Packaging

These products are industrial surplus items shipped in secure DDPARTSSOLUTION protective packaging. Learn More

Refurbished

These products have been previously installed or may show cosmetic signs of prior handling. Learn More
