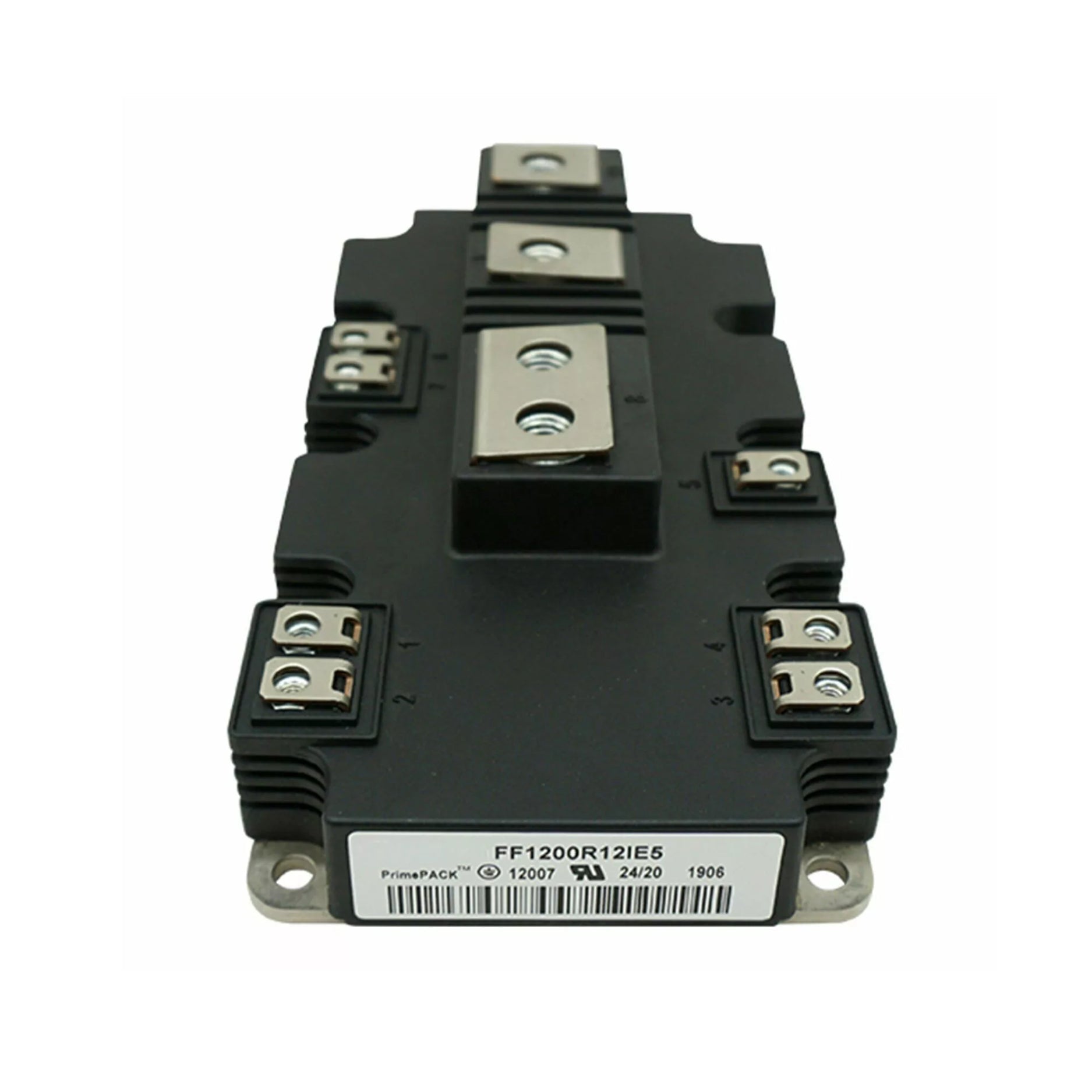

Infineon FF1200R12IE5

Infineon FF1200R12IE5

Overview

The Infineon FF1200R12IE5 is a top-tier IGBT module rated at 1200 A and 1200 V, featuring Trench & Field-stop IGBT technology in an EconoDUAL™ 3 chassis-mounted package. Constructed for high-efficiency, high-current environments, this module excels in industrial drives, power converters, renewable-energy inverters, and traction systems.

Key Features

• Voltage Rating: 1200 V

• Current Rating: 1200 A

• Advanced Trench & Field‑stop IGBT

• Integrated free‑wheeling diode

• EconoDUAL™ 3 standard chassis housing

• High power density and low stray inductance

• Built-in NTC temperature sensor

• Designed for parallel connection and thermal cycling

Technical Specifications

• Part Number: FF1200R12IE5

• Configuration: Single IGBT

• VCE(Max): 1200 V

• IC: 1200 A continuous

• Package: EconoDUAL 3

• Isolation Voltage: ≥2500 V

• Operating Temperature: –40 °C to +150 °C (Tj)

• Mounting: Chassis with screw terminals

• Switching Frequency: Up to 20 kHz

• NTC Thermistor: Included

Applications

• Heavy-duty motor and traction drives

• High-power inverters and UPS systems

• Renewable energy systems (wind/solar)

• Industrial welding converters

• Grid converters and traction power

Why Choose the FF1200R12IE5

• Exceptional current capability in compact packaging

• Low conduction and switching losses for higher efficiency

• EconoDUAL 3 makes integration simple and scalable

• Built to withstand demanding industrial environments

• Infineon’s proven IGBT technology for reliability

Order Now

The Infineon FF1200R12IE5 IGBT module is available and ships worldwide.

Return to the Infineon IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions
