Bussmann 170M3816D

Eaton Bussmann 170M3816D

Overview

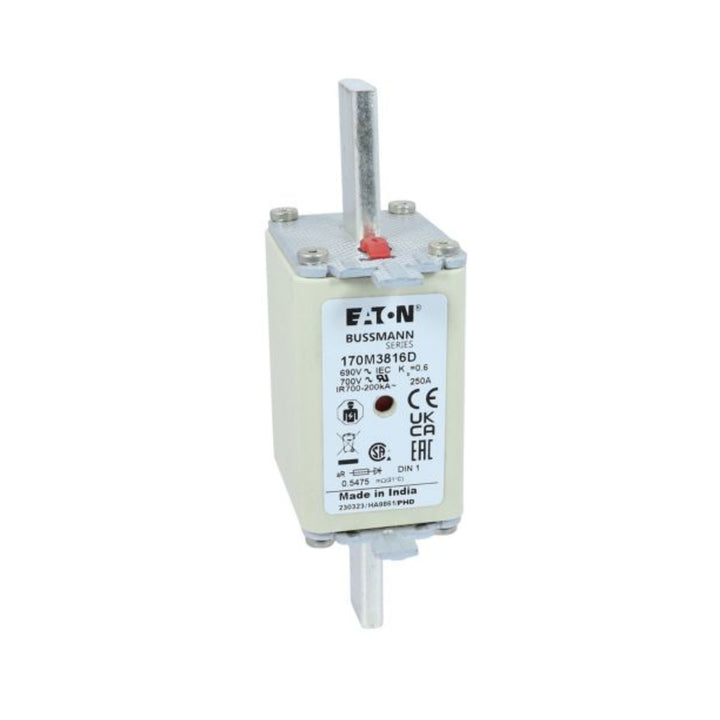

The Eaton Bussmann 170M3816D is a high-speed square body fuse designed for reliable semiconductor and power electronic protection. With a 250 A rating and 690 V AC voltage capacity, this Class aR fuse delivers excellent performance in demanding industrial applications such as DC common bus, DC drives, and power converters. Built with DIN 43-620 blade contacts, dual fuse status indicators, and a robust square body design, it ensures durability, safety, and easy installation in high-power systems.

Key Features

• Amperage Rating: 250 A

• Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)

• Breaking Capacity: 200 kA

• Class aR, semiconductor protection fuse

• Fuse Size: 1, square body design

• Clearing I²t: 31,000 at 660 V

• Pre-arc I²t: 4,350

• Watt Loss: 16 W

• Dual fuse status indicator

• Non-IMGL (no insulated metal gripping lugs)

• CE Marked, RoHS Compliant, UL Recognized, IEC Rated

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: 170M3816D

• UPC: 051712334044

• EAN: 5027590450331

• Fuse Shape: Square body with knife blade contacts

• Connection: DIN 43-620 blade end x blade end

• Construction Size: 1

• Fuse Type: Bladed, DIN 43620

• Interrupt Rating: 200 kAIC

• Dimensions: 135 mm (L) × 64 mm (H) × 40 mm (W)

• Weight: 423 g

• Packaging: Standard

Applications

• Semiconductor protection

• DC common bus systems

• DC drives and inverters

• Power converters and rectifiers

• High-speed electronic circuits

Why Choose the Eaton Bussmann 170M3816D

• High-speed protection for semiconductor devices

• Dual status indicators for easy monitoring

• Compact square body with knife blade terminals

• Certified to IEC and UL standards

• Reliable Bussmann quality for industrial applications

Order Now

The Eaton Bussmann 170M3816D high-speed square body fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
