Bosch Rexroth MKD090B-047-KG1-KN

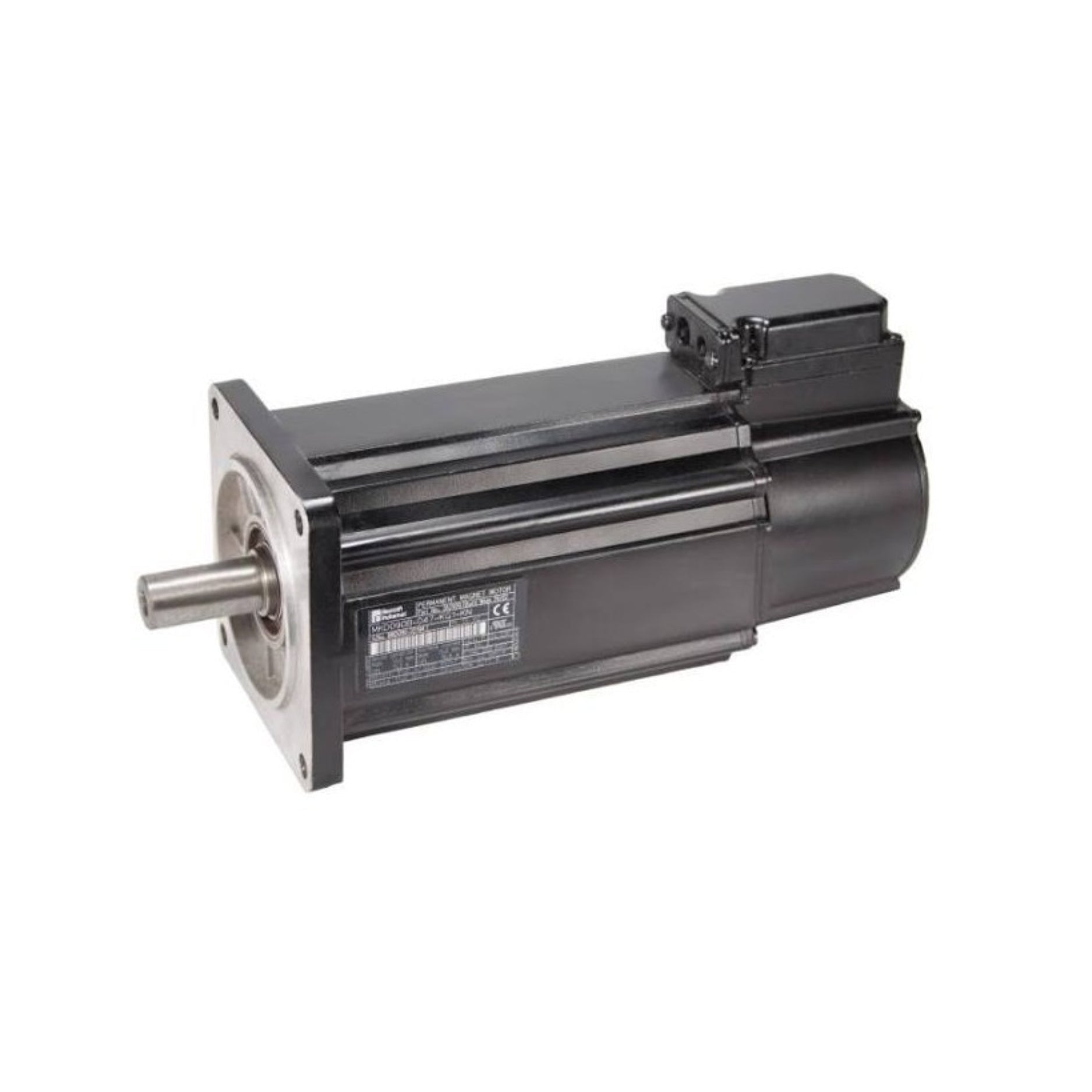

Bosch Rexroth MKD090B-047-KG1-KN Servo Motor

Overview

The Bosch Rexroth Indramat MKD090B-047-KG1-KN is a high-performance servo motor from the MKD Synchronous Motors series, designed for demanding motion control applications. With a continuous standstill torque of 12.0 Nm and a theoretical maximum torque of 43.5 Nm, it delivers powerful and precise performance.

This motor features a plain shaft with seal, a holding brake rated at 11 Nm, and resolver feedback with an integrated encoder for precise absolute position detection over more than 4096 revolutions. Engineered with IP65 protection, it withstands harsh industrial environments, while the side B connection orientation ensures flexible integration.

Key Features

• Continuous torque at standstill: 12.0 Nm

• Theoretical maximum torque: 43.5 Nm

• Shaft design: Plain shaft with seal

• Holding brake: 11 Nm torque

• Encoder type: Resolver feedback with integrated encoder

• Position detection: Absolute (>4096 revolutions)

• Rotor moment of inertia: 43 × 10⁻⁴ kg·m²

• Protection rating: IP65

• Connection orientation: Side B

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Series: MKD Synchronous Motors

• Model: MKD090B-047-KG1-KN

• Continuous Torque (Standstill): 12.0 Nm

• Theoretical Maximum Torque: 43.5 Nm

• Shaft Design: Plain shaft with shaft seal

• Holding Brake: With holding brake (11 Nm torque)

• Encoder Type: Resolver feedback with integrated encoder

• Position Detection: Absolute (>4096 revolutions)

• Motor Length: B

• Motor Size: 090

• Centering Diameter: 110 mm

• Connection Direction: Side B

• Winding Code: 047

• Rotor Moment of Inertia: 43 × 10⁻⁴ kg·m²

• Winding Resistance: 1.2 Ω

• Winding Inductivity: 10.1 mH

• Protection Rating: IP65

Applications

• Precision CNC machinery

• Packaging and printing equipment

• Robotics and automation systems

• Material handling solutions

• High-performance assembly lines

Why Choose the MKD090B-047-KG1-KN

• Powerful torque output for dynamic applications

• Absolute position detection for high-precision control

• Durable design with IP65 protection

• Integrated brake system for safety and reliability

• Flexible connection orientation (Side B) for integration

Order Now

The Bosch Rexroth MKD090B-047-KG1-KN Servo Motor is available for purchase and ships worldwide.

Return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your automation needs.

Explore our Bosch Rexroth Industrial Automation Products main category to discover a complete range of drives, motors, amplifiers, and control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
