Bosch Rexroth MKD071B-061-KG0-KN

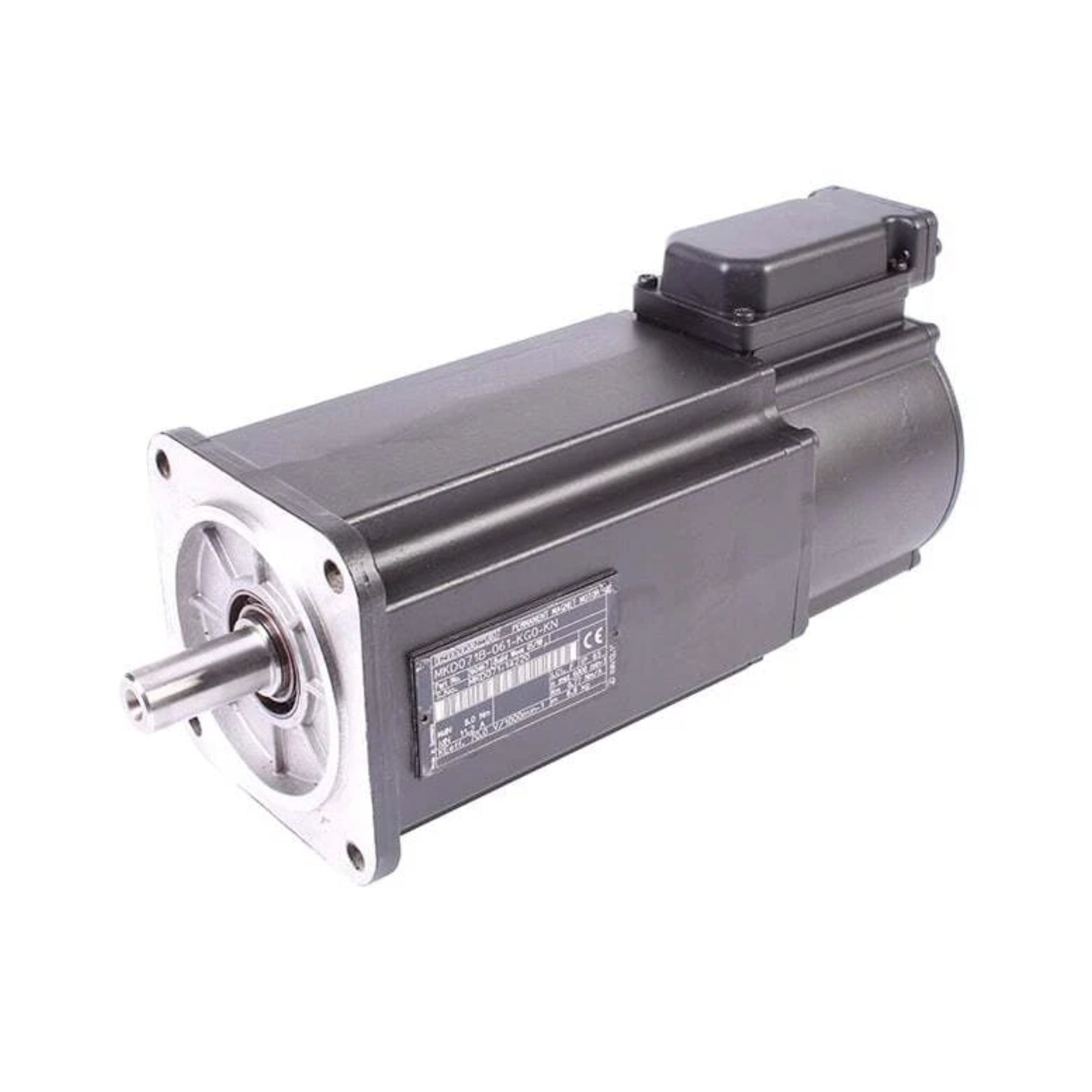

Bosch Rexroth Indramat MKD071B-061-KG0-KN Servo Motor

Overview

The Bosch Rexroth Indramat MKD071B-061-KG0-KN is a high-performance servo motor from the MKD Synchronous Motors series, designed for precise automation applications. Delivering 8.0 Nm continuous torque at standstill and operating at a characteristic motor speed of 4500 rpm, it ensures both accuracy and efficiency in industrial environments.

With a plain shaft design, resolver feedback with integrated encoder, and absolute position detection over more than 4096 revolutions, the MKD071B-061-KG0-KN provides robust and reliable control. Its IP65 protection rating and durable construction make it ideal for demanding motion control systems.

Key Features

• Member of the MKD Synchronous Motors series

• Continuous torque at standstill: 8.0 Nm

• Characteristic motor speed: 4500 rpm

• Resolver feedback with integrated encoder

• Absolute position detection >4096 revolutions

• Plain shaft design with shaft seal

• No holding brake for reduced complexity

• Rotor moment of inertia: 8.7 × 10⁻⁴ kg·m²

• IP65 protection for harsh environments

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Series: MKD Synchronous Motors

• Model: MKD071B-061-KG0-KN

• Shaft Design: Plain shaft

• Shaft Seal: Yes

• Holding Brake: Without holding brake

• Encoder Type: Resolver feedback w/ integrated encoder

• Position Detection: Absolute (>4096 revs)

• Continuous Torque at Standstill: 8.0 Nm

• Continuous Current at Standstill (100K): 13.2 A

• Characteristic Motor Speed: 4500 rpm

• Voltage Constant: 70 V/1000 min⁻¹

• Winding Inductivity: 7.2 mH

• Motor Length: B

• Motor Size: 071

• Centering Diameter: 95 mm

• Connection Direction: Side B

• Rotor Moment of Inertia: 8.7 × 10⁻⁴ kg·m²

• Protection Class: IP65

• Product Type: Servo Motor

Applications

• Packaging machinery

• Robotics and automation systems

• Printing and textile machines

• Material handling and conveyor systems

• Precision assembly equipment

Why Choose the MKD071B-061-KG0-KN

• High torque-to-speed ratio for precision motion control

• Reliable resolver-based feedback with absolute detection

• IP65 protection ensures durability in industrial environments

• Optimized for long-term performance with minimal maintenance

Order Now

The Bosch Rexroth Indramat MKD071B-061-KG0-KN Servo Motor is available and ready for worldwide shipping.

Return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your automation needs.

Explore our Bosch Rexroth Industrial Automation Products main category to discover a complete range of drives, motors, amplifiers, and control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
