Bosch Rexroth MKD041B-144-GP0-KN

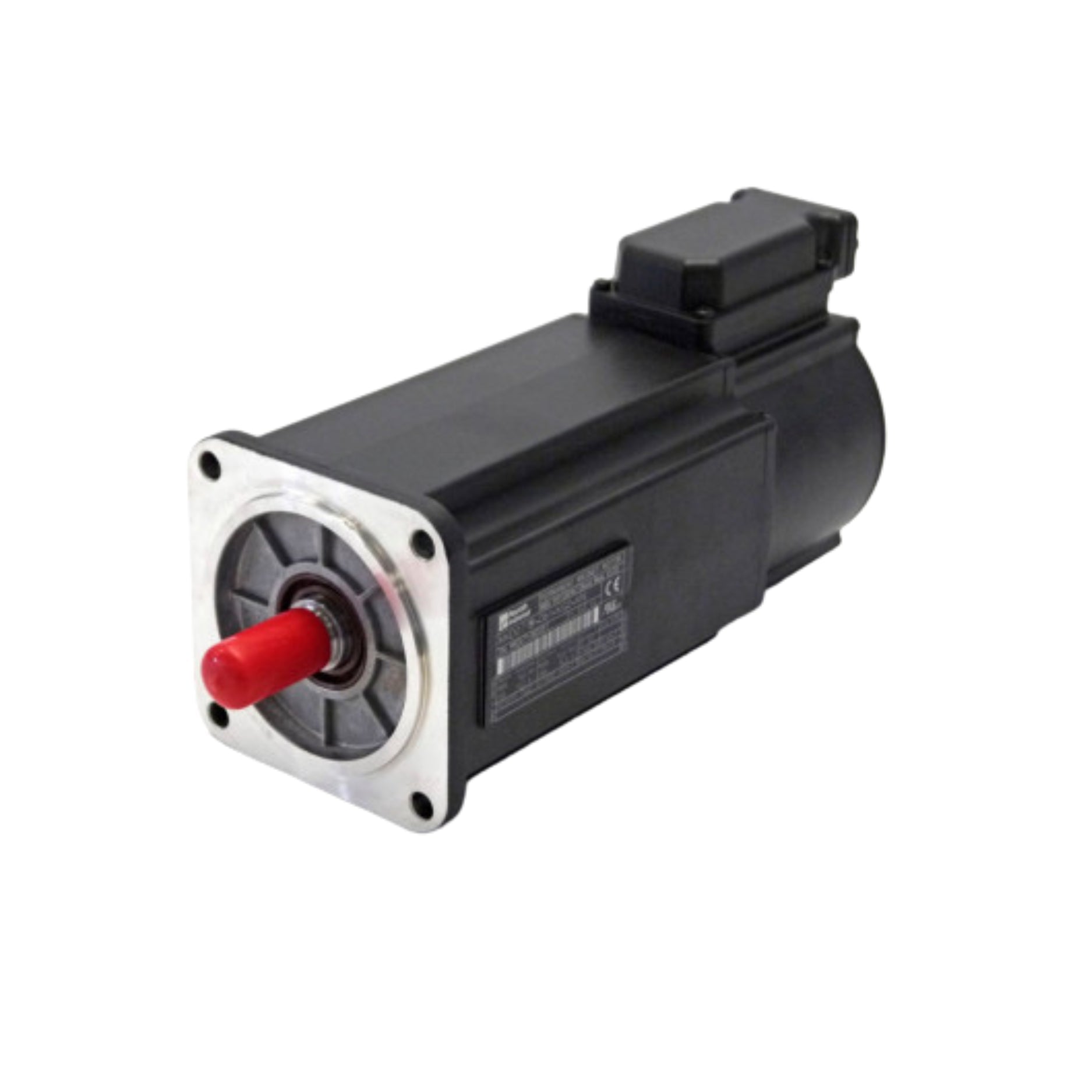

Bosch Rexroth Indramat MKD041B-144-GP0-KN Servo Motor

Overview

The Bosch Rexroth Indramat MKD041B-144-GP0-KN is a compact and reliable synchronous servo motor from the MKD Synchronous Motors series, designed for precise motion control in demanding automation environments. Featuring a resolver feedback (RSF) encoder for reliable position detection and an IP65 protection rating, this motor ensures dependable operation in industrial settings.

With a flange size of 82 mm, motor size 041, and a motor length B profile, it offers a space-saving solution while delivering consistent performance. This model is built without a holding brake, depending on external safety systems for emergency stop functions.

Key Features

• Shaft with keyway and integrated shaft seal

• Continuous torque at standstill: 2.7 Nm

• Continuous current at standstill (100K): 8.2 A

• Characteristic motor speed: 6000 rpm

• Resolver feedback (RSF) encoder

• Relative position detection

• IP65 protection rating

• Standard housing design

• Compact motor mass of 4.4 kg

Technical Specifications

• Series: MKD

• Motor Size: 041

• Motor Length: B

• Winding Code: 144

• Shaft Design: Shaft with keyway

• Shaft Seal: Yes

• Holding Brake: Without holding brake

• Encoder Type: Resolver feedback (RSF)

• Position Detection: Relative

• Continuous Torque at Standstill: 2.7 Nm

• Continuous Current at Standstill (100K): 8.2 A

• Characteristic Motor Speed: 6000 rpm

• Flange Size: 82 mm

• Connection Direction: Side B

• Motor Mass: 4.4 kg

• Protection Rating: IP65

• Housing Design: Standard

Applications

• Conveyor systems

• Packaging machinery

• Robotic automation

• High-speed positioning in industrial environments

Order Now

The Bosch Rexroth Indramat MKD041B-144-GP0-KN is available for fast worldwide shipping.

Return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your automation needs.

Explore our Bosch Rexroth Industrial Automation Products main category to discover a complete range of drives, motors, amplifiers, and control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
