Semikron SKKD 100/18

Semikron SKKD 100/18

Overview

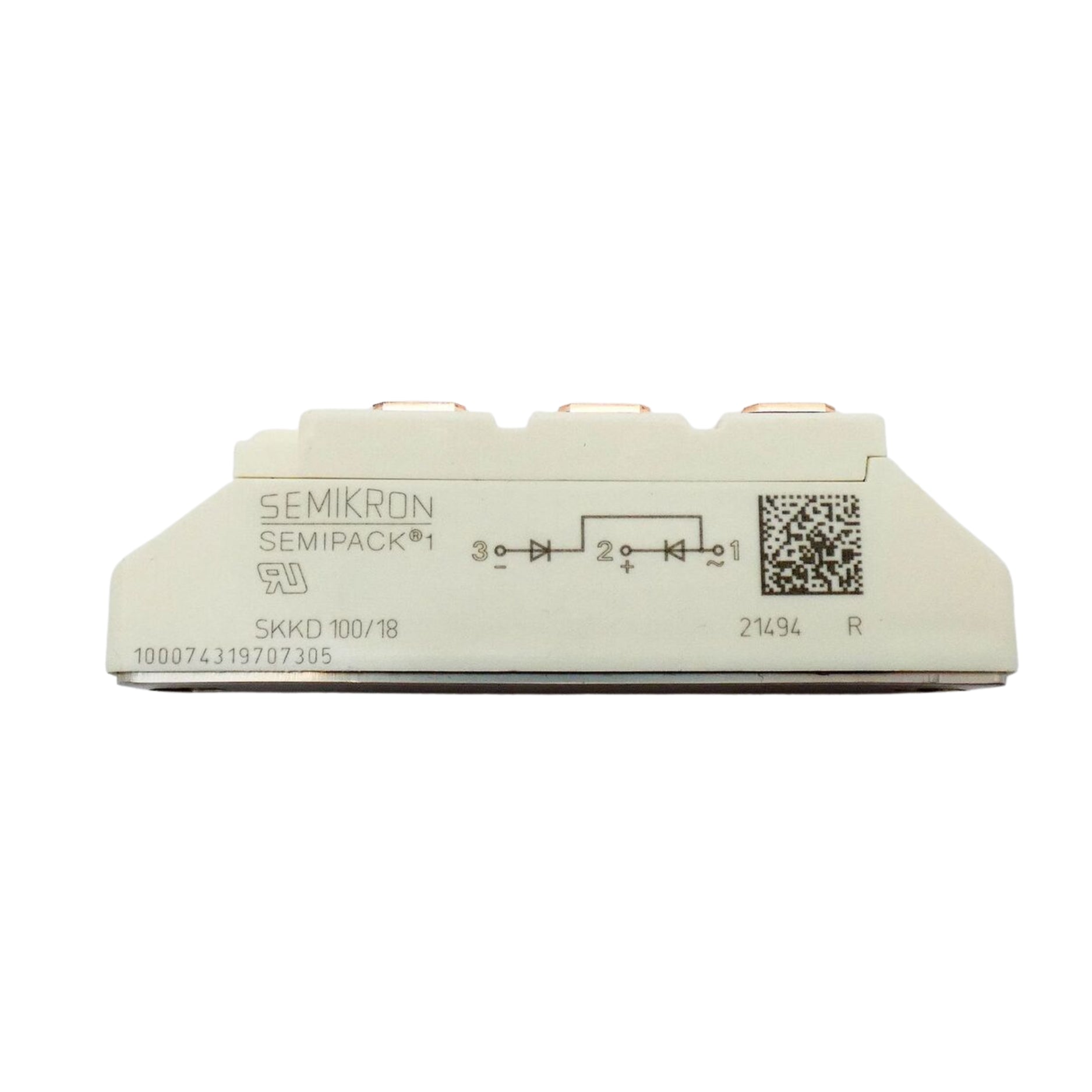

The Semikron SKKD 100/18 is a dual diode module designed for high-voltage rectifier and freewheeling applications. With a blocking voltage of 1800 V and a current rating of 100 A, it offers excellent performance in industrial power electronics. Housed in a compact SEMIPACK 1 case, this module is engineered for high surge current capability and electrical isolation.

Key Features

• Blocking Voltage: 1800 V

• Average Forward Current: 100 A

• Dual diode configuration (common cathode or anode)

• SEMIPACK 1 industry-standard housing

• Electrically insulated baseplate

• High surge current tolerance

• Reliable press-fit or screw terminal mounting

Technical Specifications

• Module Type: Diode

• Configuration: Dual (common cathode/anode)

• VRRM: 1800 V

• IF(AV): 100 A

• Surge Current: >1600 A

• Isolation Voltage: 2500 V RMS

• Housing: SEMIPACK 1

• Mounting: Chassis mount

• Operating Temperature: –40 °C to +150 °C

Applications

• Input rectifiers

• Freewheeling diodes

• Power converters

• Battery chargers

• Welding equipment

• Motor drives

Why Choose the SKKD 100/18

• High-voltage, high-current capability

• Dual diode layout for flexible use

• Compact and rugged SEMIPACK housing

• Trusted Semikron quality and thermal performance

Order Now

The Semikron SKKD 100/18 diode module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
