Semikron  SKiiP 82AC12IT1

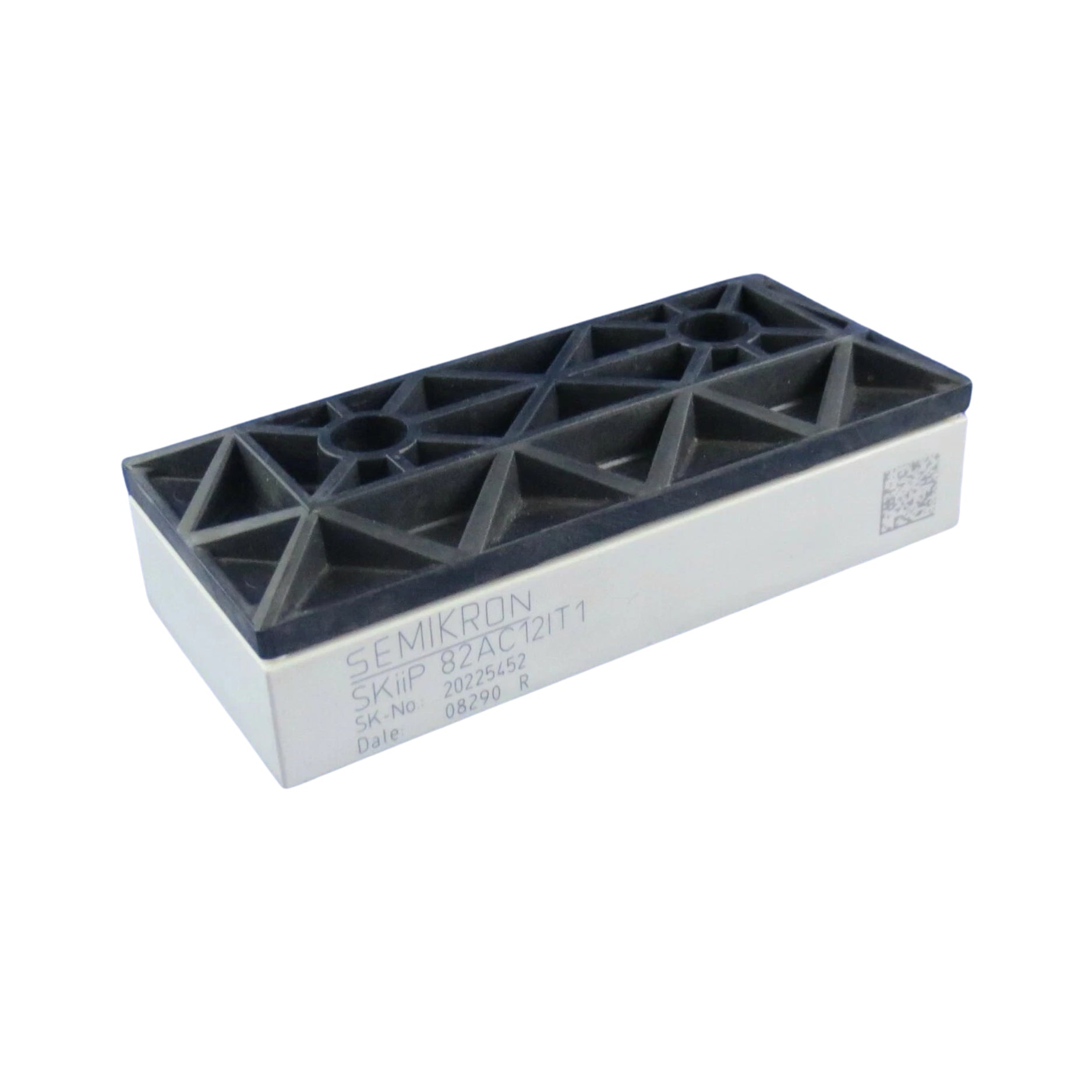

Semikron SKiiP 82AC12IT1

Overview

The Semikron SKiiP 82AC12IT1 is a high-power IGBT module with an integrated gate driver, rated for 800 A at 1200 V. Part of Semikron’s advanced SKiiP (Semikron Intelligent Integrated Power) series, this module combines robust power handling and integrated control in a single compact unit—ideal for demanding industrial inverters, motor drives, and power conversion systems.

Key Features

• Blocking Voltage: 1200 V

• Rated Current: 800 A

• Integrated driver with desaturation protection, fault diagnostics, and UVLO

• Electrically isolated baseplate for safe and efficient mounting

• High‑density SKiiP housing, optimized for thermal performance

• Press‑fit or screw‑mount options for versatile installation

• Configured as a 3-phase bridge, ideal for high-power applications

Technical Specifications

• Module Type: IGBT with Integrated Driver

• VCES: 1200 V

• IC: 800 A

• Configuration: Full 3-phase bridge

• Isolation Voltage: ≥2500 V RMS

• Cooling: Baseplate with thermal interface material

• Mounting: Press-fit or screw-mount

• Operating Temperature: –40 °C to +125 °C

Applications

• Heavy-duty industrial inverters

• Large-scale motor drives and automation systems

• Renewable energy power converters (solar, wind)

• UPS and traction systems

• Mass production and factory automation equipment

Why Choose the SKiiP 82AC12IT1

• Combines high-current capability and integrated driver—cuts BOM and design complexity

• Efficient thermal management ensures reliability under maximum load

• Built-in protections safeguard against short-circuit, over-current, and under-voltage

• Compact module design saves installation space while delivering heavy-duty performance

• Backed by Semikron’s industrial-grade engineering and long-term support

Order Now

The Semikron SKiiP 82AC12IT1 intelligent IGBT power module is available globally.
