Semikron SKiiP24NAB126V10

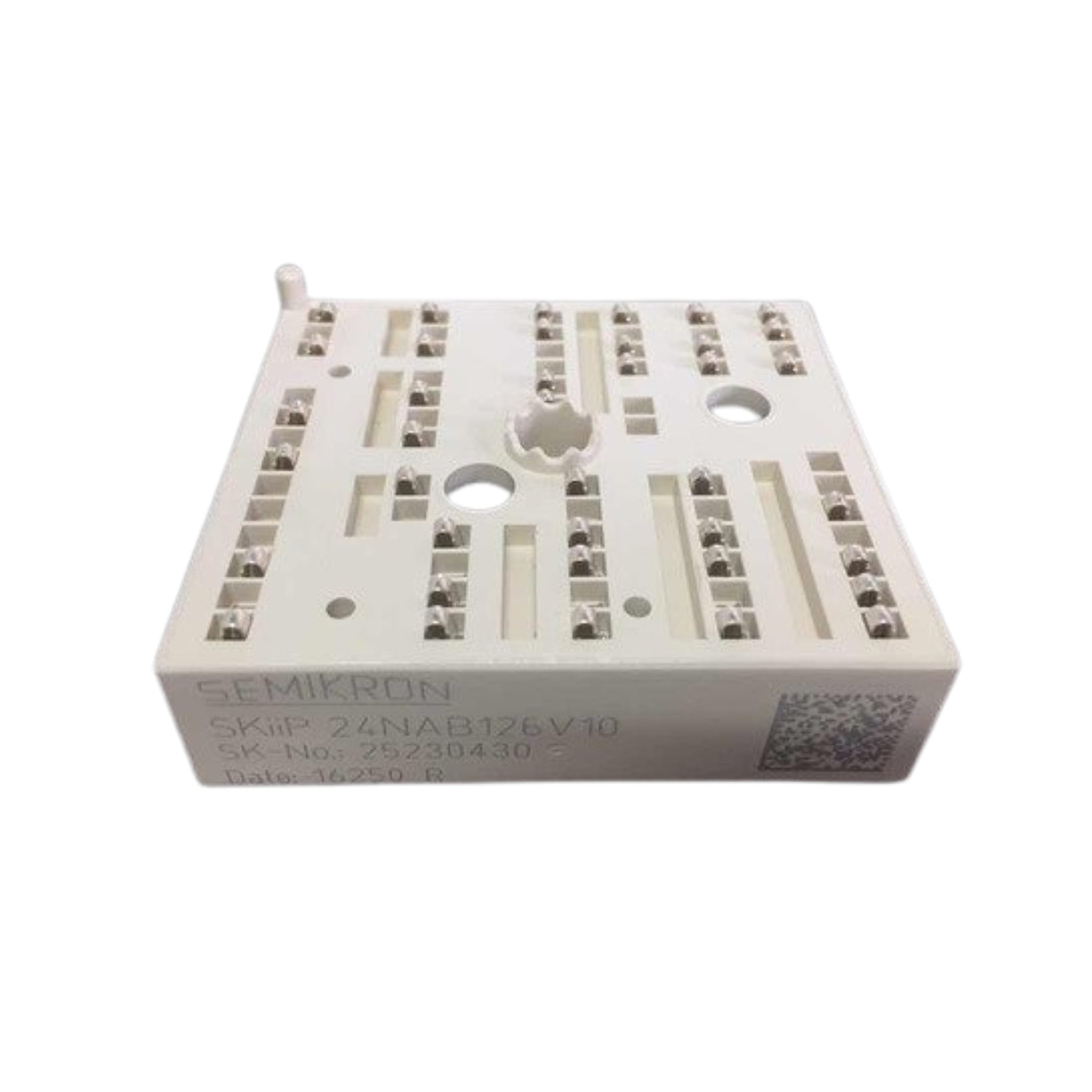

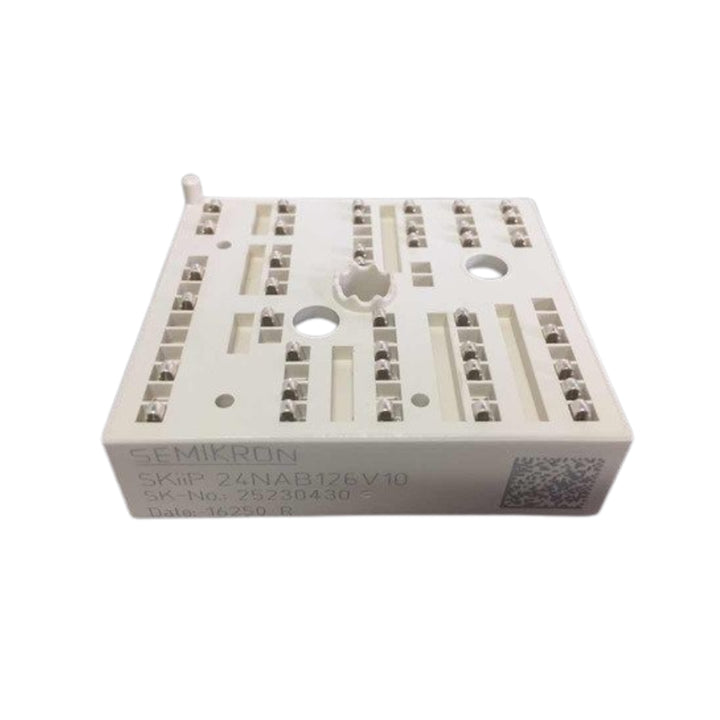

Semikron SKiiP 24NAB126V10

Overview

The Semikron SKiiP 24NAB126V10 is a high-performance IGBT power module rated at 150 A and 1200 V, featuring an integrated gate driver. As part of the SKiiP (Semikron Intelligent Integrated Power) series, it is designed for demanding inverter, motor drive, and power conversion applications where efficiency, reliability, and compactness are critical.

Key Features

• Blocking Voltage: 1200 V

• Rated Current: 150 A

• Integrated gate driver circuitry

• Electrically isolated baseplate

• Compact and robust SKiiP design

• Built-in protection and diagnostic functions

• Optimized thermal performance

Technical Specifications

• Module Type: IGBT with Driver

• VCES: 1200 V

• IC: 150 A

• Configuration: 3-phase bridge

• Isolation Voltage: ≥2500 V

• Mounting: Press-fit or screw-mounted

• Cooling: Baseplate-cooled with thermal interface

• Operating Temperature: –40 °C to +125 °C

Applications

• Industrial motor drives

• High-efficiency inverters

• Renewable energy systems

• Power converters

• Automation and robotics

Why Choose the SKiiP 24NAB126V10

• Integrated driver reduces system complexity

• High thermal reliability in a compact format

• Ideal for high-power industrial applications

• Backed by trusted Semikron SKiiP technology

Order Now

The Semikron SKiiP 24NAB126V10 IGBT power module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
