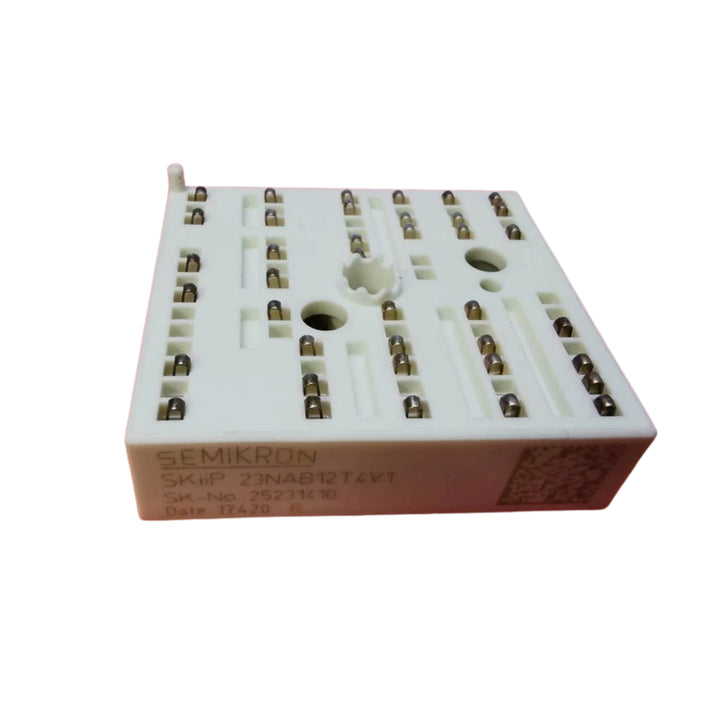

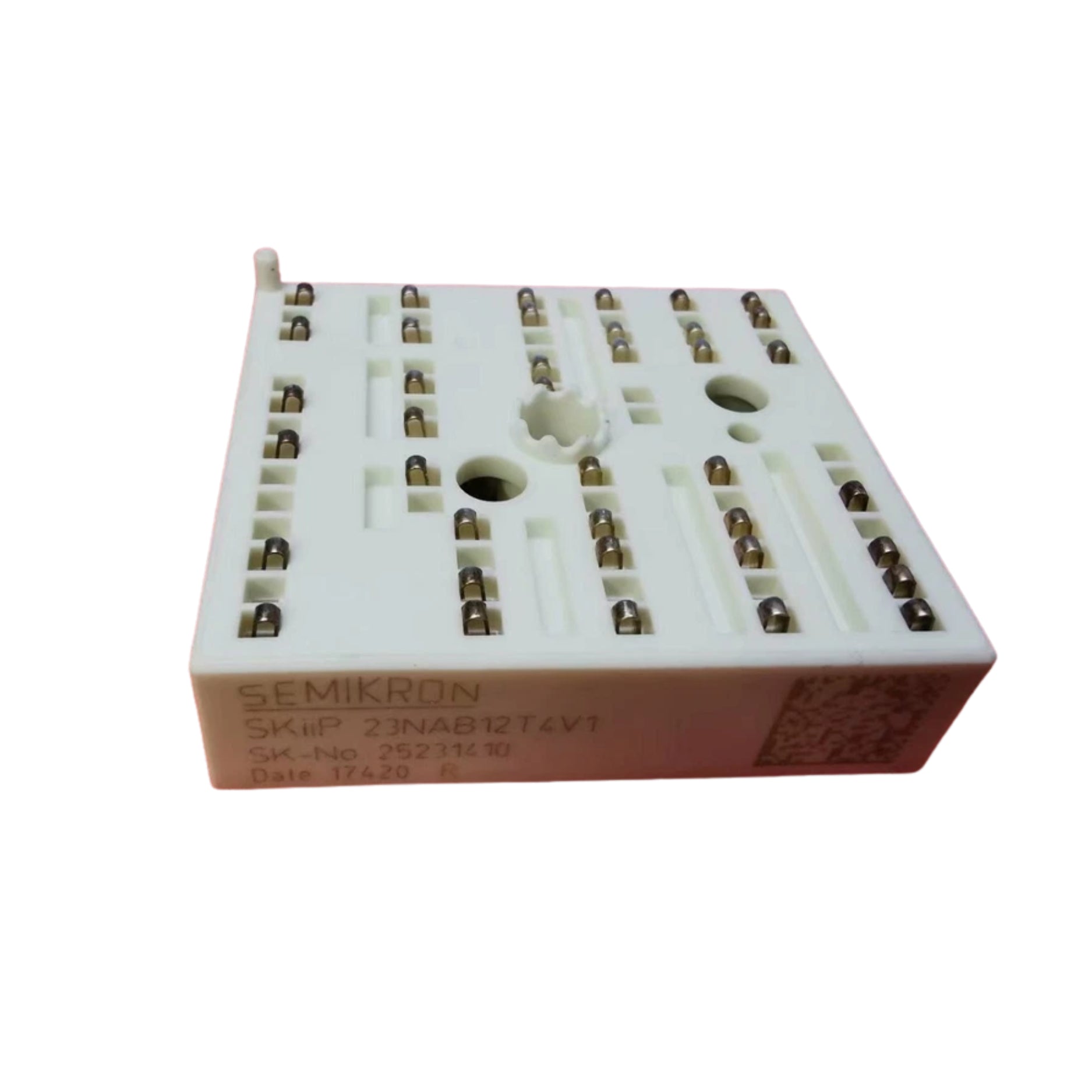

Semikron SKiiP 23NAB12T4V1

Semikron SKiiP 23NAB12T4V1

Overview

The Semikron SKiiP 23NAB12T4V1 is a high-performance IGBT power module with integrated driver circuitry, rated at 140 A and 1200 V. This module belongs to the SKiiP (Semikron Intelligent Integrated Power) family, known for combining powerful IGBT stages and advanced drivers in a compact, efficient design for demanding industrial inverter and converter applications.

Key Features

• Blocking Voltage: 1200 V

• Current Rating: 140 A

• Integrated gate driver circuit

• Press-fit or screwable connection

• Advanced thermal interface material

• SKiiP intelligent power module design

• Suitable for low-inductance layouts

Technical Specifications

• Module Type: IGBT with Driver

• VCES: 1200 V

• IC: 140 A

• Configuration: 3-phase bridge

• Insulation Voltage: ≥2500 V

• Cooling: Baseplate or direct-cooled

• Control: Integrated driver with protection features

• Operating Temperature: –40 °C to +125 °C

Applications

• Industrial motor drives

• Renewable energy inverters

• UPS systems

• Power converters

• Automation and robotics

Why Choose the SKiiP 23NAB12T4V1

• Combines power module and driver in one

• Reduces complexity and increases reliability

• Suitable for compact, high-efficiency systems

• Backed by Semikron’s innovation in power electronics

Order Now

The Semikron SKiiP 23NAB12T4V1 IGBT module with integrated driver is available and ships worldwide.
