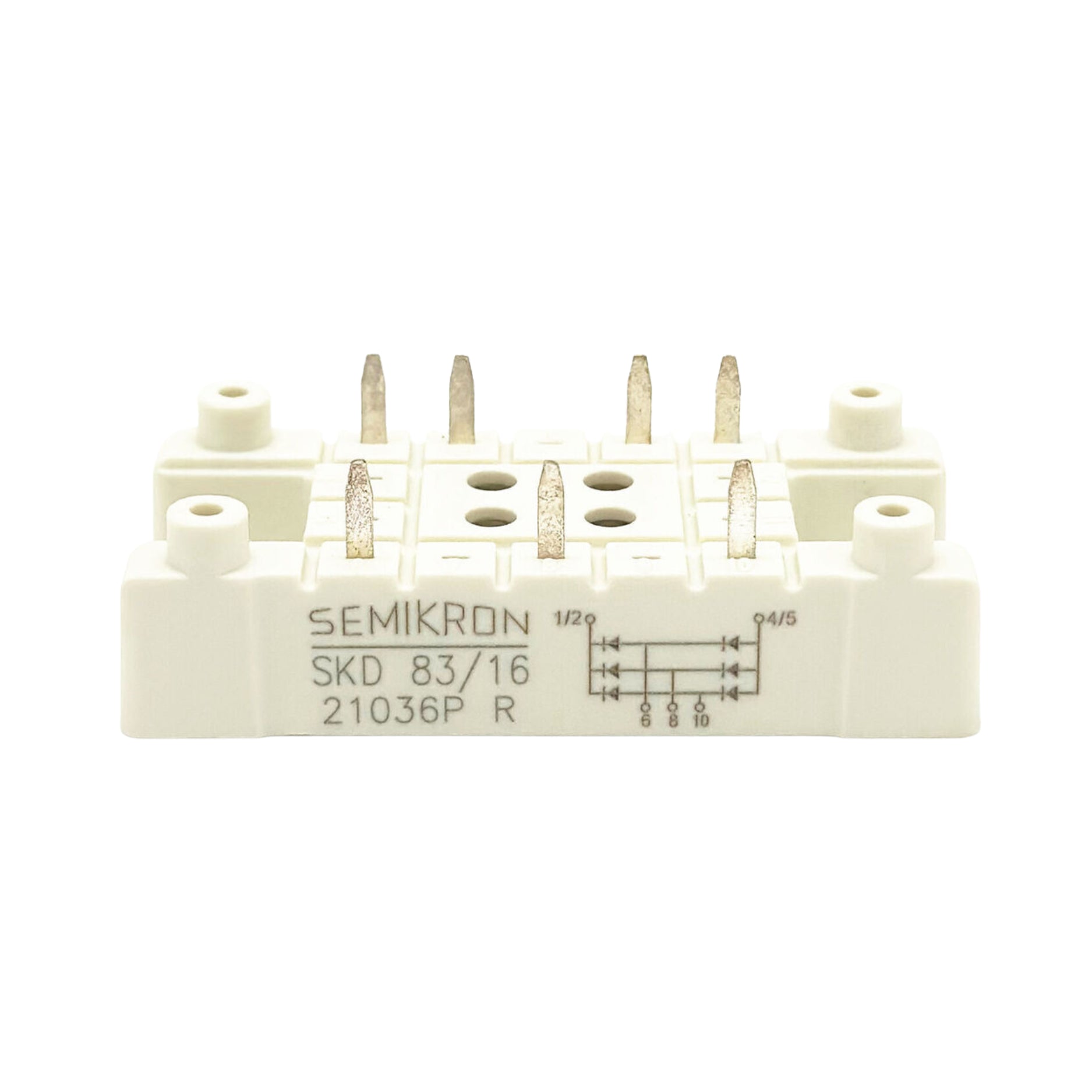

Semikron SKD 83/16

Semikron SKD 83/16

Overview

The Semikron SKD 83/16 is a high-power three-phase bridge rectifier module rated for 82 A and up to 1600 V reverse voltage. Engineered for industrial-grade performance, it offers high surge current tolerance and features an isolated baseplate for safe chassis mounting. It is a reliable solution for power conversion in rectifier bridges, variable frequency drives, and DC motor field supplies.

Key Features

• Rated Current: 82 A

• Blocking Voltage: 1600 V

• Electrically isolated baseplate

• High surge current handling

• Three-phase bridge topology

• Screw terminal connections

• UL recognized (varies by lot)

Technical Specifications

• Module Type: Bridge Rectifier

• Topology: Three-phase

• Voltage Rating (VRRM): 1600 V

• Current Rating (IFAV): 82 A

• Surge Current (IFSM): >1000 A (typical)

• Mounting: Chassis mount

• Isolation Voltage: Typically 2500 V RMS

• Housing: Isolated case

• Cooling: Passive via heatsink/chassis

Applications

• Input rectifiers for variable frequency drives (VFDs)

• DC motor field supply rectifiers

• Battery charger circuits

• General industrial power supplies

Why Choose the SKD 83/16

• High current capacity in a compact form

• Robust isolation and mechanical reliability

• Proven Semikron quality for power control systems

• Easy integration into power electronics designs

Order Now

The Semikron SKD 83/16 bridge rectifier module is available and ships globally for fast, efficient power conversion applications.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
