Semikron SEMiX303GD12E4c

Semikron SEMiX303GD12E4c

Overview

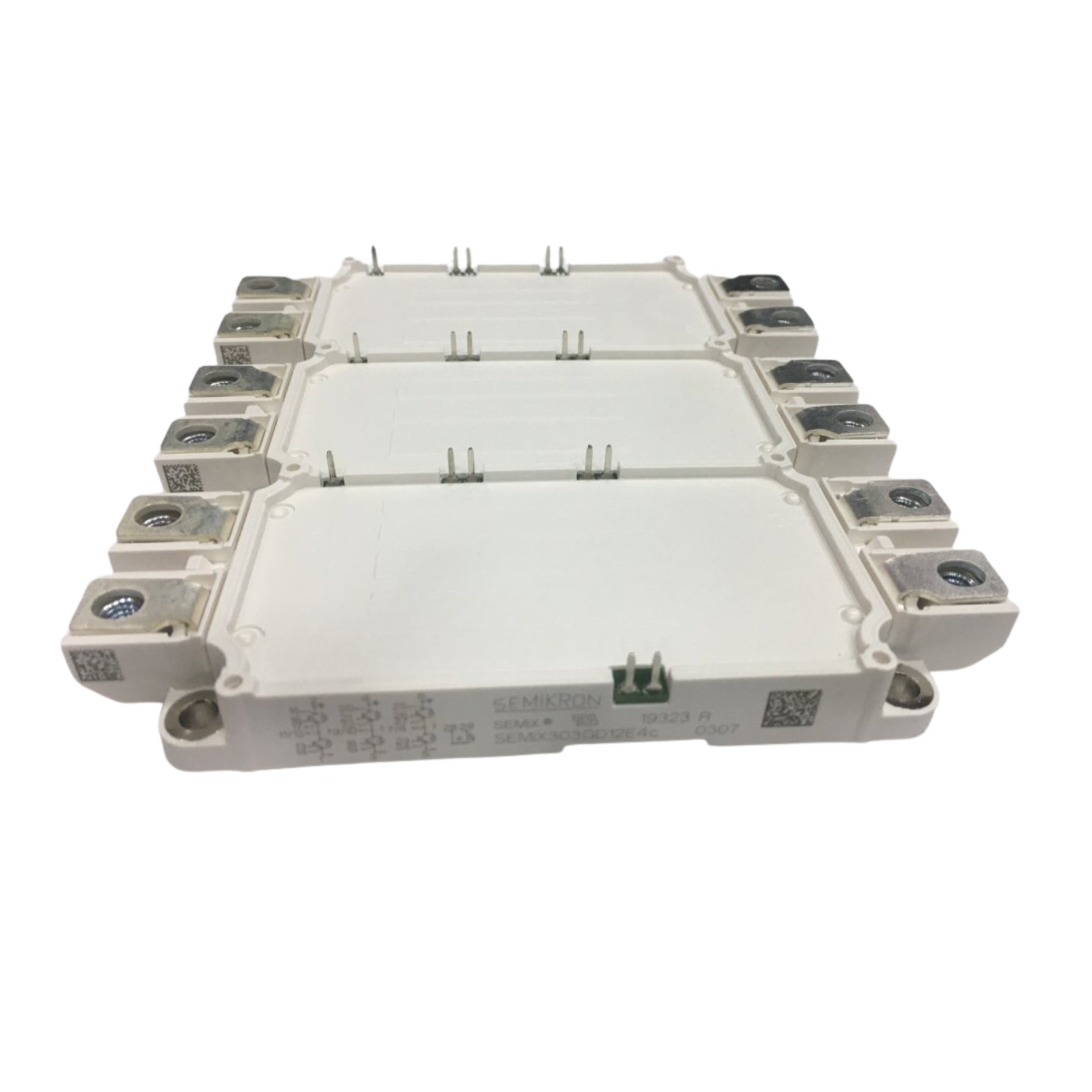

The Semikron SEMiX303GD12E4c is a high-performance IGBT module designed for demanding industrial applications. Rated at 303 A and 1200 V, it delivers efficient energy switching with low thermal resistance and high reliability. Its SEMiX package supports easy integration into compact power electronic systems.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 303 A

• Low switching losses

• Integrated free-wheeling diodes

• Standardized SEMiX footprint

• Press-fit pin technology

• Low thermal resistance

• High reliability for industrial use

Technical Specifications

• Module Type: IGBT

• Configuration: Dual IGBT

• VCES: 1200 V

• IC: 303 A

• Package: SEMiX

• Mounting: PCB with press-fit pins

• Insulation Voltage: ≥2500 V RMS

• Operating Temperature: –40 °C to +150 °C

• Application Class: Industrial

Applications

• Industrial motor drives

• AC inverters

• Renewable energy systems

• Power supplies

• UPS systems

Why Choose the SEMiX303GD12E4c

• High current and voltage capacity in compact form

• Optimized for thermal and electrical efficiency

• Proven Semikron build quality

• Seamless integration in industrial inverter designs

Order Now

The Semikron SEMiX303GD12E4c IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
