Semikron Semix151GD066HDS

Semikron Semix 151GD066HDS

Overview

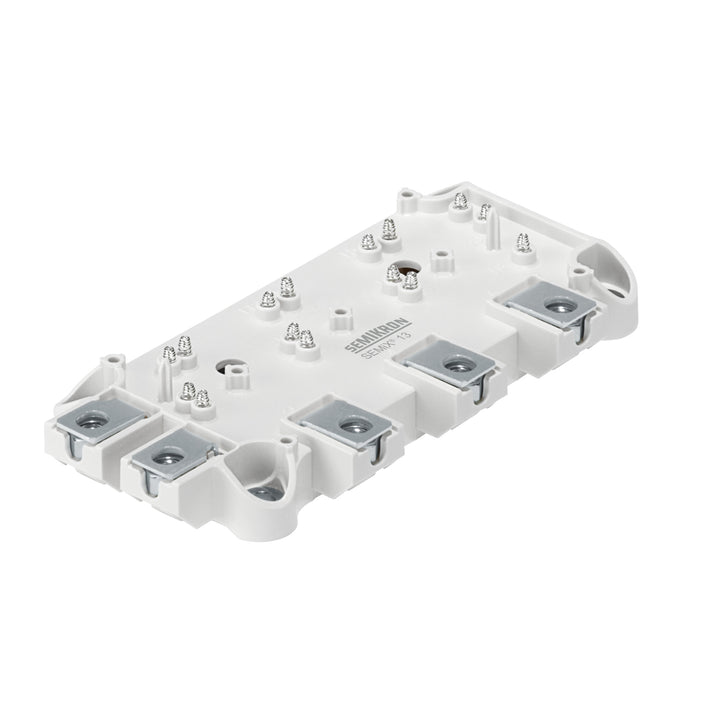

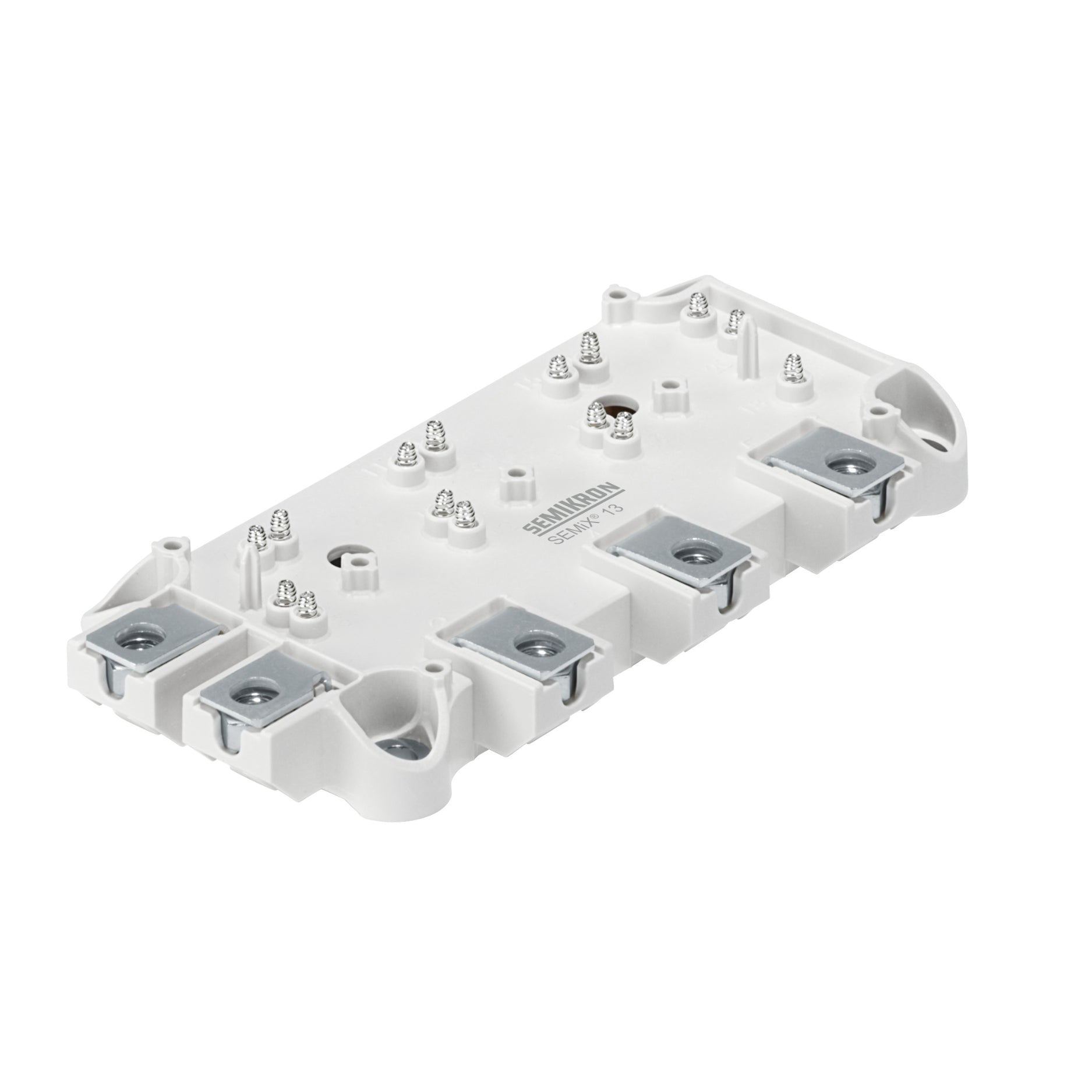

The Semikron Semix 151GD066HDS is a six-pack IGBT module rated at 150 A and 1200 V, built into the compact SEMiX 13 housing. It integrates six IGBT switches and freewheeling diodes in a single module, enabling space-efficient and thermally optimized three-phase inverter designs. Ideal for demanding industrial applications, this module offers low conduction losses, high switching performance, and robust thermal cycling.

Key Features

• Blocking Voltage: 1200 V

• Continuous Collector Current: 150 A

• Six-pack topology (3-phase bridge)

• Low VCE(sat) for reduced losses

• Electrically isolated baseplate

• SEMiX 13 compact form factor

• High thermal and power cycling capability

Technical Specifications

• Module Type: Six-Pack IGBT

• VCES: 1200 V

• IC: 150 A

• Configuration: Three-phase inverter

• Isolation Voltage: ≥2500 V RMS

• Case Style: SEMiX 13

• Mounting: Baseplate for heatsink integration

• Operating Temperature: –40 °C to +150 °C

• Reverse Diode Included: Yes

Applications

• Industrial motor drives

• Inverter and converter systems

• Renewable energy inverters

• UPS and power backup systems

• Power supplies and automation

Why Choose the Semix 151GD066HDS

• Integrated six-pack topology reduces component count

• Compact and efficient thermal design

• Suitable for high-performance inverter platforms

• Trusted Semikron quality for demanding applications

Order Now

The Semikron Semix 151GD066HDS IGBT module is available and ships worldwide.
