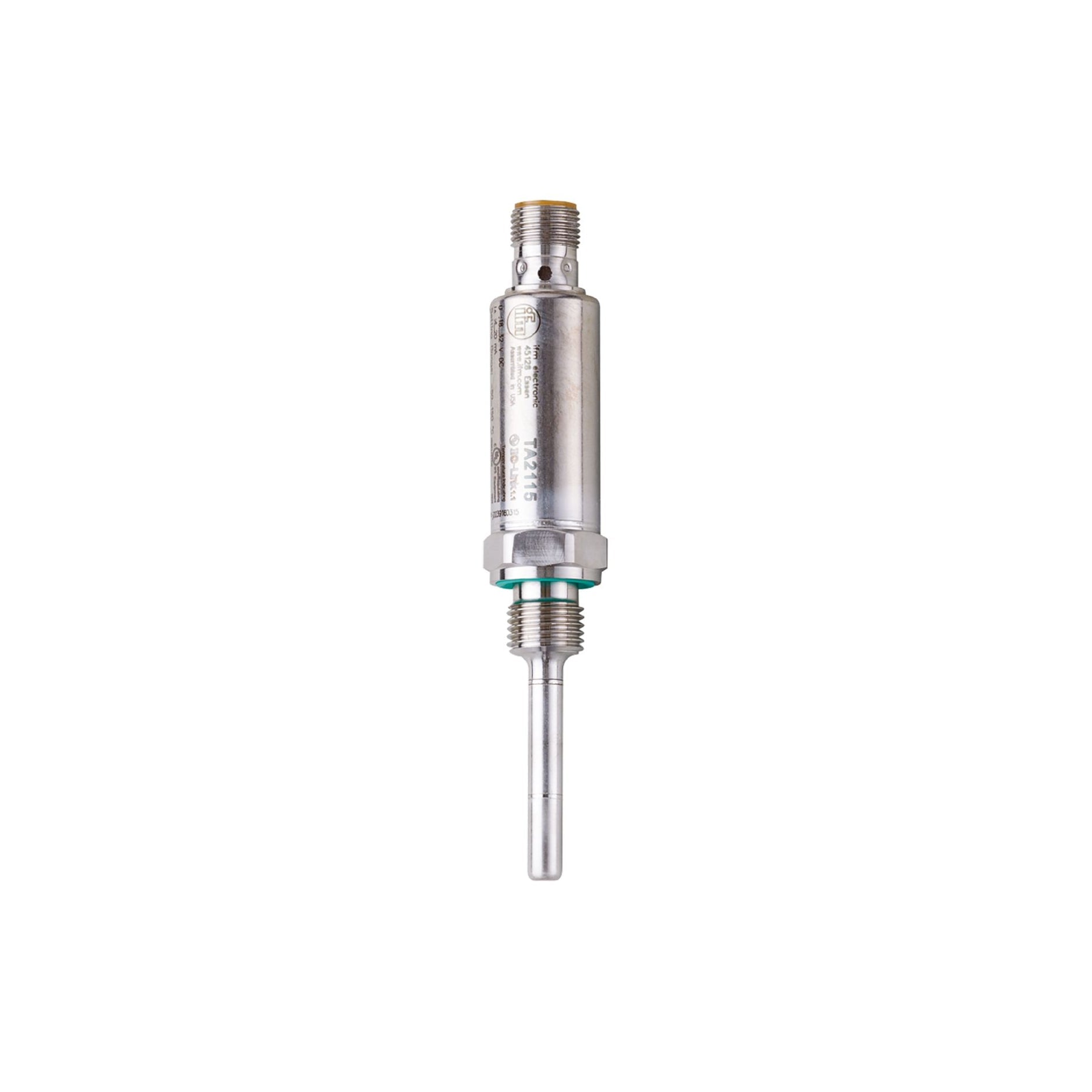

ifm TA2115 | IO-Link Temperature Sensor, –50 to 150 °C, G 1/4"

ifm TA2115 | IO-Link Temperature Sensor with G 1/4" Process Connection

Overview

The ifm TA2115 is a compact electronic temperature sensor with a measuring range of –50 to 150 °C, featuring IO-Link communication and a G 1/4" process connection. Designed for fast and precise temperature monitoring in industrial automation, it delivers accurate data through digital and analog outputs for applications involving liquids and gases.

With robust stainless steel construction, an M12 connector, and IP67 protection, the TA2115 is ideal for use in hydraulic systems, machine tools, food processing, and more.

Key Features

• Measuring Range: –50 to +150 °C

• IO-Link Enabled – For smart diagnostics, configuration, and monitoring

• Output: IO-Link + Analog (4–20 mA) or Switching Output

• Compact Design – Easy to install in tight spaces

• Process Connection: G 1/4" male (DIN EN ISO 1179-2)

• Robust Stainless Steel Housing – Ideal for harsh environments

• M12 Connector – Standard 4-pin electrical connection

• Protection Rating: IP67

Technical Specifications

• Model: TA2115

• Temperature Range: –50…+150 °C

• Output Type: IO-Link / Analog (4–20 mA) / Switching output (configurable)

• Response Time (T05 / T09): ~1.8 s / ~5 s

• Process Connection: G 1/4"

• Sensor Type: Pt1000 (class A)

• Power Supply: 18–30 VDC

• Electrical Connection: M12 connector, 4-pin

• Material: Stainless steel (1.4404 / 316L), PEEK tip

• Protection Rating: IP67

• Operating Pressure: Up to 400 bar

• Standards: CE, cULus

Applications

• Hydraulics & Pneumatics – Monitor fluid temperatures in closed loops

• Food & Beverage Processing – Washdown-capable with stainless steel body

• OEM Machinery – Compact sensor fits in confined equipment designs

• General Industrial Automation – Accurate real-time temperature feedback

Why Choose the ifm TA2115?

• Compact and highly accurate for industrial temperature monitoring

• Smart IO-Link capabilities for Industry 4.0 integration

• Durable and hygienic design for demanding applications

Order Now

In stock and ready for global shipping. IO-Link masters, M12 cables, and mounting adapters available separately.
