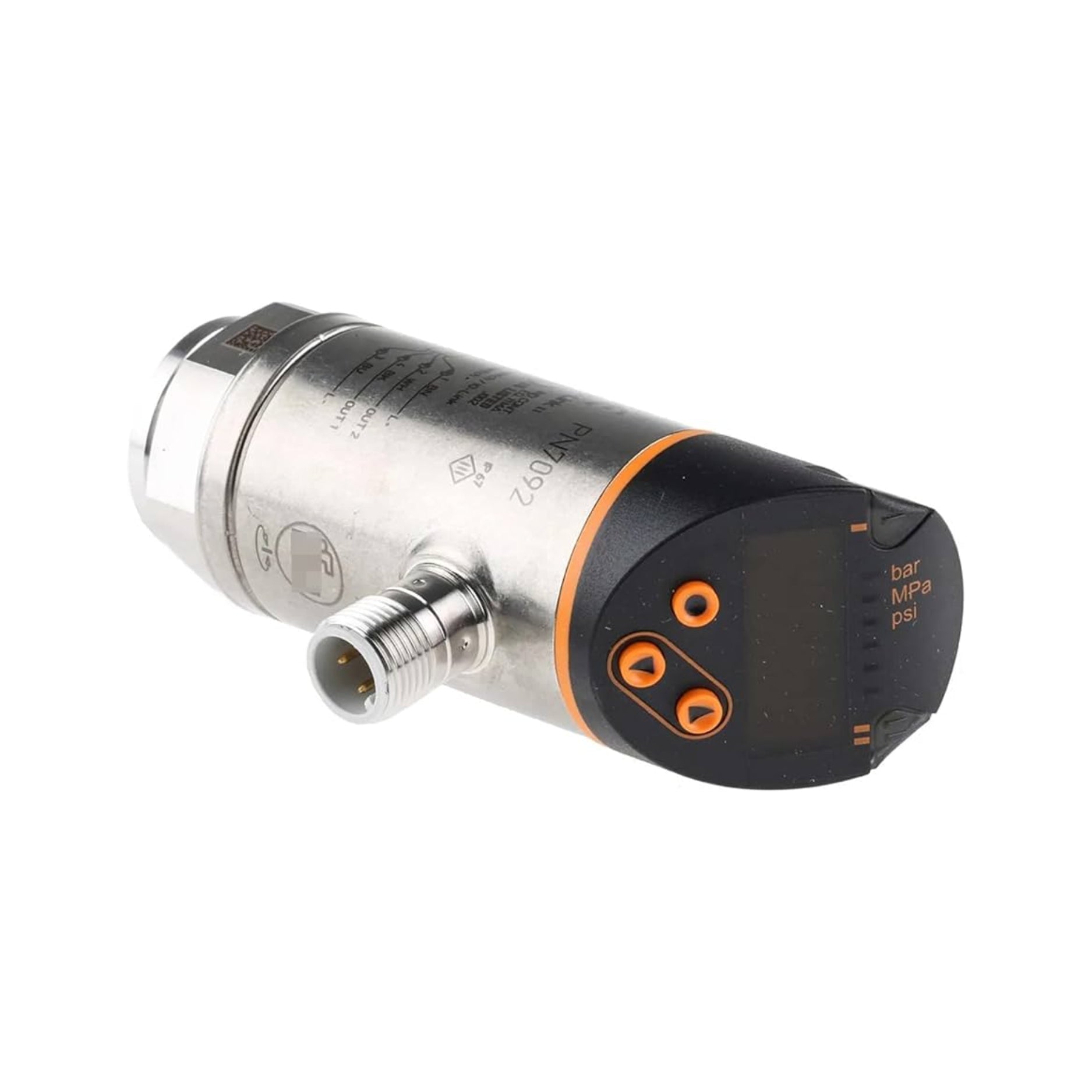

ifm PN7092 | Pressure Sensor 0–100 bar, G 1/4", Dual PNP Outputs

ifm PN7092 | 0–100 bar Electronic Pressure Sensor with LED Display and PNP Outputs

Overview

The ifm PN7092 is a high-performance electronic pressure sensor designed for monitoring pressure in liquids and gases across a 0–100 bar range. Featuring a G 1/4" process connection, two PNP switching outputs, and a rotatable LED display, the PN7092 offers reliable pressure monitoring and control in industrial environments.

Engineered for fast response, durability, and ease of setup, this sensor is ideal for hydraulic systems, pump monitoring, and general automation where precise pressure measurement is critical.

Key Features

• Measuring Range: 0–100 bar (gauge pressure)

• 2 × PNP Outputs – For flexible control or alarms

• G 1/4" Process Connection – Common industrial thread type

• Rotatable LED Display – Bright, clear, and configurable for easy viewing

• Push-Button Programming – Simple setup without external tools

• Robust Housing – Stainless steel with IP67 protection

• High Shock and Vibration Resistance

Technical Specifications

• Model: PN7092

• Measuring Range: 0–100 bar

• Output Type: 2 × PNP, Normally Open

• Process Connection: G 1/4" (DIN EN ISO 1179-2)

• Accuracy: ±0.5% of full scale

• Display: 4-digit 7-segment LED, 2-color, rotatable

• Response Time: ≤2 ms

• Electrical Connection: M12 connector, 4-pin

• Operating Temperature: –25 to +80 °C

• Medium Compatibility: Liquids and gases

• Power Supply: 18–30 VDC

• Protection Rating: IP67

• Housing Material: Stainless steel (wetted parts), PBT body

• Approvals: CE, cULus

Applications

• Hydraulic & Pneumatic Systems – Monitor system pressure in real-time

• Pump Monitoring – Detect pressure drops or overpressure

• Machine Tools – Pressure feedback for fluid control

• Automation Equipment – Digital pressure control with easy integration

Why Choose the ifm PN7092?

• Wide-range pressure detection up to 100 bar

• Dual PNP outputs for flexible control logic

• Durable, compact, and user-friendly interface

Order Now

Available and in stock for fast global delivery. Cables, mounting adapters, and accessories sold separately.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
