ifm PN2094 | Electronic Pressure Sensor 0–10 bar, G 1/4", PNP

ifm PN2094 | 0–10 bar Electronic Pressure Sensor with Display and Dual PNP Outputs

Overview

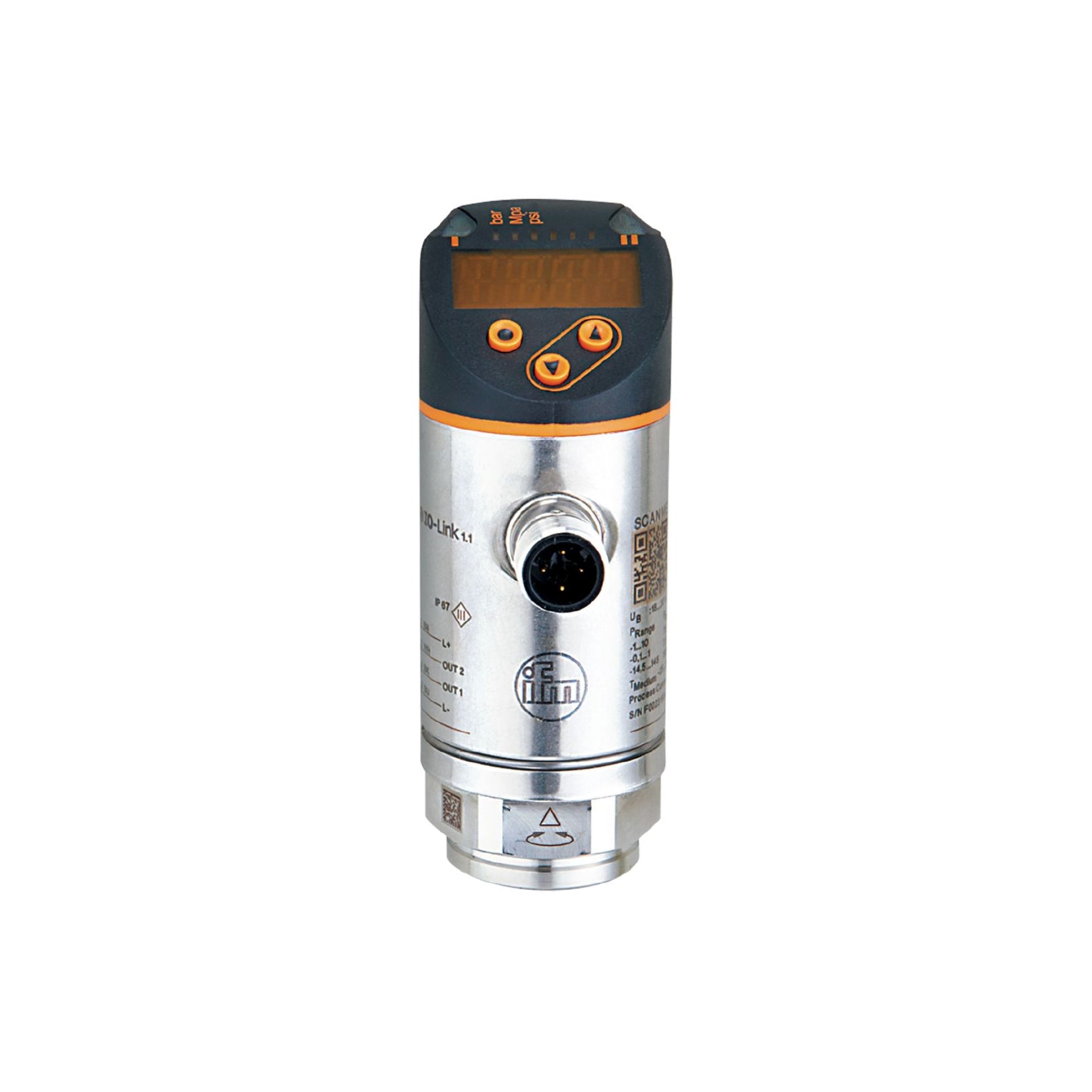

The ifm PN2094 is a robust electronic pressure sensor with a 0–10 bar measuring range, G 1/4" process connection, and two PNP switching outputs. It features a rotatable 4-digit LED display, making it ideal for both local readout and electronic control in a wide range of hydraulic, pneumatic, and general automation applications.

Built with a compact housing, high-pressure resistance, and IP67 protection, the PN2094 offers fast response, high repeatability, and easy setup using intuitive push-button controls.

Key Features

• Measuring Range: 0–10 bar (gauge pressure)

• 2 PNP Switching Outputs – For dual control or alarms

• G 1/4" Process Connection – Standard threaded design

• LED Display (Rotatable) – Clear, real-time pressure readout

• Compact & Durable Housing – IP67-rated for harsh environments

• Quick Setup – Easy configuration with push-buttons

• Excellent Shock and Vibration Resistance

Technical Specifications

• Model: PN2094

• Measuring Range: 0–10 bar

• Output Type: 2 × PNP, Normally Open

• Process Connection: G 1/4" male

• Accuracy: ±0.5% of span

• Display: 4-digit 7-segment LED (rotatable)

• Power Supply: 18–30 VDC

• Electrical Connection: M12 connector, 4-pin

• Operating Temperature: –25 to +80 °C

• Medium Compatibility: Liquids and gases

• Protection Rating: IP67

• Housing Material: Stainless steel and PBT

• Response Time: ≤2 ms

• Approvals: CE, cULus

Applications

• Hydraulic & Pneumatic Systems – Real-time pressure feedback

• Pump and Compressor Monitoring – Reliable setpoint-based control

• OEM Machinery – Compact and programmable for integration

• General Factory Automation – Pressure monitoring and process control

Why Choose the ifm PN2094?

• Reliable pressure monitoring with dual control outputs

• Easy to install and configure with rotatable LED display

• Compact and IP67-rated for long-term industrial use

Order Now

In stock and ready to ship worldwide. Compatible M12 cables and mounting adapters sold separately.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
