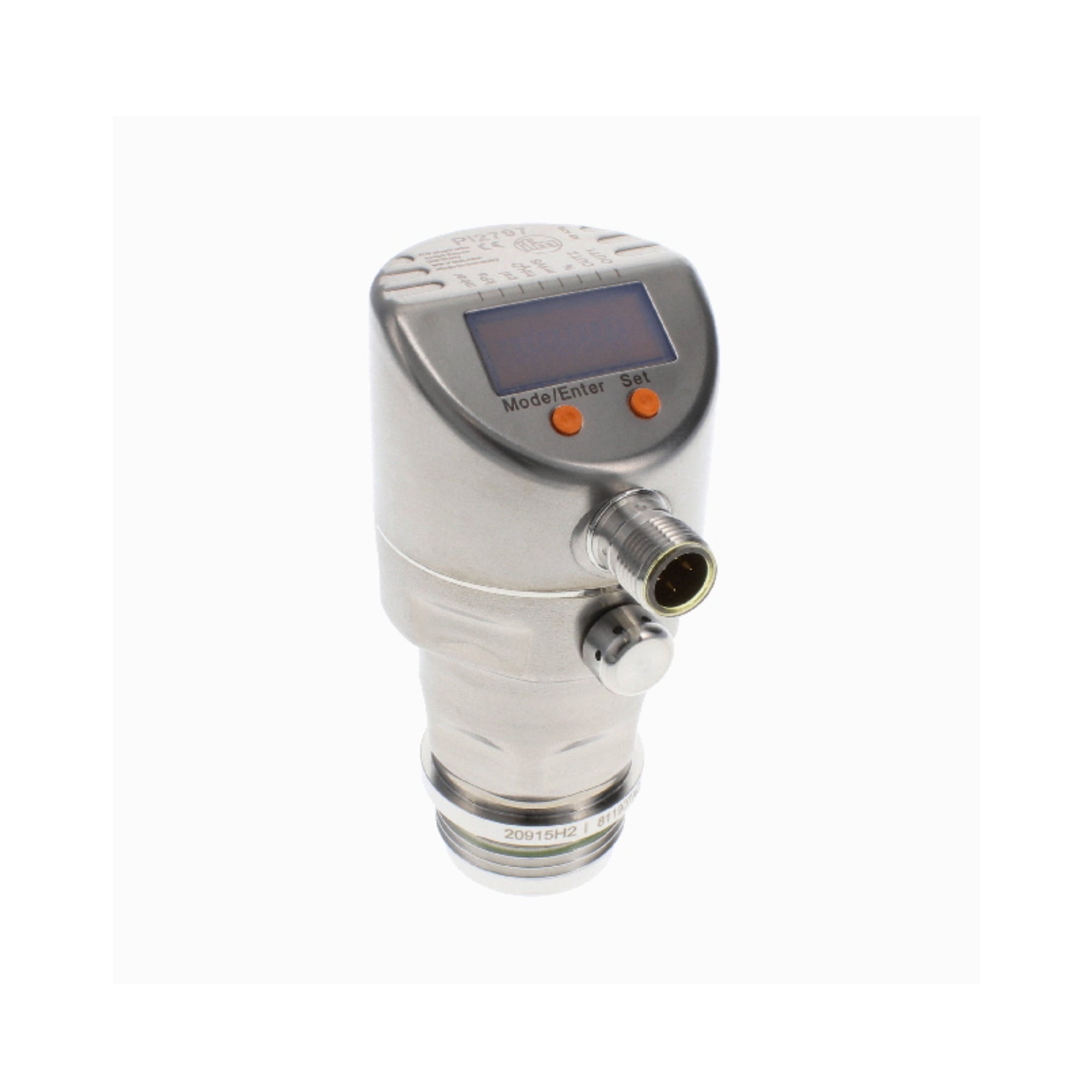

ifm PI2797 | IO-Link Pressure Sensor 0–10 bar, G 1/4", PNP Output

ifm PI2797 | IO-Link Pressure Sensor with Display and Dual PNP Outputs (0–10 bar)

Overview

The ifm PI2797 is a compact and highly accurate electronic pressure sensor with a measuring range of 0–10 bar, a G 1/4" process connection, and IO-Link communication. Equipped with a rotatable alphanumeric LED display, this sensor offers intuitive configuration and real-time pressure feedback for monitoring liquids and gases in industrial automation and process control.

Designed for durability and versatility, the PI2797 is ideal for systems that require advanced communication, dual PNP switching outputs, and precise pressure control.

Key Features

• Measurement Range: 0–10 bar (gauge pressure)

• Output Configuration: 2 × PNP switching outputs + IO-Link

• Display: 2-color alphanumeric LED (rotatable)

• IO-Link Support: Remote setup, diagnostics, and data communication

• G 1/4" Process Connection – Industry standard for easy integration

• Compact Design – Fits into tight machine spaces

• IP67 Protection – Resistant to water and dust

• Push-Button Setup – Quick installation and configuration

Technical Specifications

• Model: PI2797

• Measuring Range: 0 to 10 bar

• Output Type: 2 × PNP (switching) + IO-Link

• Accuracy: ±0.5% of span

• Response Time: < 2 ms

• Process Connection: G 1/4" male (DIN EN ISO 1179-2)

• Electrical Connection: M12 connector, 4-pin

• Operating Temperature: –25 to +80 °C

• Medium Compatibility: Liquids and gases

• Housing Material: Stainless steel and PBT

• Protection Rating: IP67

• Standards: CE, cULus

Applications

• Industrial Automation – Pressure monitoring with advanced diagnostics

• Pumps and Compressors – Prevent overpressure or failure

• Cooling and Fluid Systems – Maintain proper operating pressure

• OEM Machine Design – Compact and future-ready with IO-Link

Why Choose the ifm PI2797?

• IO-Link-enabled for smart factory integration

• High accuracy and fast response time

• Versatile for water, air, oils, and other fluids

Order Now

In stock and ready for immediate global shipment. IO-Link masters, cables, and accessories available separately.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
