ifm PI2795 | IO-Link Pressure Sensor 0–25 bar, G 1/4", PNP Output

ifm PI2795 | 0–25 bar Pressure Sensor with IO-Link and Dual PNP Outputs

Overview

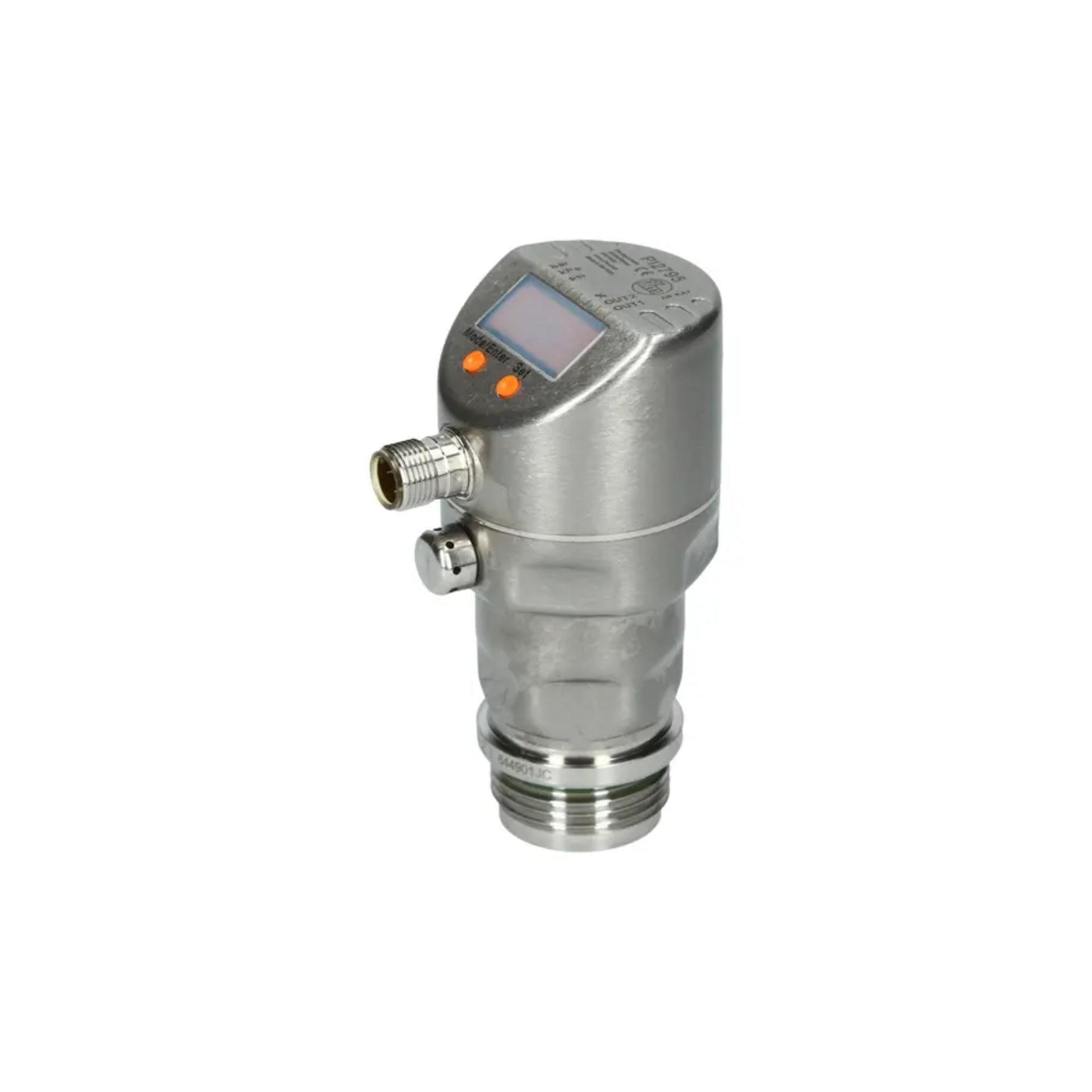

The ifm PI2795 is a digital pressure sensor with a 0–25 bar measuring range, built for monitoring liquids and gases in industrial environments. With IO-Link communication, two PNP switching outputs, and a rotatable LED display, the PI2795 ensures accurate pressure monitoring, easy integration, and fast setup for a wide range of automation and process applications.

Its G 1/4" process connection, IP67 protection, and stainless steel wetted parts make it ideal for demanding conditions in OEM machines, hydraulic systems, and fluid handling equipment.

Key Features

• Measuring Range: 0 to 25 bar (gauge pressure)

• Outputs: 2 × PNP switching outputs + IO-Link

• Display: Rotatable 2-color alphanumeric LED

• G 1/4" Process Connection – Standard industrial threading

• Push-Button Programming – Easy setup without tools

• IO-Link Ready – Enables remote parameter setting and diagnostics

• Rugged Construction – IP67-rated for harsh environments

• Fast Response Time – < 2 ms

Technical Specifications

• Model: PI2795

• Output Type: 2 × PNP (switching) + IO-Link

• Accuracy: ±0.5% of span

• Process Connection: G 1/4" male (DIN EN ISO 1179-2)

• Electrical Connection: M12 connector (4-pin)

• Power Supply: 18–30 VDC

• Medium Compatibility: Liquids and gases

• Housing Material: Stainless steel (wetted parts), PBT body

• Operating Temperature: –25 to +80 °C

• Protection Rating: IP67

• Certifications: CE, cULus

Applications

• Hydraulics and Pneumatics – Pressure feedback for system control

• Pump Monitoring – Prevent damage from pressure spikes

• OEM Machinery – Compact, flexible sensor integration

• Industrial Fluid Control – Accurate monitoring of process pressure

Why Choose the ifm PI2795?

• Reliable pressure detection with dual outputs and IO-Link

• Easy to install and configure

• Compact, rugged design built for industrial use

Order Now

Available and in stock for fast global delivery. IO-Link masters, cables, and mounting accessories available separately.
