ifm PI2794 | IO-Link Pressure Sensor, G 1/4", PNP, 0–10 bar

ifm PI2794 | IO-Link Pressure Sensor with PNP Output for 0–10 bar Applications

Overview

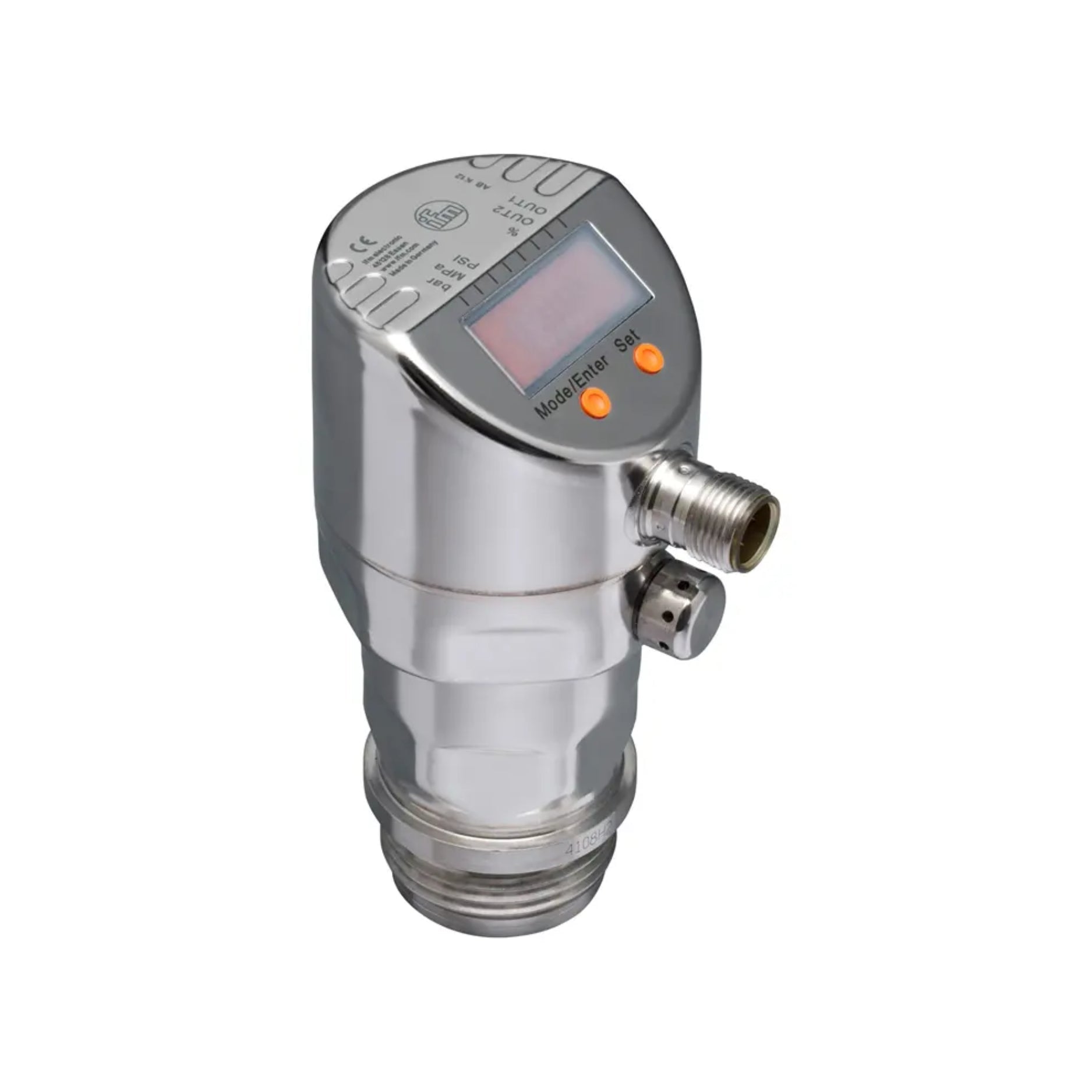

The ifm PI2794 is a digital pressure sensor with a 0–10 bar measuring range, designed for monitoring liquids and gases in industrial automation and process systems. It features a G 1/4" process connection, IO-Link communication, and a 2-line alphanumeric display for easy local monitoring and setup.

Engineered for long-term stability and durability, the PI2794 supports both analog and digital outputs, making it ideal for modern control systems that require flexibility, accuracy, and reliable communication.

Key Features

• Measuring Range: 0 to 10 bar (gauge pressure)

• Output Configuration: 2 switching outputs (PNP) + IO-Link

• Display: 2-color alphanumeric LED display (rotatable)

• Process Connection: G 1/4" male (DIN EN ISO 1179-2)

• IO-Link Support: Enables remote configuration and diagnostics

• High Accuracy and Repeatability

• Robust Stainless Steel Housing – Resistant to aggressive fluids and pressure spikes

• Easy Mounting and Setup – Rotatable display and push-button interface

• Protection Class: IP67

Technical Specifications

• Model: PI2794

• Pressure Range: 0–10 bar (gauge)

• Output Type: 2 × PNP switching outputs + IO-Link

• Process Connection: G 1/4"

• Accuracy: ±0.5% of span

• Display: 4-digit LED, 2-color

• Operating Voltage: 18–30 VDC

• Temperature Range: –25 to +80 °C (medium), –25 to +80 °C (ambient)

• Material: Stainless steel (wetted parts), PBT housing

• Electrical Connection: M12 connector, 4-pin

• Protection Rating: IP67

• Communication: IO-Link 1.1

Applications

• Hydraulic and Pneumatic Systems – Monitor pressure in fluid lines

• Water Treatment & Pumps – Ensure system efficiency and avoid overpressure

• Machine Tool Monitoring – Reliable pressure feedback for safety

• OEM Equipment – Compact and configurable for integration

Why Choose the ifm PI2794?

• Modern IO-Link integration with classic PNP outputs

• Accurate and fast-response pressure monitoring

• Compact, robust, and easy to install in any system

Order Now

Available now for fast global shipping. Mating cables, adapters, and IO-Link masters sold separately.
