Mitsubishi GT1685M-STBA

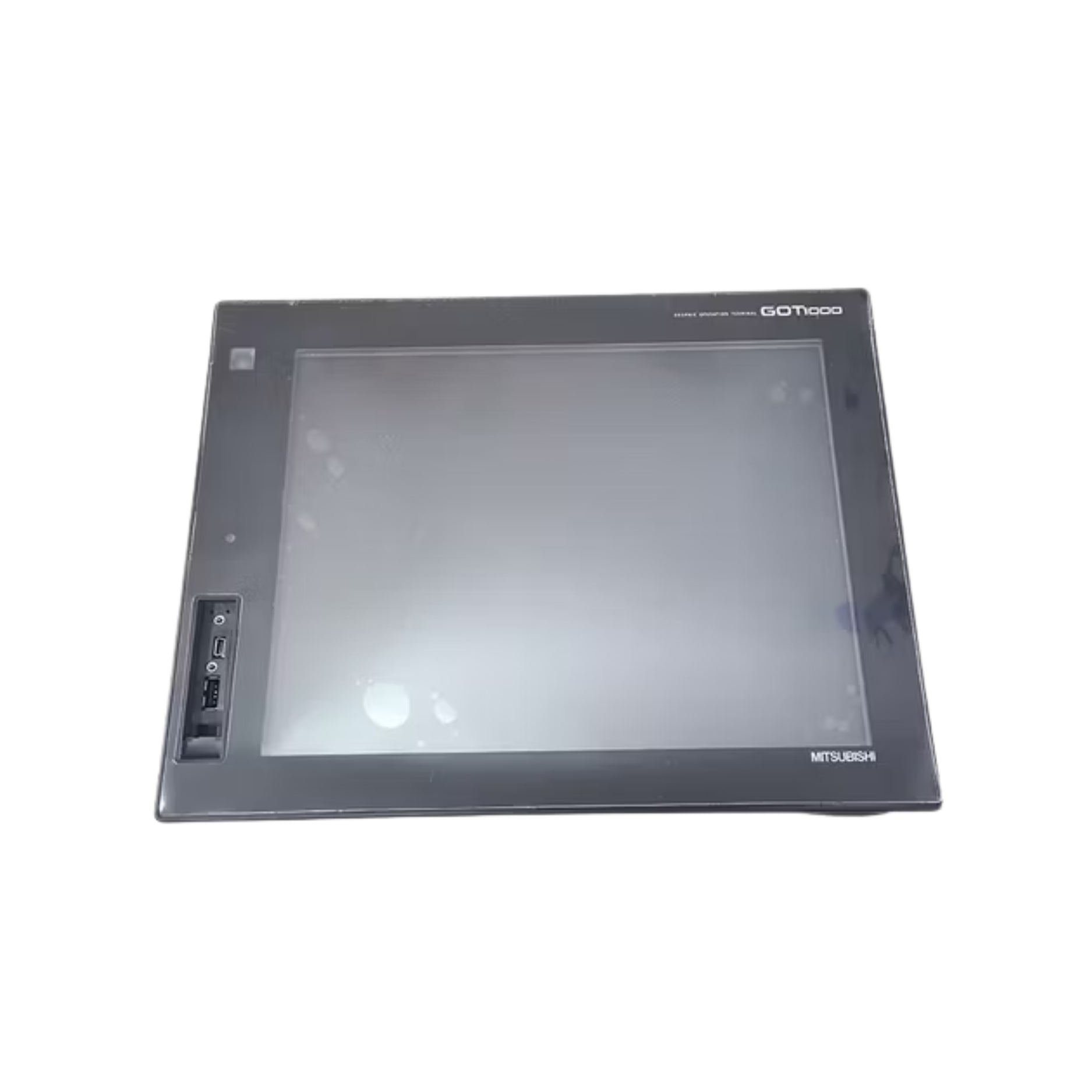

Mitsubishi GT1685M-STBA | 12.1" HMI Touchscreen – GOT1000 GT16 Series

Overview

The Mitsubishi GT1685M-STBA is a high-performance 12.1-inch Human-Machine Interface (HMI) from the GOT1000 GT16 Series, designed for advanced industrial automation applications. Featuring a vibrant TFT LCD display with 800×600 SVGA resolution, it offers enhanced visualization and user interaction capabilities. Equipped with multiple communication interfaces and substantial memory, it ensures seamless integration and efficient operation in complex systems.

Key Features

• Display: 12.1" TFT LCD, 800×600 SVGA resolution, 65,536 colors

• Touchscreen: Analog resistive touch panel

• Memory: 15MB internal memory, expandable via CompactFlash

• Interfaces: Ethernet, RS-232, RS-422/485 serial ports

• Power Supply: 100–240V AC input

• Mounting: Panel mount with IP65 front panel protection

Technical Specifications

• Model: GT1685M-STBA

• Series: GOT1000 GT16

• Display Size: 12.1 inches

• Resolution: 800×600 pixels (SVGA)

• Display Colors: 65,536 colors

• Backlight: LED, approximately 50,000 hours lifespan

• Touch Panel Type: Analog resistive

• Memory Capacity: 15MB internal, expandable via CompactFlash

• Communication Ports: Ethernet, RS-232, RS-422/485

• Power Supply: 100–240V AC

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -20°C to 60°C

• Mounting Method: Panel mount

• Front Panel Protection: IP65

• Dimensions (W×H×D): Approximately 316 × 242 × 52 mm

• Weight: Approximately 2.3 kg

• Certifications: CE, UL, cUL

Applications

• Factory automation systems

• Process control panels

• Machine operation interfaces

• Data monitoring and visualization

• Industrial equipment control

Why Choose the GT1685M-STBA?

• High-Resolution Display: Ensures clear and detailed visualization

• Robust Communication: Multiple interfaces for versatile connectivity

• Expandable Memory: Accommodates complex applications and data logging

• Durable Design: Suitable for harsh industrial environments

• User-Friendly Interface: Enhances operational efficiency

Order Now

The Mitsubishi GT1685M-STBA HMI is available for global shipping.

Return to the Mitsubishi Electric HMI – GOT Series Touch Panels collection for more options in this family.

Explore our full range of Mitsubishi Industrial Automation Products to discover PLCs, HMIs, drives, and motion solutions designed for high performance, connectivity, and flexibility across industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
