Overview

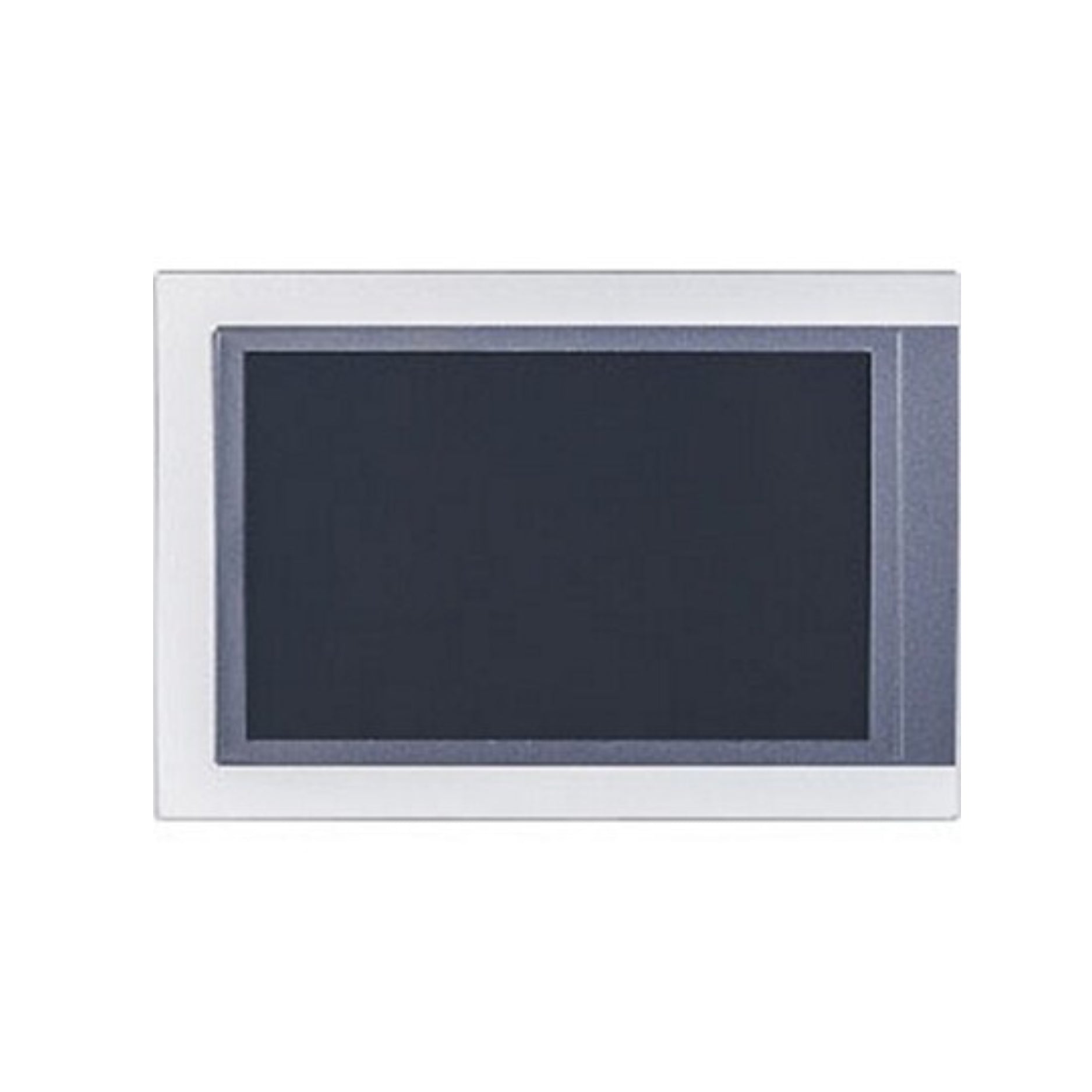

The B&R 5AP1120.101E-000 is a compact 10.1-inch WXGA automation panel built for reliability in harsh industrial settings. Designed for use with AP1000 systems, this model features a 1280 × 800 TFT display, analog resistive touch interface, and robust IP65/UL Type 4X protection. It is also HazLoc (Hazardous Location) certified for environments requiring safety and compliance.

Key Features

• Display: 10.1" WXGA TFT, 1280 × 800 pixels (16:10 aspect)

• Touchscreen: Analog resistive, single-touch

• Color Depth: 16.7 million colors

• Backlight: Long-life LED

• Front Color: Dark gray (RAL 7024)

• Mounting: Landscape, flush control cabinet install

• Certifications:
  – IP65 front
  – UL Type 4X
  – cULus HazLoc approved

• Compatibility: B&R AP1000 Series

Technical Specifications

• Panel Type: Automation display

• Display Size: 10.1 inches

• Resolution: 1280 × 800 (WXGA)

• Touch Technology: Single-touch, analog resistive

• Protection: IP65 / UL Type 4X (front), HazLoc certified

• Orientation: Landscape

• Mounting: Control cabinet flush

• Operating Temperature: 0…+50 °C typical

Applications

• Industrial HMI for machine control

• Visualization in hazardous locations

• Compact automation panel systems

• Indoor control cabinet installations

Why Choose the 5AP1120.101E-000

• High-resolution WXGA in a compact form

• HazLoc and UL Type 4X certified for safety

• Long-lasting LED backlight with vibrant display

• Seamless fit for AP1000 automation setups

• Durable, dustproof, and water-resistant front design

Order Now

The B&R 5AP1120.101E-000 automation panel is available and ships worldwide.
