B&R 4PP420.0571-K15

B&R 4PP420.0571-K15

Overview

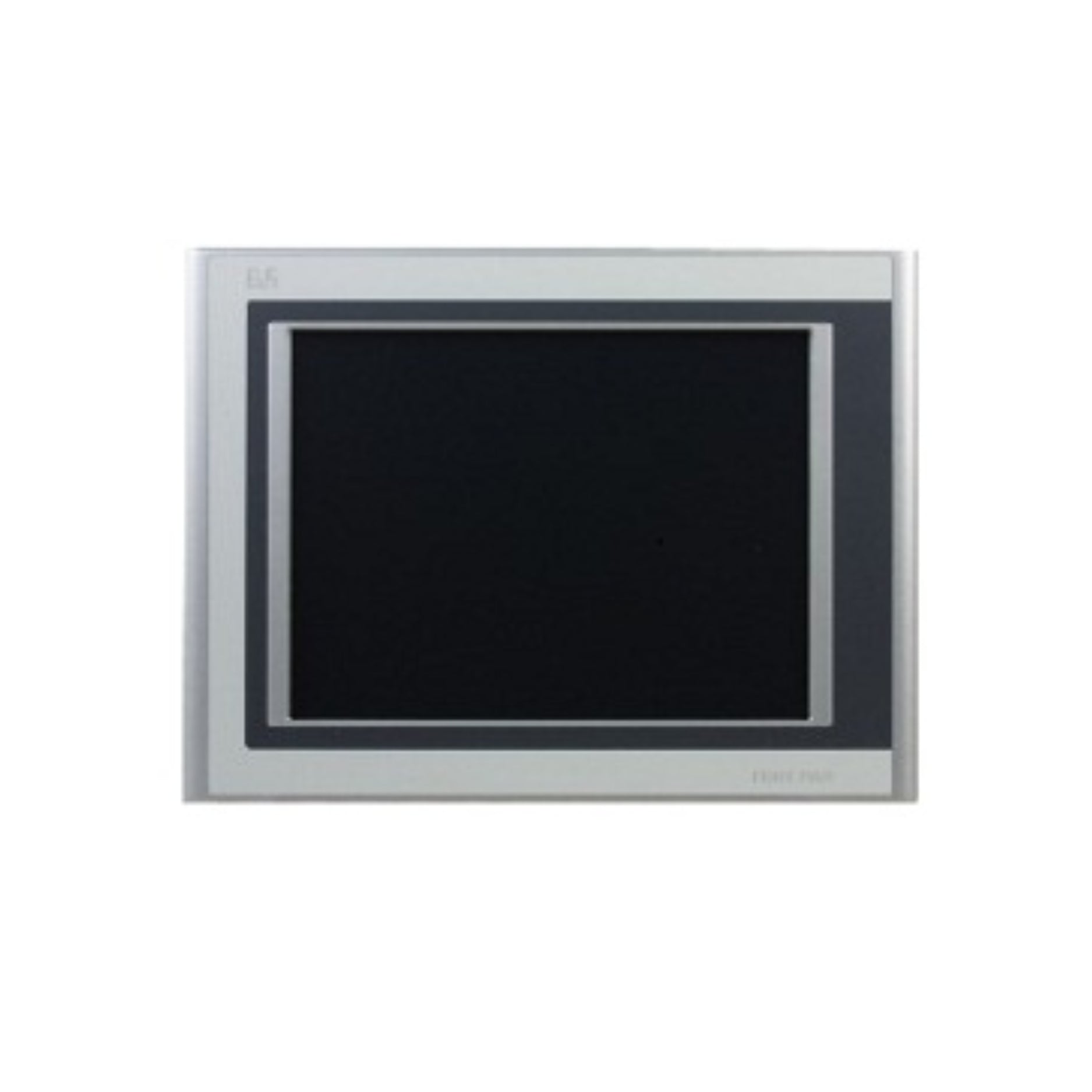

The B&R 4PP420.0571-K15 is a compact industrial panel PC from the Power Panel 400 series, designed for embedded automation control. Featuring a 5.7-inch QVGA TFT LCD display with touchscreen interface, the unit combines visualization and control in one rugged device. Powered by an AMD Geode LX800 processor, this fanless panel PC offers high reliability, low power consumption, and versatile connectivity for demanding industrial applications.

Key Features

• Display: 5.7" QVGA TFT LCD, 320 × 240 pixels, 262k colors

• Touchscreen: Analog resistive single-touch

• CPU: AMD Geode LX800, 500 MHz, 32-bit x86, fanless design

• Memory: 128 MB DDR SDRAM + 2 MB Flash

• Interfaces:
  – 1× PCI slot
  – 1× CF Type I slot
  – 2× USB 2.0 Type A
  – 1× RS-232 (9-pin D-Sub)
  – 1× RJ45 Ethernet

• Automation Runtime boot mode support

• Supply Voltage: 18–30 VDC (24 VDC nominal)

• Protection: IP65 front / NEMA 4X

• Mounting: Landscape flush mount

• Operating Temp: 0…+50 °C

Applications

• Compact automation systems

• HMI with built-in control capability

• Industrial monitoring and diagnostics

• Machine-level visualization and control

Why Choose the 4PP420.0571-K15

• Combines display, touch, and CPU in one unit

• Fanless and low-power design for harsh environments

• Industrial-grade housing with IP65 front protection

• Versatile I/O for communication and expansion

• Trusted reliability from B&R

Order Now

The B&R 4PP420.0571-K15 panel PC is available and ships worldwide.
