Mitsubishi FG6000AU-120D

Mitsubishi FG6000AU-120D

Overview

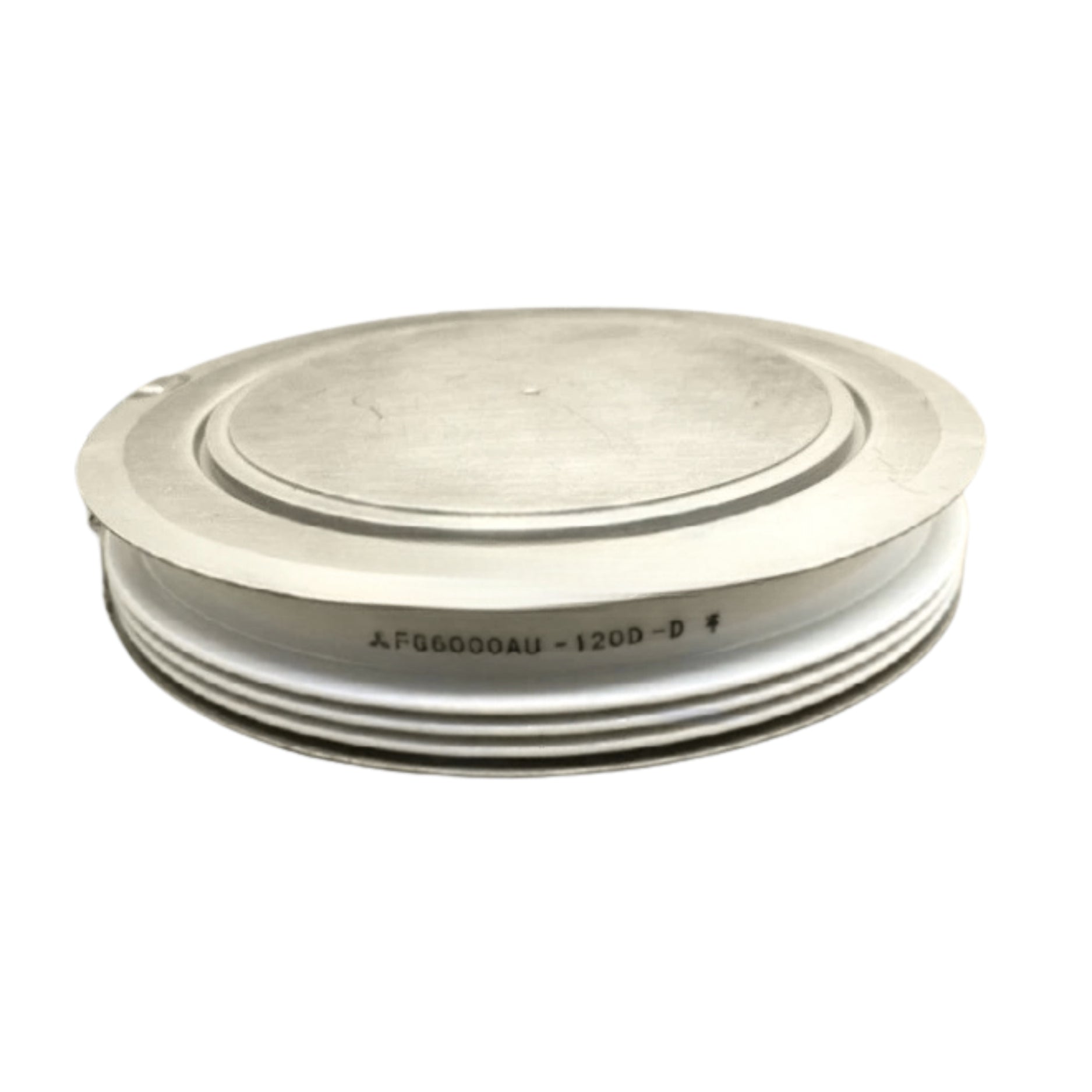

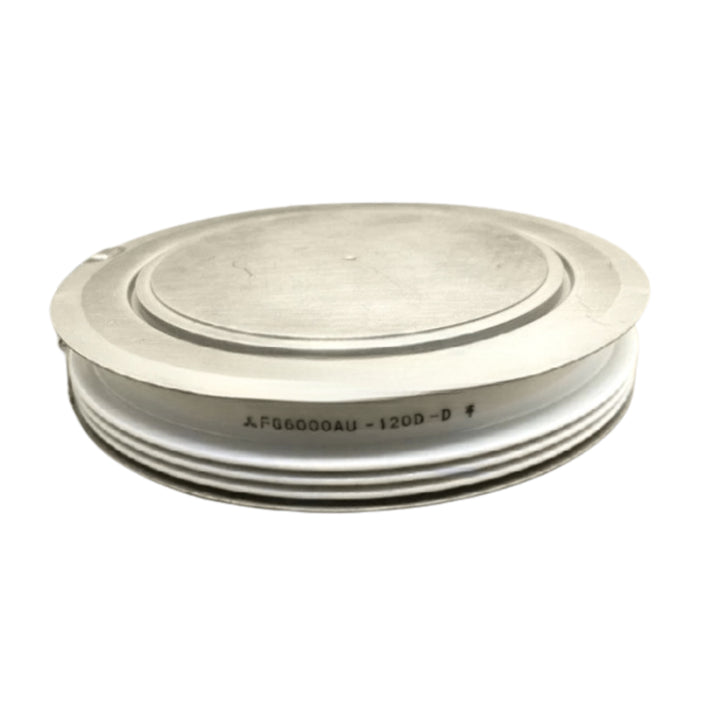

The Mitsubishi FG6000AU-120D is a high-voltage Gate Turn-Off Thyristor (GTO) engineered for robust performance in industrial applications requiring fast, reliable switching. With a 6000 A current capability and 6000 V blocking voltage, this anode-short thyristor offers outstanding power density and endurance for converters, induction heating, and high-power inverter systems.

Key Features

• Voltage rating: 6000 V

• Repetitive controllable current: 6000 A

• Surge current capability: 40 kA

• Press-pack configuration with anode-short structure

• Heavy-duty gate control design

• Excellent thermal and electrical stability

Technical Specifications

• Model: FG6000AU-120D

• Type: Gate Turn-Off Thyristor (GTO)

• Package: Press-pack type

• Configuration: Anode-short

• VDRM/VRRM: 6000 V

• VRDC: 4800 V

• ITQRM: 6000 A

• IT(RMS): 3100 A

• IT(AV): 1500 A

• ITSM: 40,000 A

• I²t: 6.7 × 10⁶ A²s

• di/dt: 500 A/µs

• VFGM: 10 V

• VRGM: 22 V

• IFGM: 200 A

• IRGM: 2400 mA

• PFGM: 2000 W

• PRGM: 50 W

• PFG(AV): 140 W

• PRG(AV): 630 W

• Tj: –40 °C to +125 °C

• Tstg: –40 °C to +150 °C

• Mounting Force: 98–118 kN

• Weight: 4600 g

Applications

• High-voltage inverters

• D.C. choppers

• Industrial heating systems

• Power conditioning and conversion

• DC to DC converters

Why Choose the FG6000AU-120D

• Mitsubishi’s flagship GTO with unmatched current capability

• Designed for the harshest industrial environments

• High gate control capacity for precision switching

• Reliable press-pack construction for extended service life

Order Now

The Mitsubishi FG6000AU-120D GTO thyristor is available and ships worldwide.
