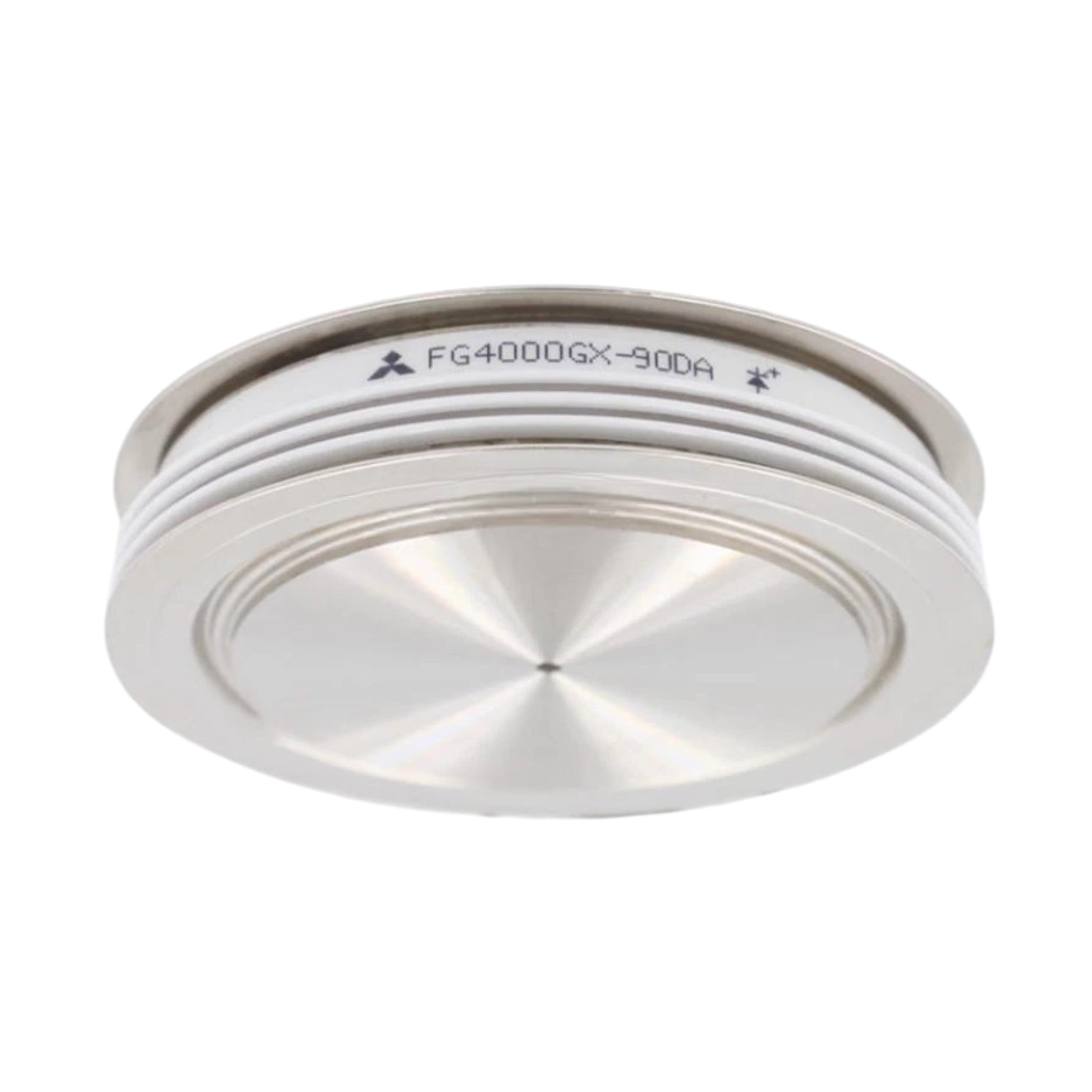

Mitsubishi FG4000GX-90DA

Mitsubishi FG4000GX-90DA

Overview

The Mitsubishi FG4000GX-90DA is a high-current Gate Turn-Off (GTO) thyristor designed for rugged industrial applications. With a 4500 V voltage rating and 4000 A controllable on-state current, this anode-short GTO thyristor features a press-pack configuration optimized for high-reliability switching in power electronics such as inverters, DC choppers, and induction heating systems.

Key Features

• Voltage rating: 4500 V

• Repetitive controllable current: 4000 A

• Surge current rating: 25 kA

• Anode-short design

• Press-pack construction

• Excellent gate control performance

• Durable under high thermal and electrical loads

Technical Specifications

• Model: FG4000GX-90DA

• Type: Gate Turn-Off Thyristor (GTO)

• Package: Press-pack type

• Configuration: Anode-short

• VDRM/VRRM: 4500 V

• VRDC: 3600 V

• ITQRM: 4000 A

• IT(RMS): 1800 A

• IT(AV): 1200 A

• ITSM: 25,000 A

• I²t: 2.6 × 10⁶ A²s

• di/dt: 500 A/µs

• VFGM: 10 V

• VRGM: 17 V

• IFGM: 130 A

• IRGM: 900 mA

• PFGM: 520 W

• PRGM: 33 W

• PFG(AV): 130 W

• PRG(AV): 300 W

• Tj: –40 °C to +125 °C

• Tstg: –40 °C to +150 °C

• Mounting Force: 35–48 kN

• Weight: 1220 g

Applications

• High-voltage inverters

• DC choppers and converters

• Induction heating systems

• Electric traction drives

• Static power controllers

Why Choose the FG4000GX-90DA

• Mitsubishi’s trusted GTO technology

• High-performance switching for industrial-grade systems

• Compact and efficient press-pack housing

• Robust design for continuous and peak power handling

Order Now

The Mitsubishi FG4000GX-90DA GTO thyristor is in stock and ships worldwide.
