Mitsubishi FG3300AH-50DA

Mitsubishi FG3300AH-50DA

Overview

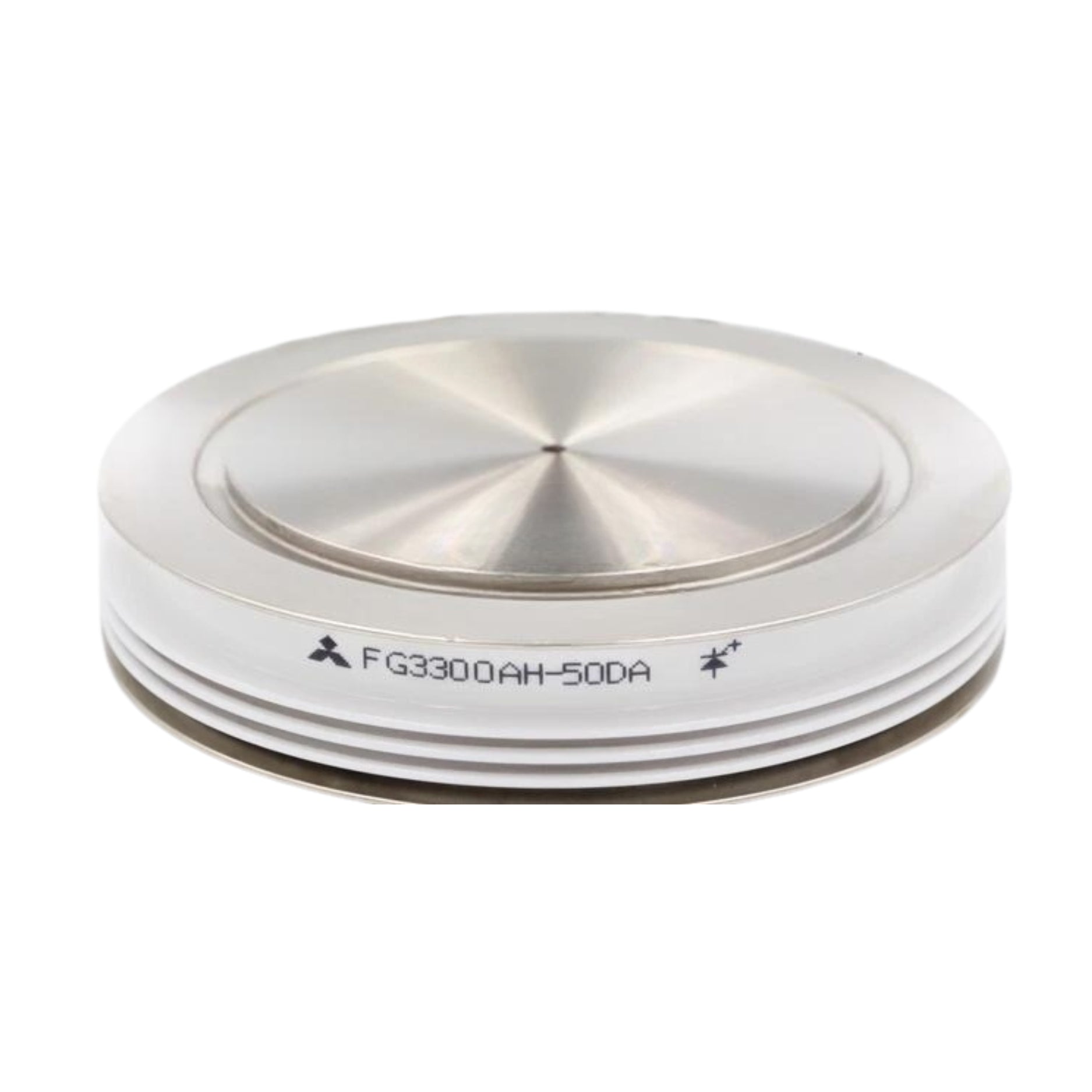

The Mitsubishi FG3300AH-50DA is a high-current Gate Turn-Off (GTO) thyristor rated at 3300 A and 2500 V. Featuring an anode-short configuration and robust press-pack housing, this device is optimized for use in high-power switching applications, such as inverters, DC choppers, induction heating, and DC-to-DC converters. It combines high surge capability, low gate drive power, and excellent controllability, making it ideal for industrial and traction systems.

Key Features

• Rated voltage: 2500 V

• Repetitive controllable current: 3300 A

• Press-pack structure for rugged mounting

• Anode-short configuration

• High surge current rating (24 kA)

• Excellent gate control characteristics

• Wide operating temperature range

Technical Specifications

• Model: FG3300AH-50DA

• Type: Gate Turn-Off Thyristor (GTO)

• Package: Press-pack type

• Configuration: Anode-short

• VDRM/VRRM: 2500 V

• VRDC: 2000 V

• ITQRM: 3300 A

• IT(RMS): 1570 A

• IT(AV): 1000 A

• ITSM: 24,000 A

• I²t: 2.4 × 10⁶ A²s

• di/dt: 500 A/µs

• VFGM: 10 V

• VRGM: 17 V

• IFGM: 100 A

• IRGM: 1100 mA

• PFGM: 400 W

• PRGM: 27 W

• PFG(AV): 100 W

• PRG(AV): 230 W

• Tj: –40 °C to +125 °C

• Tstg: –40 °C to +150 °C

• Mounting Force: 30–40 kN

• Weight: 1220 g

Applications

• Industrial inverters

• DC chopper circuits

• Induction heaters

• DC-to-DC converters

• High-speed traction converters

• Pulse power systems

Why Choose the FG3300AH-50DA

• High switching capacity with precise gate control

• Durable press-pack format for robust environments

• Optimized for energy conversion efficiency

• Backed by Mitsubishi's proven GTO technology

Order Now

The Mitsubishi FG3300AH-50DA GTO thyristor is available and ships worldwide.

Return to Mitsubishi GTO Thyristors.

Explore more solutions in the GTO Thyristors main Collection.
