Overview

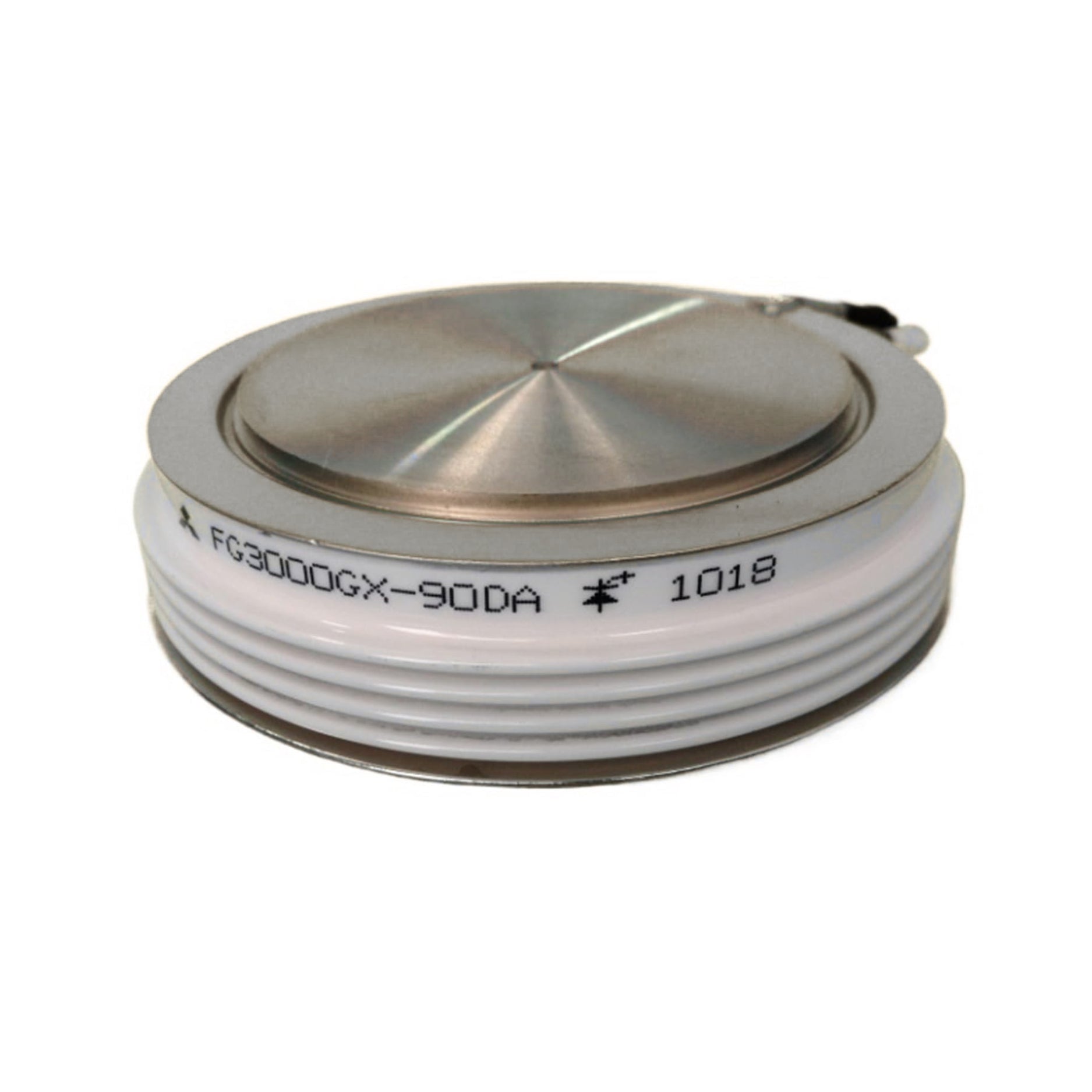

The Mitsubishi FG3000GX-90DA is a high-performance Gate Turn-Off (GTO) thyristor designed for applications requiring fast switching, high current handling, and rugged press-pack packaging. With a 3000A controllable current and 4500V blocking voltage, it is ideal for use in industrial inverters, choppers, and high-power converters.

Key Features

• Rated for 3000A controllable current

• 4500V repetitive peak off-state and reverse voltage

• Press-pack design for high mechanical stability

• Anode-short configuration

• Suitable for high-frequency and high-voltage power conversion

• Low gate trigger voltage and current

• High surge capability and thermal endurance

Technical Specifications

• Model: FG3000GX-90DA

• Device Type: Gate Turn-Off Thyristor (GTO)

• Anode Configuration: Anode-Short

• Package: Press Pack

• VDRM / VRRM: 4500 V

• VRDC: 3600 V

• IT(AV): 1000 A

• IT(RMS): 1570 A

• ITQRM: 3000 A

• ITSM: 20,000 A

• I²t: 1.6 × 10⁶ A²s

• dI/dt (critical): 500 A/µs

• VGT: 2.5 V

• IGT: 2.5 A

• IGQM: 1000 A

• tgt: 30 µs

• tgq: ~30 µs

• Tj (Operating): –40°C to +125°C

• Tstg (Storage): –40°C to +150°C

• Rth j-f: 0.013 °C/W

• Mounting Force: 30–40 kN

• Weight: 1220 g

Applications

• High-power inverters

• DC/DC converters

• Induction heating systems

• D.C. choppers

• Pulse power applications

Why Choose the FG3000GX-90DA

• Reliable switching under high current and voltage

• Robust press-pack construction

• Optimized for long life in industrial environments

• Trusted Mitsubishi Electric design quality
