Mitsubishi FG3000DV-90DA

Mitsubishi FG3000DV-90DA

Overview

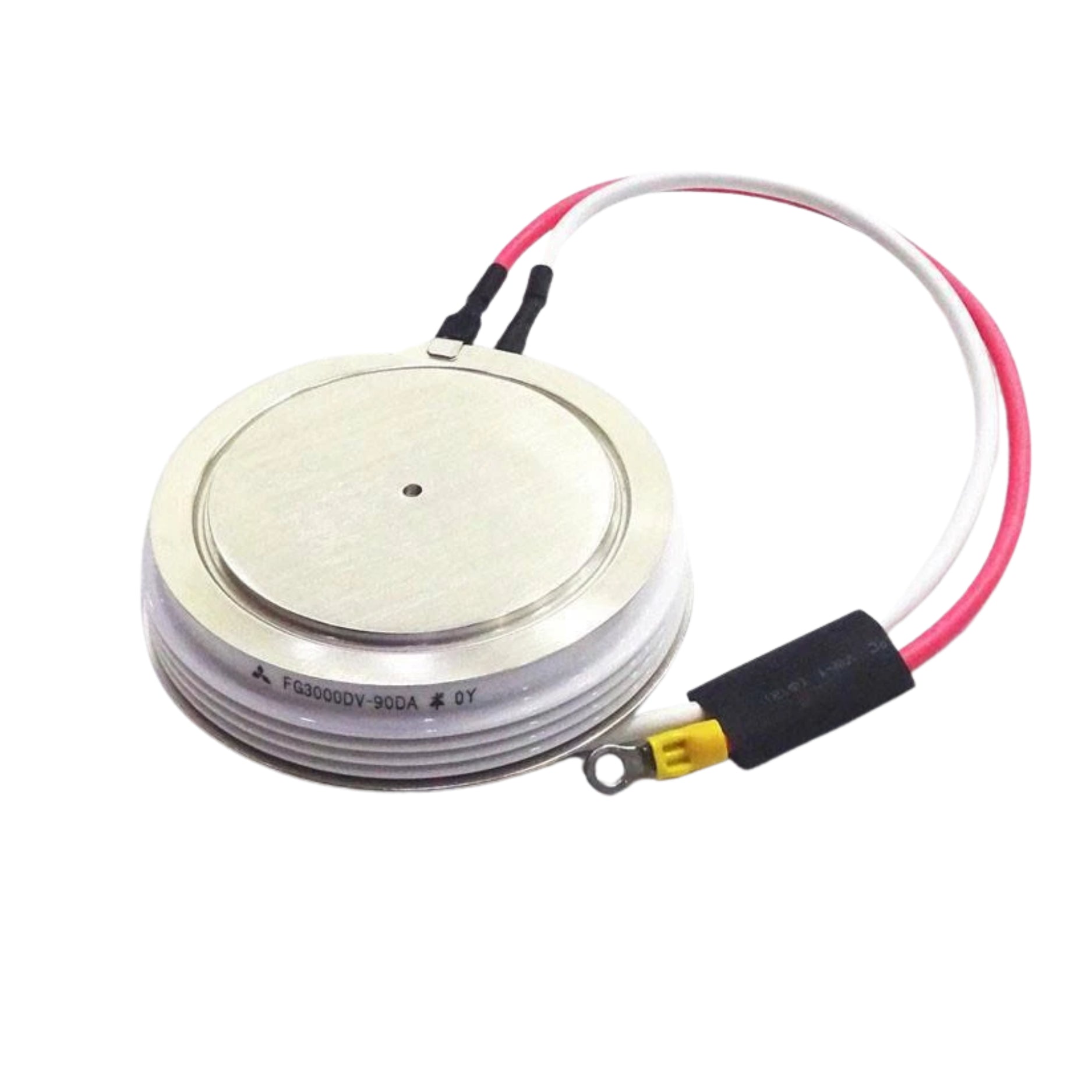

The Mitsubishi FG3000DV-90DA is a high-performance discrete Gate Turn-Off (GTO) thyristor rated at 3000 A and 4500 V. It features an anode-short structure, allowing for fast and controlled switching in high-voltage, high-current applications. Engineered for reliability and rugged operation, it is commonly used in industrial converters, railway traction systems, and motor drives.

Key Features

• Rated voltage: 4500 V

• Continuous current: 3000 A

• Anode-short structure for enhanced control

• Discrete GTO device for custom integration

• Low on-state and switching losses

• High surge current tolerance

• Designed for high-power switching

Technical Specifications

• Part Number: FG3000DV-90DA

• Type: Discrete GTO Thyristor

• Configuration: Anode-short

• IT: 3000 A

• VDRM/VRRM: 4500 V

• Turn-Off Capability: Gate-controlled

• Application Class: High-voltage power switching

• Package: Press-pack or stud-type (varies by design)

• Cooling: External heatsink required

Applications

• Railway traction inverters

• Medium-voltage motor drives

• DC choppers

• Static VAR compensators

• High-power industrial converters

Why Choose the FG3000DV-90DA

• Reliable performance under extreme electrical loads

• Proven Mitsubishi quality in GTO technology

• Compact discrete format for flexible system design

• Excellent thermal and electrical stability

Order Now

The Mitsubishi FG3000DV-90DA GTO thyristor is in stock and available for global shipping.

Return to Mitsubishi GTO Thyristors.

Explore more solutions in the GTO Thyristors main Collection.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
