Mitsubishi FG2000JV-90DA

Mitsubishi FG2000JV-90DA

Overview

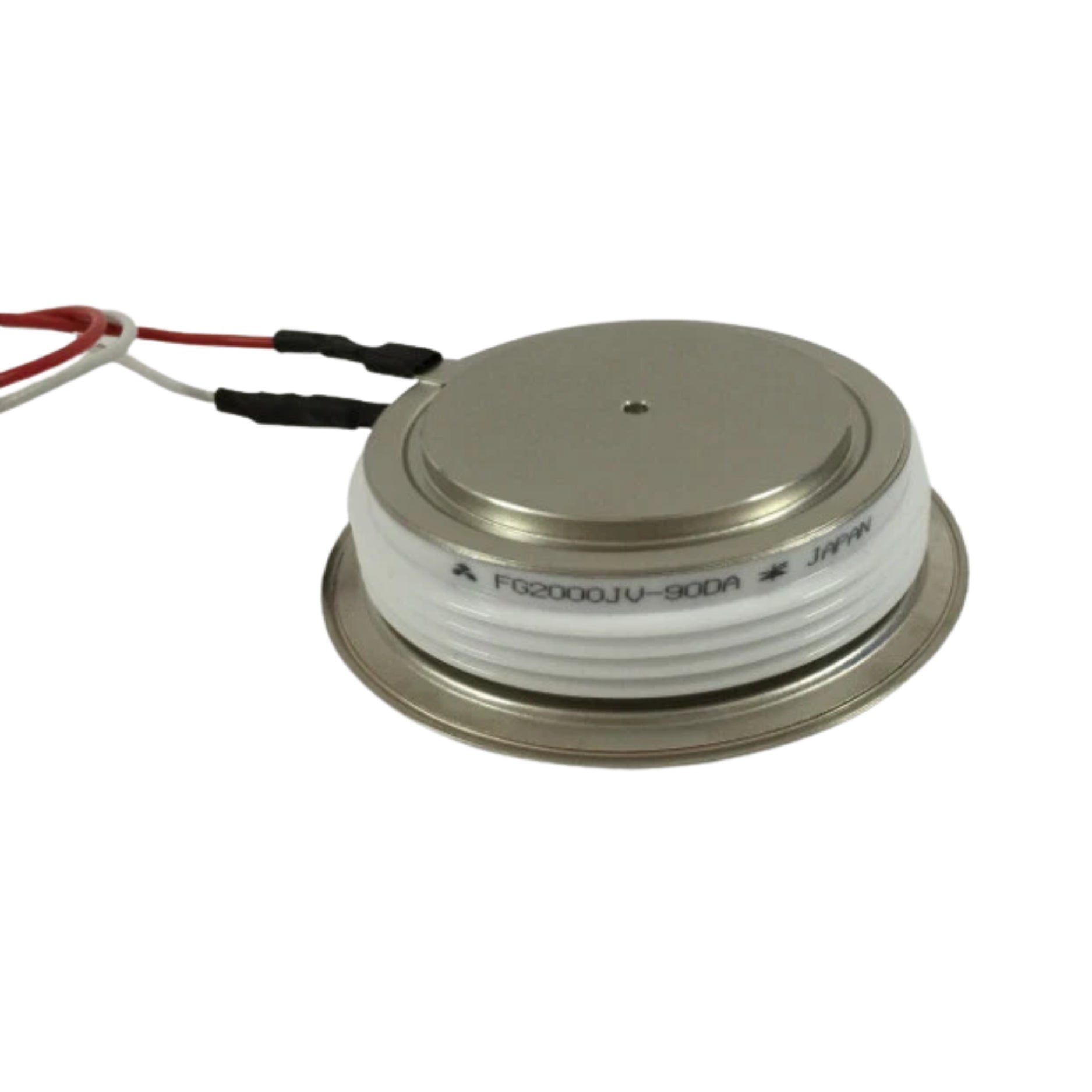

The Mitsubishi FG2000JV-90DA is a high-power Gate Turn-Off Thyristor (GTO) with a 4500 V voltage rating and 2000 A controllable current. Designed for high-frequency switching in industrial power electronics, this press pack GTO is ideal for demanding applications such as inverters, DC choppers, and induction heating systems. Its robust construction, fast switching performance, and efficient gate control make it a reliable choice for high-energy environments.

Key Features

• Repetitive Peak Voltage: 4500 V

• Controllable On-State Current: 2000 A

• Anode-Short configuration

• Fast switching with low losses

• Gate Turn-Off design for self-commutated power stages

• Press pack package for high thermal stability

• Compatible with inverters, converters, and high-frequency power supplies

Technical Specifications

• Model: FG2000JV-90DA

• Type: Gate Turn-Off Thyristor (GTO)

• VDRM/VRRM: 4500 V

• IT(AV): 600 A

• IRMS: 940 A

• ITQRM: 2000 A

• ITSM: 13,000 A

• Turn-On Time (tgt): 30 µs

• Gate Trigger Voltage (VGT): 2.5 V

• Gate Trigger Current (IGT): 2.5 A

• Peak Gate Turn-Off Current (IGQM): 1000 A

• Thermal Resistance: 0.017 °C/W

• Mounting Force: 18–24 kN

• Package Type: Press Pack

• Weight: 760 g

• Operating Temp: –40°C to +125°C

Applications

• High-power inverters

• D.C. choppers

• Induction heaters

• DC/DC converters

• Electric traction systems

Why Choose the FG2000JV-90DA

• Designed for critical power switching at high current and voltage

• Suitable for self-commutated systems with gate turn-off control

• High durability in thermal and electrical cycling

• Proven Mitsubishi GTO technology

Order Now

The Mitsubishi FG2000JV-90DA GTO thyristor is available and ships worldwide.
