Mitsubishi FG2000FX-50DA

Mitsubishi FG2000FX-50DA

Overview

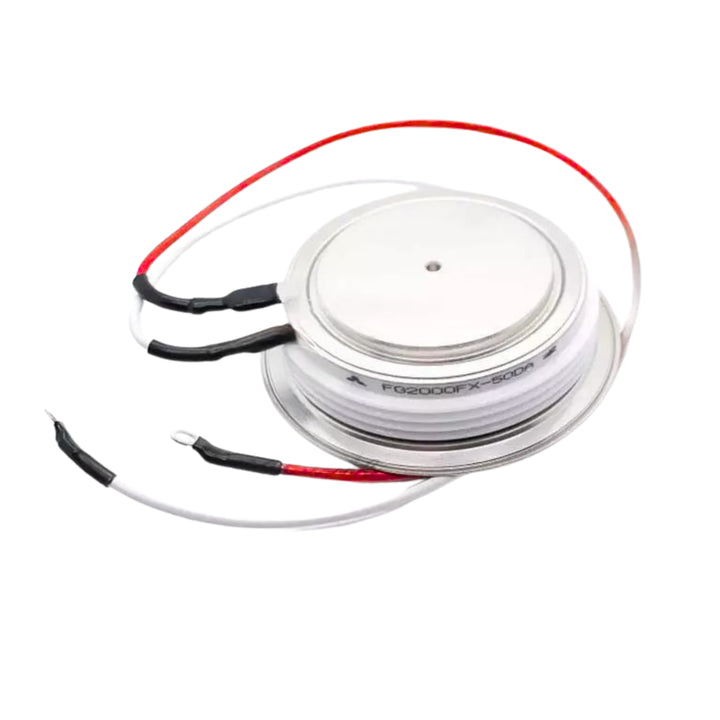

The Mitsubishi FG2000FX-50DA is a high-power Gate Turn-Off (GTO) thyristor rated at 2500 V and 1050 A, engineered for demanding power electronics such as inverters, D.C. choppers, and DC/DC converters. Featuring an anode-short configuration and press pack design, this GTO provides fast switching, high surge capabilities, and reliable thermal performance.

Key Features

• Repetitive Peak Off-State Voltage: 2500 V

• Average On-State Current: 1050 A

• Surge Current Rating: 16 kA

• Anode-Short Configuration

• Press Pack Package

• Excellent dIT/dt: 1000 A/µs

• Turn-On Time: 30 µs

• Gate Turn-Off Current: 1000 A

• Thermal Resistance: 0.017 °C/W

• Mounting Force: 18–24 kN

Technical Specifications

• Model: FG2000FX-50DA

• Type: Gate Turn-Off Thyristor (GTO)

• Package: Press Pack (Anode-Short Type)

• VDRM/VRRM: 2500 V

• VRDC: 2000 V

• IT(AV): 1050 A

• ITQRM: 2200 A

• IT(RMS): 1650 A

• ITSM: 16,000 A

• I²t: 10.5 × 10⁵ A²s

• VGT: 2.4 V

• IGT: 610 mA

• IGQM: 1000 A

• dI/dt: 1000 A/µs

• tgt: 30 µs

• Thermal Resistance (Rth j-f): 0.017 °C/W

• Mounting Force: 18–24 kN

• Weight: 760 g

Gate Ratings

• VFGM: 100 V

• VRGM: 17 V

• IFGM: 650 mA

• IRGM: 280 mA

• PFGM: 50 W

• PRGM: 18 W

• PFG(AV): 50 W

• PRG(AV): 1.5 W

Thermal & Environmental

• Junction Temperature (Tj): –40 °C to +125 °C

• Storage Temperature (Tstg): –40 °C to +150 °C

Applications

• Industrial inverters

• D.C. choppers

• Induction heating systems

• DC/DC converters

• High-power switching systems

Why Choose FG2000FX-50DA

• High surge and switching capacity

• Rugged press pack structure

• Mitsubishi reliability for industrial use

• Ideal for compact, high-efficiency designs
