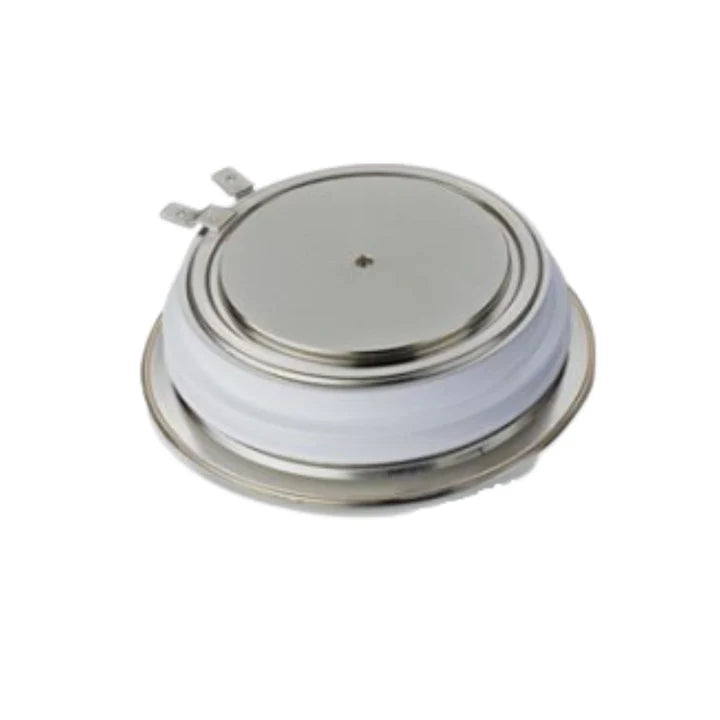

ABB 5SGS16H2500

ABB 5SGS16H2500

Overview

The ABB 5SGS16H2500 is a symmetric thyristor designed to handle high-current and high-voltage switching applications. With a blocking voltage of 2500 V and a current rating of 2500 A, it supports bidirectional current control, making it suitable for AC power regulation, cycloconverters, and heavy-duty rectifiers. Its symmetric design ensures reliable and balanced conduction in both directions.

Key Features

• Rated voltage: 2500 V

• RMS current rating: 2500 A

• Symmetric blocking capability

• High surge current tolerance

• Robust mechanical package

• Optimized for low switching losses

• Long service life under industrial stress

Technical Specifications

• Product ID: 5SGS16H2500

• Type: Symmetric Thyristor

• VDRM/VRRM: 2500 V

• IT(AV): 2500 A

• Switching Type: Fast symmetric

• Surge Capability: High

• Mounting: Press-pack

• Cooling: Air or liquid cooling as required

• Housing: Industry-standard round package

Applications

• Cycloconverters

• AC voltage regulators

• Power supplies for industrial machinery

• Medium-voltage drives

• High-power rectifiers

• Static power controllers

Why Choose the 5SGS16H2500

• Reliable performance in both current directions

• Ideal for symmetrical AC power control systems

• ABB's proven quality and engineering

• High thermal endurance and electrical strength

Order Now

The ABB 5SGS16H2500 symmetric thyristor is in stock and ships worldwide.
