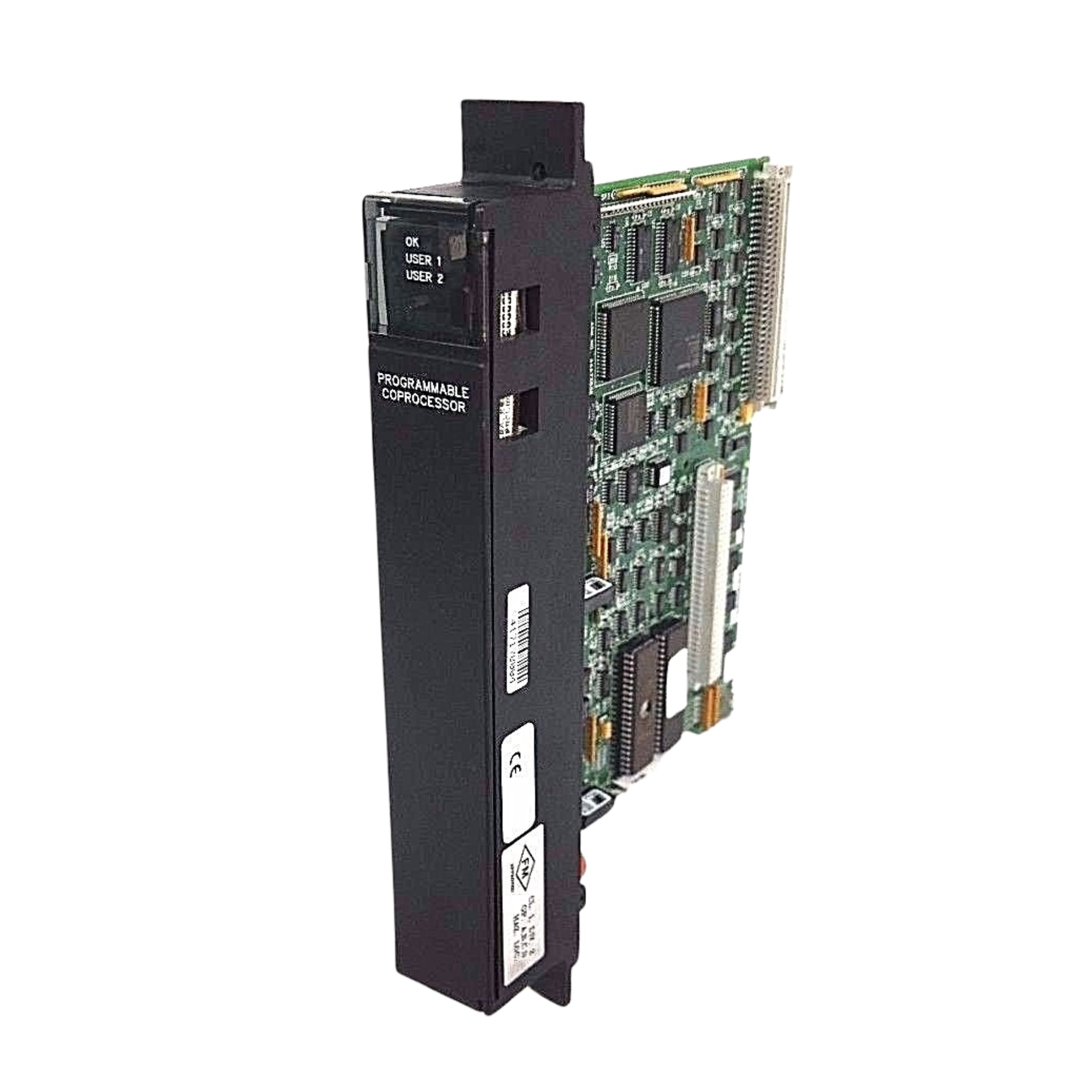

GE IC697PCM711

GE Fanuc IC697PCM711 | Programmable Coprocessor Module | Series 90-70 | 12 MHz | Dual RS-232/RS-485 Ports

Overview

The GE Fanuc IC697PCM711 is a Programmable Coprocessor Module (PCM) designed for the Series 90-70 PLC systems. It enhances the processing capabilities of the PLC by offloading tasks such as data acquisition, storage, communication, and real-time computations. Equipped with a 12 MHz 80C186 microprocessor and dual-tasking capability, it allows for efficient multitasking operations within industrial automation environments.

Key Features

• Microprocessor: 12 MHz Intel 80C186

• Memory:

  • 96 KB battery-backed CMOS RAM

  • Supports optional expansion memory up to 512 KB

• Serial Ports: Two configurable RS-232 or RS-422/RS-485 ports

• Programming Language: MegaBasic

• Dual Tasking: Allows simultaneous execution of two tasks

• Real-Time Clock: Synchronized with PLC for time-stamped operations

• Configuration: Software-configurable; no DIP switches or jumpers

• Indicators: Three LEDs for module and port status

• Reset: Pushbutton for module reset

• Installation: Occupies a single slot in the Series 90-70 rack

Technical Specifications

• Model Number: IC697PCM711

• Microprocessor: Intel 80C186, 12 MHz

• Onboard Memory: 96 KB battery-backed CMOS RAM

• Optional Memory Expansion: Up to 512 KB

• Serial Ports: Two RS-232 or RS-422/RS-485 ports

• Programming Language: MegaBasic

• Power Requirements: +5 VDC at 1.0 A

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CSA, CE

Applications

• Offloading complex computations from the main PLC CPU

• Data acquisition and storage tasks

• Communication gateway between PLC and external devices

• Real-time control applications requiring precise timing

Why Choose the IC697PCM711?

• Enhanced Processing: Offloads tasks from the main CPU, improving overall system performance

• Flexible Communication: Dual serial ports support various communication protocols

• Expandable Memory: Accommodates growing application needs with optional memory expansion

• Ease of Integration: Seamlessly integrates into existing Series 90-70 PLC systems

Order Now

The GE Fanuc IC697PCM711 Programmable Coprocessor Module is available for immediate shipment.
