GE IC697MDL740

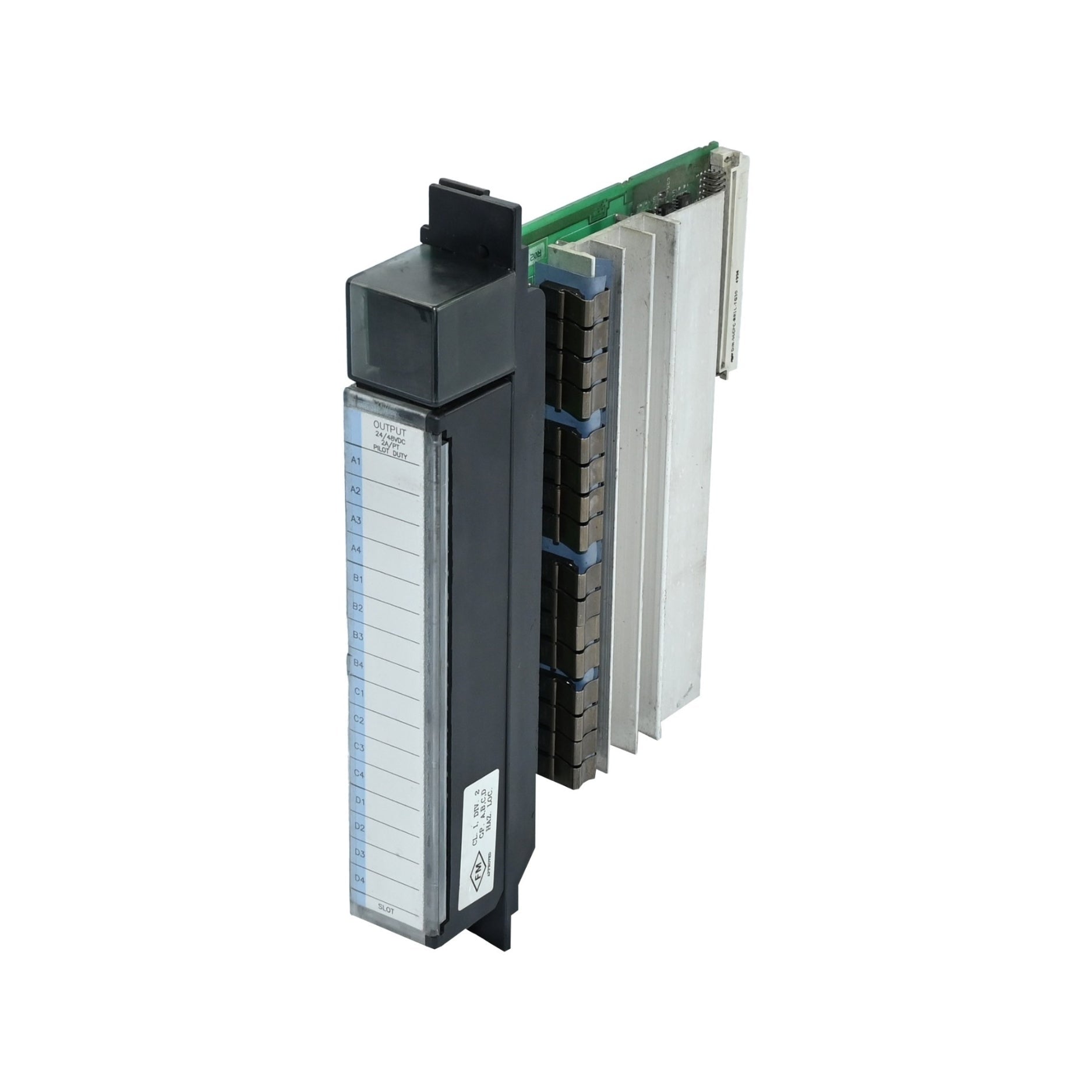

GE Fanuc IC697MDL740 | Series 90-70 PLC Output Module | 120VAC | 16-Point | Isolated Outputs

Overview

The GE Fanuc IC697MDL740 is a 16-point discrete output module that provides 120VAC control signals for actuators, relays, and other field devices. Designed for the Series 90-70 PLC platform, each output channel is individually isolated, ensuring safe and reliable switching in demanding industrial environments.

Key Features

• Number of Outputs: 16

• Output Type: 120VAC

• Isolation: Each output individually isolated

• Group Configuration: 4 groups of 4 outputs

• Status Indicators: LEDs for each channel

• Compatible With: GE Series 90-70 racks and CPUs

Technical Specifications

• Model Number: IC697MDL740

• Nominal Output Voltage: 120VAC

• Output Voltage Range: 90–132VAC

• Frequency: 47–63 Hz

• Maximum Load per Point: 2A

• Maximum Total Load: 16A per module

• On-State Voltage Drop: < 1.5V at rated load

• Backplane Current: 5V @ 220 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• AC load control (valves, lights, contactors)

• Industrial machines and process automation

• OEM control panels using 120VAC logic

• Energy systems and utilities

Why Choose the IC697MDL740?

• AC Output Compatibility: Directly drives 120VAC loads

• Isolated Channels: Improves system protection and flexibility

• Diagnostic LEDs: Real-time output status monitoring

• GE Fanuc Durability: Built for continuous industrial use

Order Now

The GE Fanuc IC697MDL740 120VAC output module is in stock and ready for fast global shipping.

Return to GE IC697 PLC Series 90-70 for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLC systems, I/O modules, HMIs, servo drives, and power solutions.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
