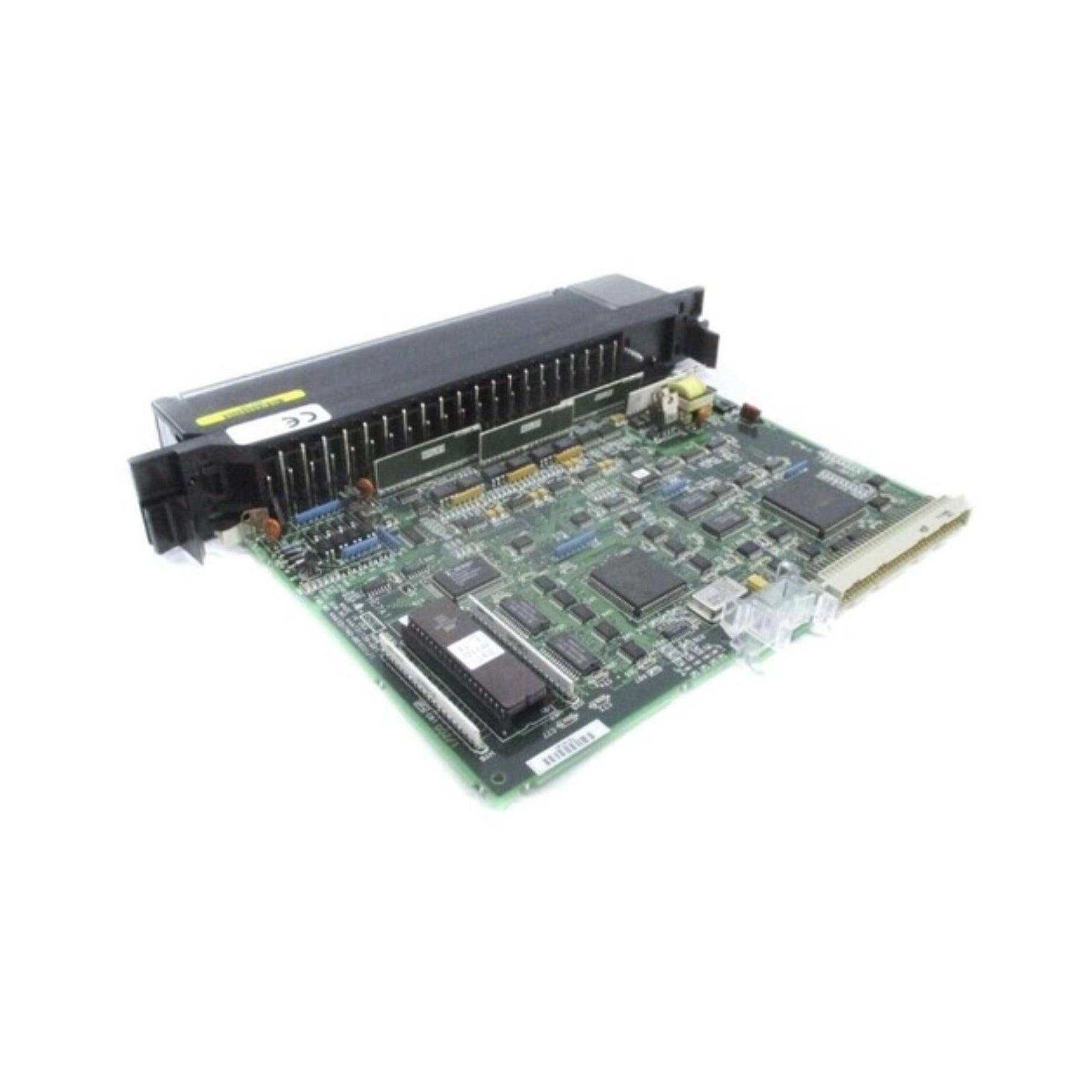

GE IC697HSC700

GE Fanuc IC697HSC700 | Series 90-70 High-Speed Counter Module | 2 Channels | 12V/24VDC Input

Overview

The GE Fanuc IC697HSC700 is a high-speed counter module designed for the Series 90-70 PLC system, providing two independent counting channels for use in applications where rapid pulse counting and input response are required. Ideal for packaging, material handling, and motion control systems.

Key Features

• Channels: 2 high-speed counters (independent)

• Input Voltage: 12VDC or 24VDC

• Input Frequency: Up to 100 kHz

• Counter Modes: Up/Down, Quadrature, and Single Counter

• Diagnostics: LEDs for channel status and error monitoring

• Input Isolation: Optical isolation between field and logic

• Mounting: Standard slot in Series 90-70 I/O base

Technical Specifications

• Model Number: IC697HSC700

• Number of Inputs: 4 per channel (A, B, Z, and Gate)

• Input Voltage Range: 10.2V to 30VDC

• Input Current: Typically 7 mA at 24VDC

• Max Frequency: 100,000 pulses per second

• Isolation: 1500V between field and logic

• Backplane Power Consumption: 5V @ 800 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Position tracking with encoders

• Pulse counting from flowmeters or speed sensors

• High-speed event monitoring

• OEM motion control and machine feedback systems

Why Choose the IC697HSC700?

• High-Speed Performance: Handles up to 100 kHz for rapid processes

• Flexible Modes: Supports multiple counter configurations

• Industrial Durability: Reliable in demanding environments

• Easy Integration: Fully compatible with Series 90-70 CPUs and racks

Order Now

The GE Fanuc IC697HSC700 high-speed counter module is in stock and ready for global shipment.

Return to GE IC697 PLC Series 90-70 for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLC systems, I/O modules, HMIs, servo drives, and power solutions.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
