GE IC200MDD843

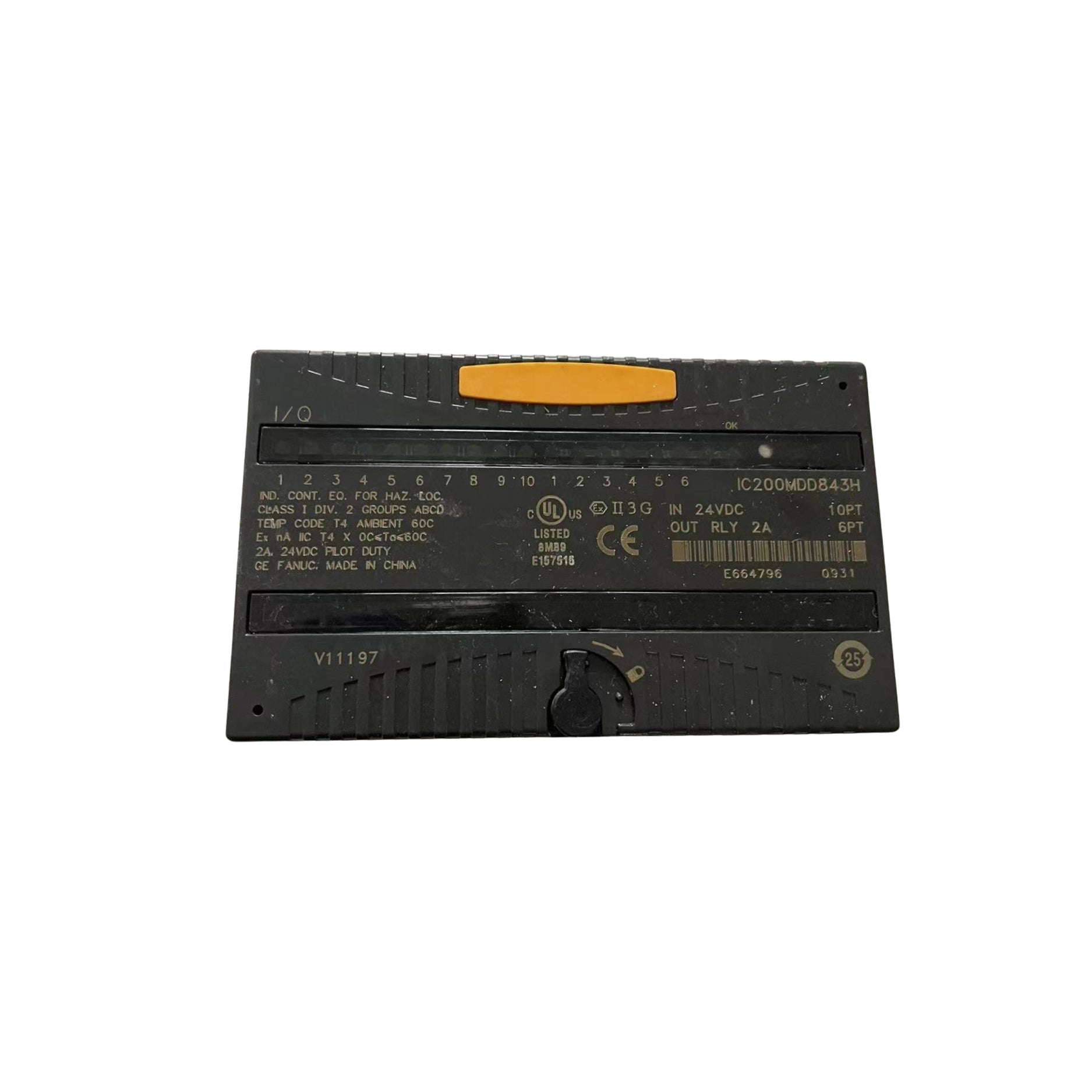

GE Fanuc IC200MDD843 | VersaMax Mixed I/O Module | 16 Inputs / 16 Outputs | 24VDC | Positive Logic | Relay Output

Overview

The GE Fanuc IC200MDD843 is a 32-point mixed I/O module for the VersaMax PLC system, combining 16 discrete DC inputs and 16 relay outputs in a compact design. Operating on 24VDC with positive logic, it enables both input monitoring and output control from a single module—ideal for space-saving and cost-effective automation panel designs.

Key Features

• Input Channels: 16 discrete inputs (24VDC, positive logic)

• Output Channels: 16 relay outputs

• Input Type: Sourcing (positive logic)

• Output Type: Form A (normally open relay contacts)

• Isolation: Optical isolation between inputs/outputs and logic

• Status LEDs: Individual indicators for each I/O point

• Mounting: Panel or DIN rail when used with appropriate carrier

Technical Specifications

• Model Number: IC200MDD843

• Total Points: 32 (16 in / 16 out)

• Input Voltage: 24VDC (positive logic)

• Input Current (typ): 7 mA per point

• Output Voltage (max): 250VAC / 30VDC

• Output Current (max): 2A per point

• Relay Contact Type: Form A (SPST-NO)

• Backplane Power: Supplied via VersaMax carrier

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, CSA

Applications

• Machine control panels with mixed signal requirements

• Industrial automation systems combining input sensing and output control

• OEM control solutions looking to reduce module count and wiring

• Cost-effective PLC installations using VersaMax components

Why Choose the IC200MDD843?

• All-in-One: Combines inputs and relay outputs in a single module

• Space-Saving: Reduces panel footprint with 32 points in one unit

• Rugged Design: Built for industrial environments

• Easy Diagnostics: LED indicators for every input and output channel

Order Now

The GE Fanuc IC200MDD843 mixed I/O module is available for immediate shipment.

Return to GE IC200 VersaMax PLC for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLCs, I/O modules, HMIs, and motion control solutions.
