GE ST-3424

GE Fanuc ST-3424 | High-Resolution Analog Input for Industrial Automation

Overview

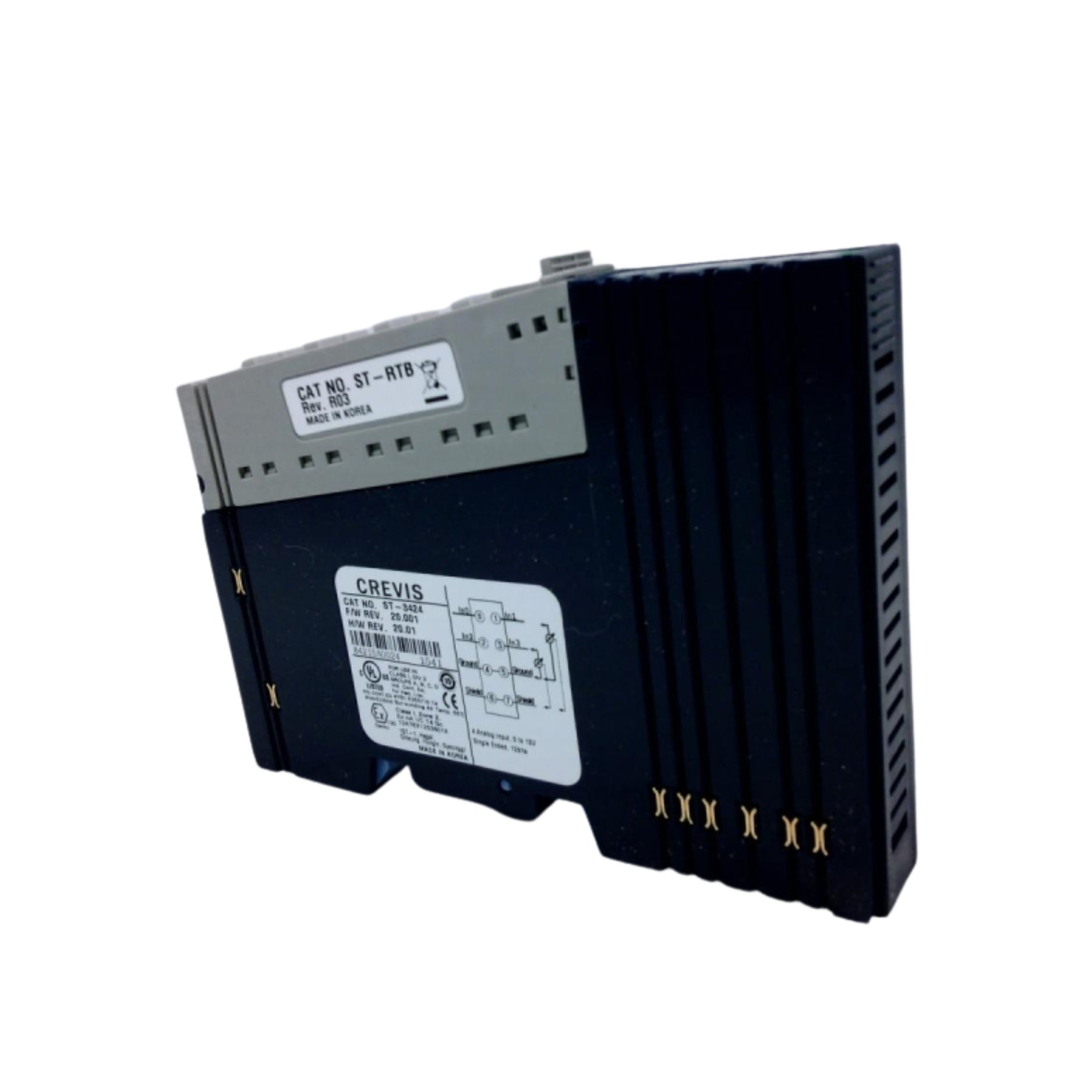

The GE Fanuc ST-3424 is a 4-channel analog input module for the RSTi (Remote Slice Terminal I/O) platform. It supports both voltage (0–10V) and current (4–20 mA) input types, with high 16-bit resolution for accurate signal acquisition. Designed for DIN rail mounting, this compact module integrates easily into distributed control architectures.

Key Features

• Analog Inputs: 4 channels, individually configurable

• Input Types: 0–10V, ±10V, 0–5V, ±5V, 0–20 mA, 4–20 mA

• Resolution: 16-bit

• Input Impedance: 1 MΩ for voltage, 250 Ω for current

• Channel Isolation: Channel-to-backplane isolation

• Status LEDs: 4 indicators (1 per channel)

• Configuration: Software-selectable per channel

• Mounting: DIN rail, compact design

Technical Specifications

• Model Number: ST-3424

• Power Supply: 24 VDC

• Current Draw: Approx. 100 mA

• Accuracy: ±0.1% of full scale

• Operating Temp: -20°C to +60°C

• Dimensions: ~99 mm x 70 mm x 12 mm

• Certifications: CE, UL, RoHS

• Connection Type: Spring clamp terminal block

Applications

• Process control (pressure, temperature, flow sensors)

• OEM equipment requiring analog signal acquisition

• Machine condition monitoring

• Industrial automation systems using RSTi or Crevis platforms

Why Choose the ST-3424?

• Flexible Input Range: Supports both voltage and current signal types

• High Precision: 16-bit resolution for demanding measurement needs

• Compact Footprint: Saves space in control panels

• Quick Diagnostics: Integrated channel LED indicators

• Reliable: Built for harsh industrial environments

Order Now

The GE ST-3424 analog input module is available for global shipment.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
