GE IC697MDL251

GE Fanuc IC697MDL251 | Series 90-70 PLC Discrete Output Module | 32-Point | 5/12/24VDC | Positive Logic (Sourcing) | Isolated Groups

Overview

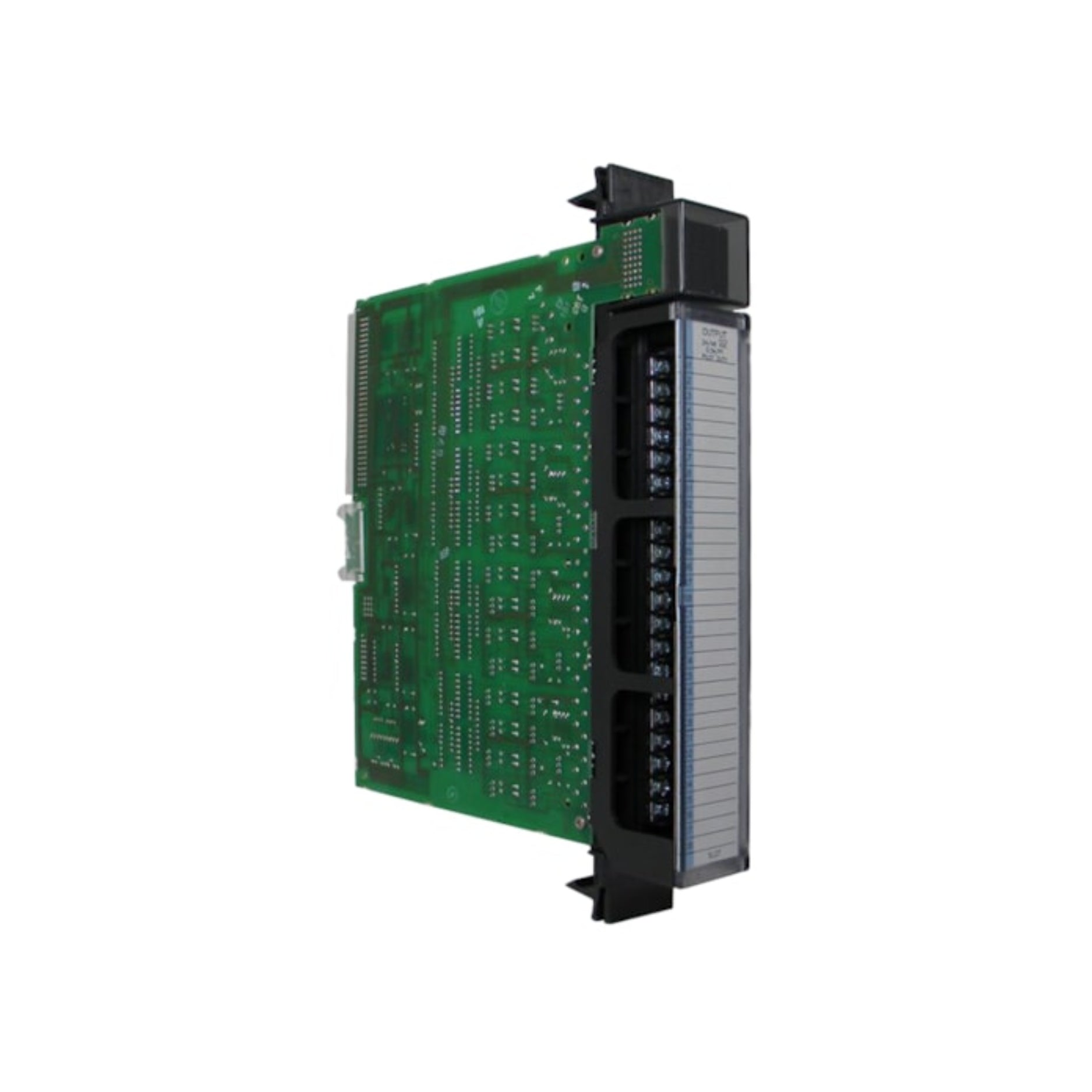

The GE Fanuc IC697MDL251 is a 32-point discrete DC output module designed for the Series 90-70 PLC system. It operates on 5V, 12V, or 24VDC and provides positive logic (sourcing) outputs. The outputs are arranged in four isolated groups of eight, allowing flexible field wiring and improved noise immunity in industrial control applications.

Key Features

• Output Type: Discrete DC (positive logic / sourcing)

• Voltage Range: 5VDC, 12VDC, 24VDC

• Number of Outputs: 32 (4 groups of 8, individually isolated)

• Output Current:

  • Max 0.5A per point

  • Max 2A per group

• Isolation: 1500V between groups and from logic

• Status Indicators: LEDs for each output point

Technical Specifications

• Model Number: IC697MDL251

• Output Voltage Range: 4.9–30VDC

• Current Capacity:

  • 0.5A max per output

  • 2A max per group

• On-State Voltage Drop: 1.0V max at rated current

• Off-State Leakage Current: < 0.1 mA

• Backplane Power Requirements: 5V @ 250 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Industrial automation requiring multiple DC outputs

• Driving relays, indicators, solenoids, and contactors

• OEM machinery and control panels with 24VDC logic

• Large-scale I/O systems using GE Fanuc Series 90-70

Why Choose the IC697MDL251?

• High-Density I/O: 32 outputs in one module

• Flexible Voltage Support: 5, 12, or 24VDC output compatibility

• Group Isolation: Protects against electrical noise and cross-talk

• GE Fanuc Proven Quality: Built for reliable industrial operation

Order Now

The GE Fanuc IC697MDL251 DC output module is in stock and available for fast international shipping.

Return to GE IC697 PLC Series 90-70 for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLC systems, I/O modules, HMIs, servo drives, and power solutions.
