GE IC694MDL231

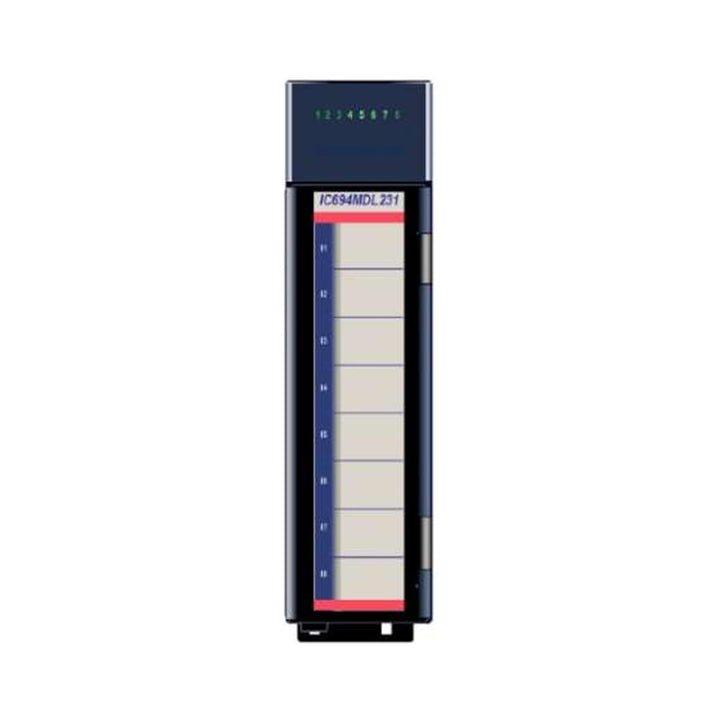

GE Fanuc IC694MDL231 | RX3i 120VAC Discrete Output Module | 16 Points | Relay Outputs

Overview

The GE Fanuc IC694MDL231 is a 16-point discrete output module that features Form A relay outputs for switching both AC and DC loads in PACSystems RX3i control environments. Each group of outputs is electrically isolated, making it a great choice for applications requiring signal integrity and flexible power distribution.

Key Features

• Output Type: Relay (SPST-NO Form A)

• Number of Outputs: 16 (2 groups of 8)

• Voltage Range: 120VAC / 30VDC max

• Load Current per Point: Up to 2A resistive

• Group Isolation: Two groups of 8, isolated from each other and logic

• Status Indicators: 16 green LEDs for output status

• Hot-Swappable: Yes (with RX3i systems)

Technical Specifications

• Model Number: IC694MDL231

• Max Voltage: 250VAC / 30VDC

• Max Current per Output: 2A resistive, 0.6A inductive

• Minimum Load: 10 mA @ 5V

• Relay Contact Life: 100,000 operations at rated load

• Power Requirements: 5V at 110 mA

• Contact Isolation: 250V from logic and between groups

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Switching solenoids, relays, contactors, and indicators

• Control panels with mixed AC/DC load environments

• OEM automation systems

• Applications requiring electrical isolation for load groups

Why Choose the IC694MDL231?

• Relay Versatility: Switches both AC and DC loads reliably

• Electrically Isolated Groups: Enhanced protection and flexibility

• Built-In Diagnostics: LED indicators reduce troubleshooting time

• Compact Design: 16 outputs in a single-slot module

Order Now

The GE Fanuc IC694MDL231 is ready to ship worldwide.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
