GE IC677DBI008

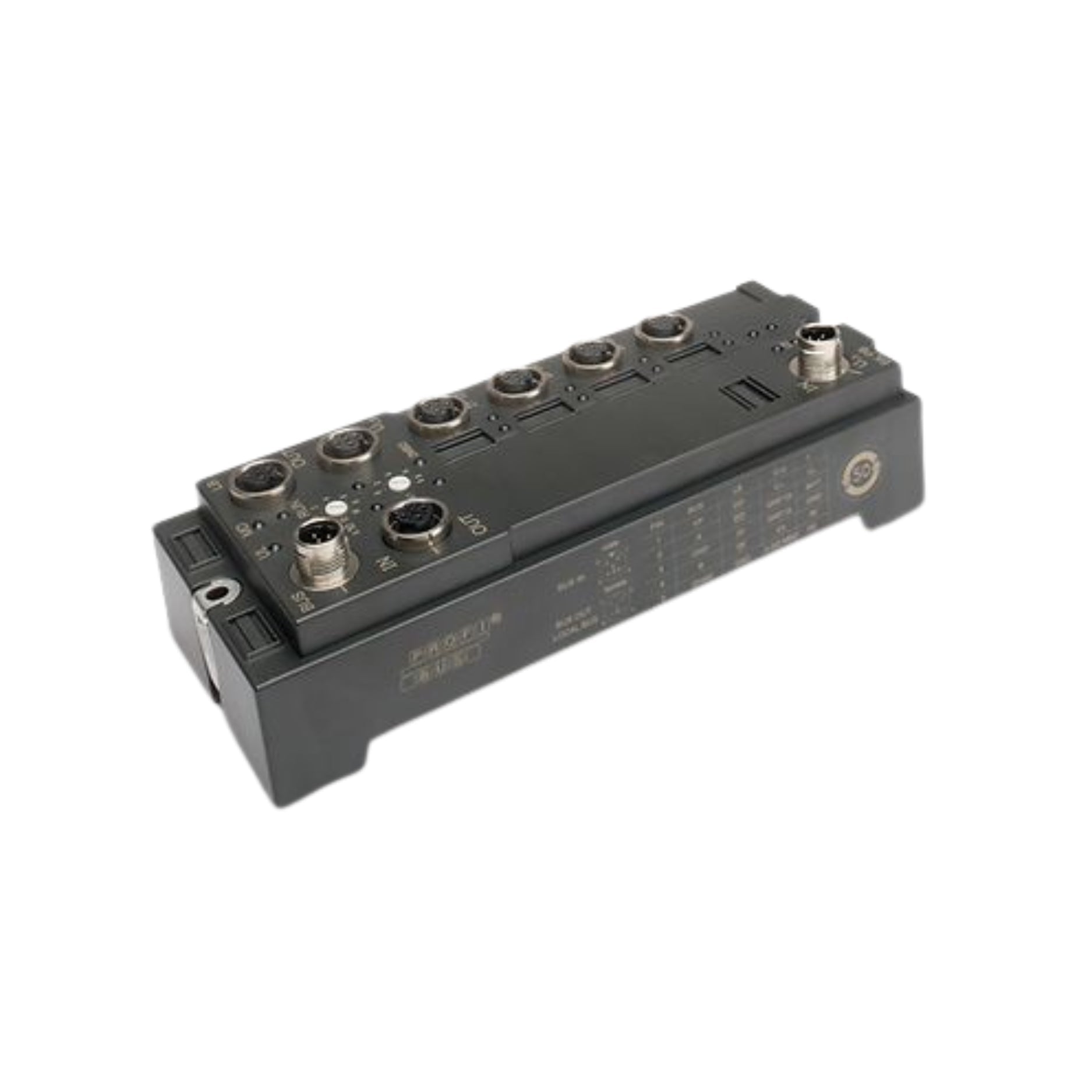

GE Fanuc IC677DBI008 | VersaMax IP Modular Expansion Base | 8-Point | 24VDC Input | IP67 Rated

Overview

The GE Fanuc IC677DBI008 is an 8-point 24VDC input module designed for the VersaMax IP modular I/O system. Engineered for rugged industrial environments, this IP67-rated expansion base facilitates seamless integration of discrete input signals in distributed control architectures. It requires a compatible network interface unit, such as the IC677PNS001 (PROFINET) or IC677PBI001 (PROFIBUS), to function within a networked system.

Key Features

• Input Channels: 8 discrete inputs

• Input Voltage: 24VDC

• Protection Rating: IP67 for harsh environments

• Mounting: DIN rail or panel mount

• Compatibility: Requires IC677PNS001 (PROFINET) or IC677PBI001 (PROFIBUS) network interface unit

• Diagnostics: LED indicators for input status and module health

Technical Specifications

• Model Number: IC677DBI008

• Input Type: Sourcing (positive logic)

• Input Voltage Range: 18–30VDC

• Input Current: 6 mA nominal at 24VDC

• Isolation: 500V between field side and logic side

• Operating Temperature: -40°C to 70°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% non-condensing

• Weight: Approximately 3.00 lbs

• Certifications: CE, UL, CSA

Applications

• Distributed I/O in industrial automation systems

• Harsh environment applications requiring IP67 protection

• Machine control and monitoring

• Integration into PROFINET or PROFIBUS networks

Why Choose the IC677DBI008?

• Robust Design: IP67 rating ensures reliable operation in challenging environments

• Flexible Integration: Compatible with both PROFINET and PROFIBUS networks

• Compact Footprint: Saves space in control cabinets

• Easy Installation: DIN rail or panel mounting options

Order Now

The GE Fanuc IC677DBI008 VersaMax IP Modular Expansion Base is available for immediate shipment worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
