GE IC660EBD020

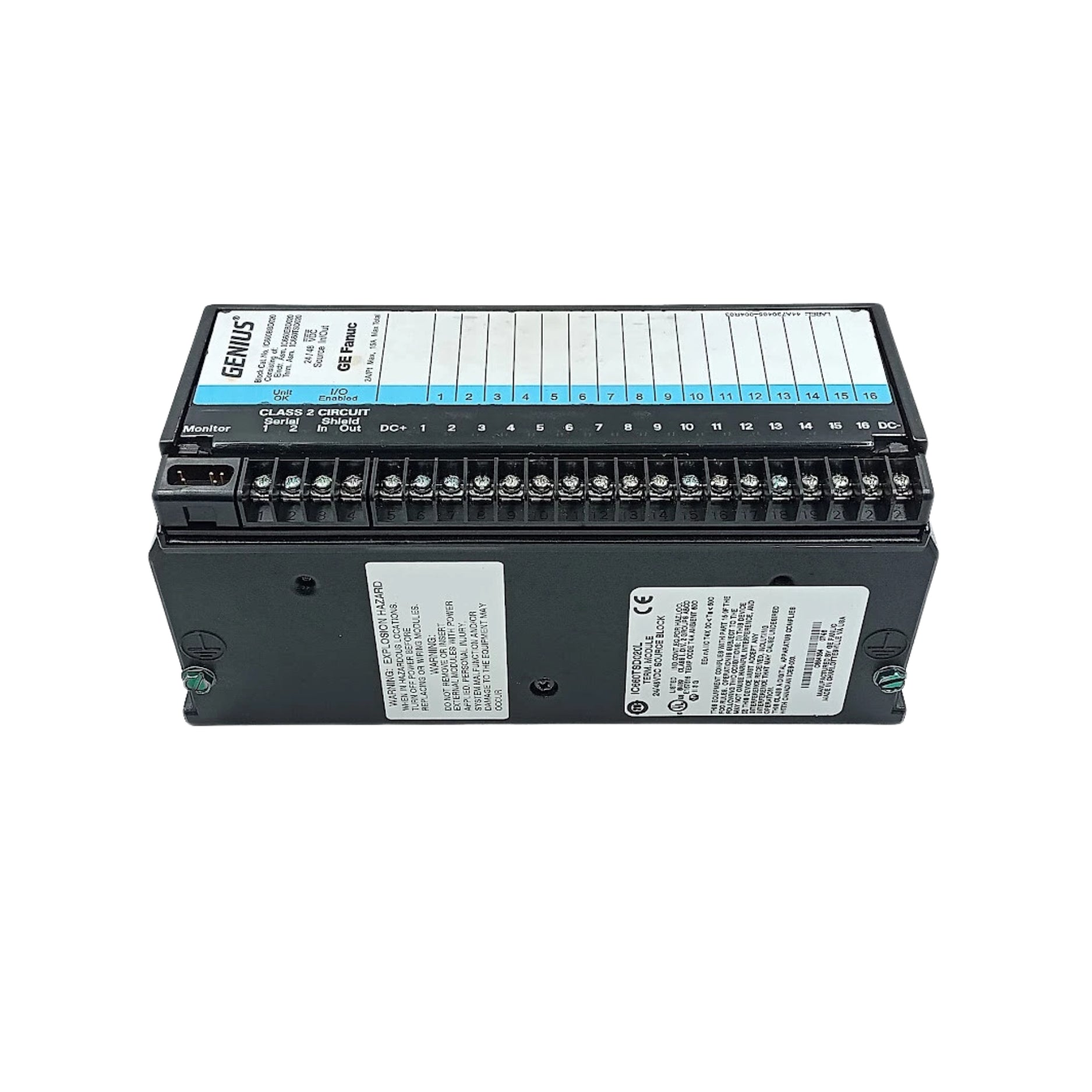

GE IC660EBD020 | Configurable DC Input/Output Block for Genius I/O

Overview

The GE Fanuc IC660EBD020 is a 32-circuit DC I/O block from the Genius I/O series, offering flexible configuration for each circuit as an input, output, or output with feedback. It supports operation at 5, 12, or 24 VDC, and each circuit can be set to source or sink, allowing the block to adapt to a wide range of field devices and control strategies.

Key Features

• Configurable Circuits: 32 individually programmable I/O circuits

• Logic Type: Source or sink (positive or negative logic) per circuit

• Input Voltage Compatibility: Operates with 5 VDC TTL, 12 VDC, and 24 VDC systems

• Diagnostics: Built-in diagnostics for shorts, open wire, and feedback errors

• LED Indicators: Channel-level I/O status indicators

• Protection: Short-circuit protection and surge handling

• Mounting: Rugged field-mountable enclosure with Genius Bus interface

• Communication: Fully compatible with Genius I/O controllers and PLCs

Technical Specifications

• Model Number: IC660EBD020

• I/O Type: Configurable discrete (input/output/output with feedback)

• Number of Circuits: 32

• Input Voltage Range: 4–30 VDC (supports TTL)

• Current Rating: 0.5 A max per output

• Power Supply: 18–30 VDC

• Isolation: 1500 V RMS block-to-block

• Heat Dissipation: 11–18 Watts (based on configuration)

• Operating Temp: 0°C to +60°C

• Dimensions (H x W x D): ~8.83 x 3.58 x 4.7 inches

• Weight: ~2.7 kg

Applications

• Flexible digital I/O in:

  • Packaging machines

  • Conveyor systems

  • Robotic interfaces

  • OEM panels

  • General factory automation

Why Choose the IC660EBD020?

• Highly Configurable: Reduces inventory by serving as input, output, or both

• Built-In Diagnostics: Minimizes downtime and troubleshooting time

• Field-Proven: Compatible with Genius I/O networks and controllers

• Flexible Voltage Support: Works with a wide range of sensor/actuator types

• Industrial Durability: Built for harsh environments and long service life

Order Now

The GE IC660EBD020 block is available for global delivery.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
