GE IC200PNS001

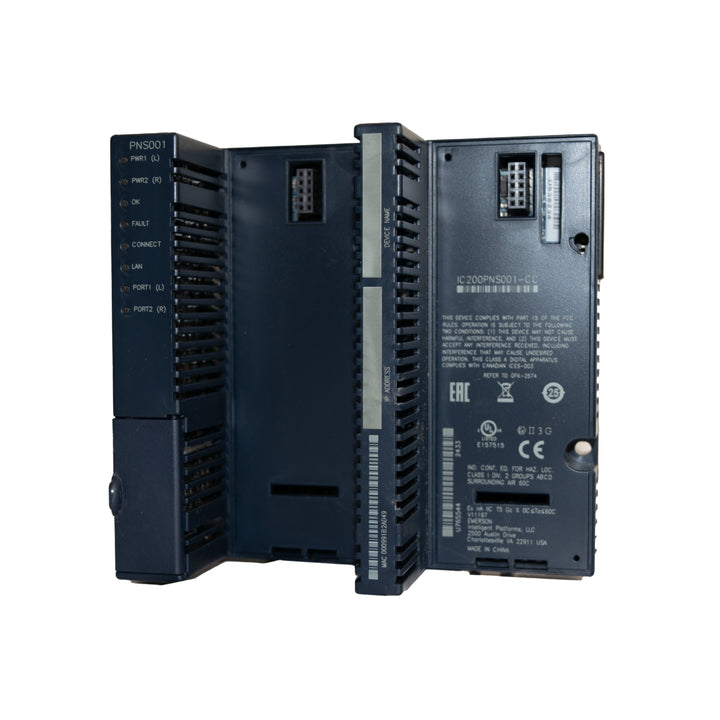

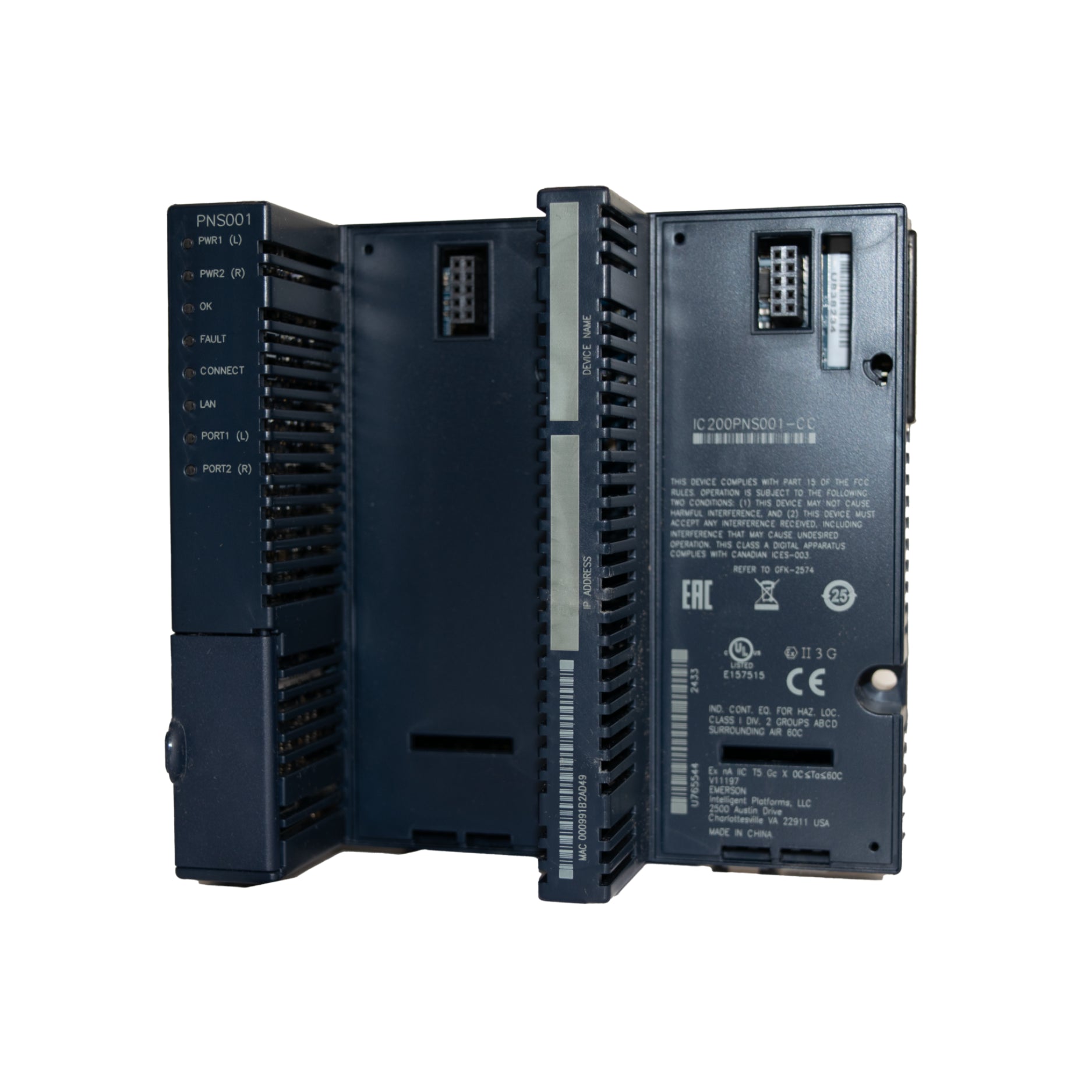

GE Fanuc IC200PNS001 | VersaMax Profibus-DP Slave Interface | Remote I/O Communication Module

Overview

The GE Fanuc IC200PNS001 is a Profibus-DP slave communication module for the VersaMax PLC platform, used to connect VersaMax I/O stations to a Profibus-DP master device. It enables remote I/O functionality, ideal for distributed control architectures and industrial automation systems.

Key Features

• Protocol: Profibus-DP V0 (slave mode)

• Baud Rate Support: 9.6 kbps to 12 Mbps (auto-detect)

• Physical Interface: RS-485, 9-pin D-sub connector

• Status LEDs: Power, OK, Network Status

• Address Configuration: DIP switch selectable (0–125)

• Mounting: DIN rail or panel via VersaMax base

• Power Supply: Via VersaMax backplane

Technical Specifications

• Model Number: IC200PNS001

• Supported I/O Modules: Up to 64 VersaMax modules

• Backplane Power Requirement: 175 mA @ 5VDC

• Electrical Isolation: Opto-isolated from network

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, CSA

Applications

• Distributed I/O systems over Profibus-DP

• Integration of VersaMax I/O with non-GE controllers

• OEM and industrial control networks

• Retrofitting legacy systems into Profibus networks

Why Choose the IC200PNS001?

• Robust Fieldbus Connectivity: Integrates seamlessly with Profibus-DP

• Modular Flexibility: Supports a wide range of VersaMax I/O modules

• Compact & Efficient: Ideal for space-limited control panels

• Diagnostics Made Easy: LED indicators and address switches simplify setup

Order Now

The GE Fanuc IC200PNS001 Profibus-DP slave module is in stock and ready to ship worldwide.

Return to GE IC200 VersaMax PLC for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLCs, I/O modules, HMIs, and motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
