GE IC200PBI001

GE Fanuc IC200PBI001 | VersaMax Profibus-DP Network Interface | Master/Slave Communication Module

Overview

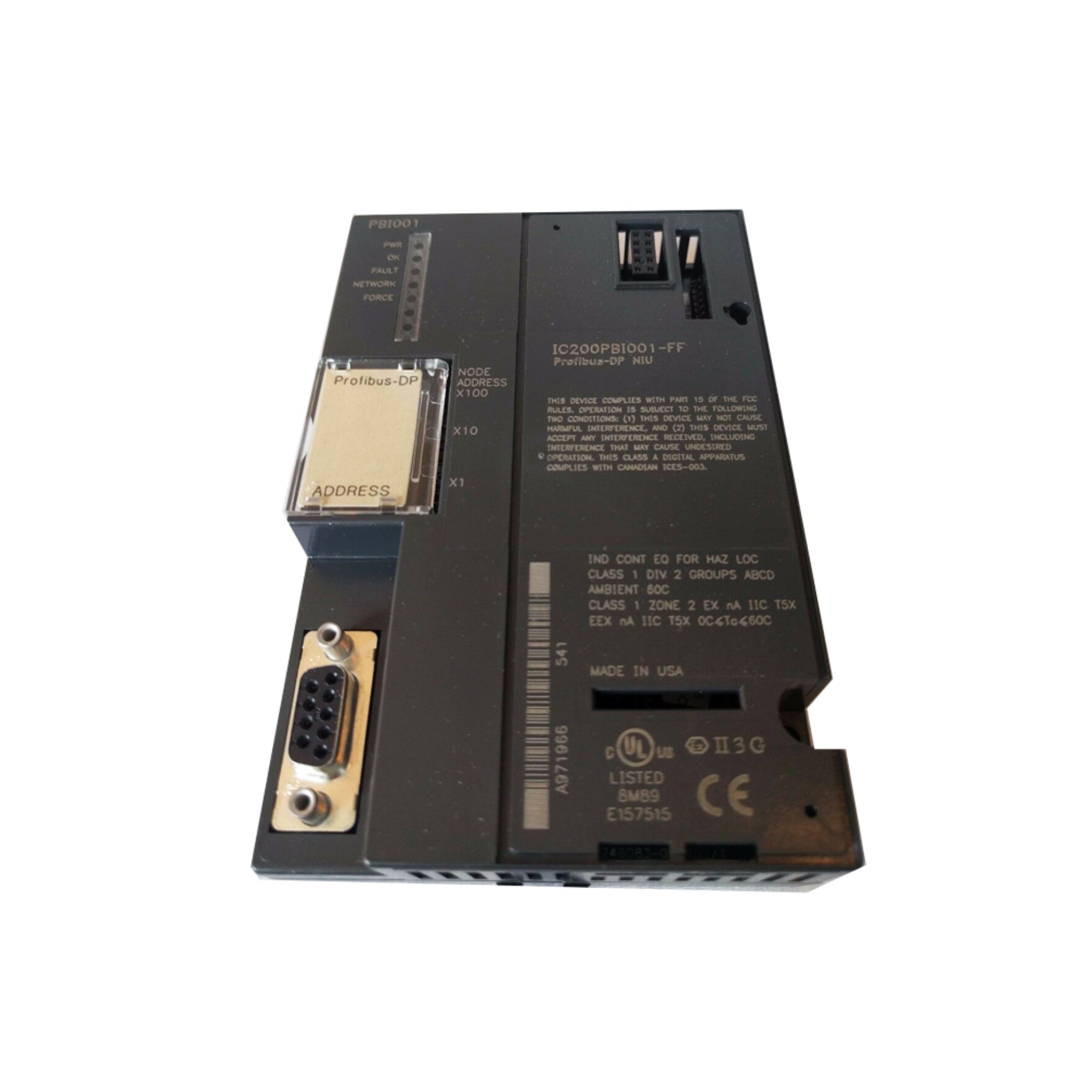

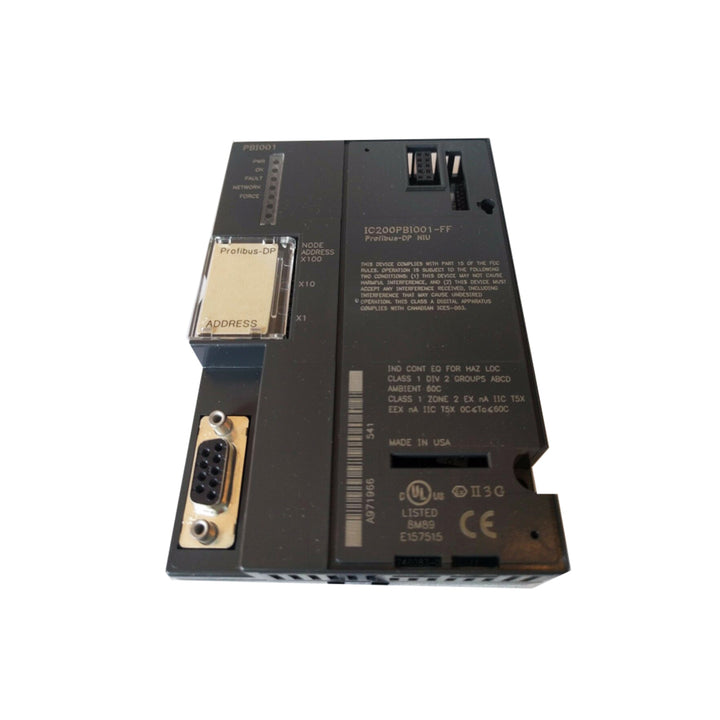

The GE Fanuc IC200PBI001 is a Profibus-DP communication module for the VersaMax PLC system, providing connectivity between VersaMax controllers or I/O and other Profibus-enabled devices. It supports both master and slave modes, allowing seamless integration into distributed control systems.

Key Features

• Profibus-DP Protocol: Supports both master and slave modes

• Communication Speed: 9.6 kbps to 12 Mbps (auto-detect)

• Connector: 9-pin D-sub RS-485 interface

• Status LEDs: Power, Module Status, Network Activity

• Mounting: DIN rail or panel via VersaMax carrier

• Addressing: Configurable via DIP switch or software

Technical Specifications

• Model Number: IC200PBI001

• Supported Modes: Master or Slave

• Baud Rate: 9.6 kbps to 12 Mbps

• Address Range: 0–125 (DIP switch selectable)

• Power Requirement: 170 mA @ 5VDC from backplane

• Isolation: Optically isolated network interface

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, CSA

Applications

• Profibus-DP communication in distributed automation systems

• Integration of VersaMax I/O into third-party PLC systems

• OEM equipment and factory floor networking

• Profibus master/slave configuration flexibility

Why Choose the IC200PBI001?

• Dual Mode Flexibility: Use as master or slave on Profibus-DP

• Robust Integration: Reliable communication for industrial environments

• Compact & Efficient: Saves space in control panels

• Diagnostic Friendly: LED indicators for fast troubleshooting

Order Now

The GE Fanuc IC200PBI001 Profibus-DP interface module is available and ready for global shipping.

Return to GE IC200 VersaMax PLC for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLCs, I/O modules, HMIs, and motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
