GE IC200ALG331

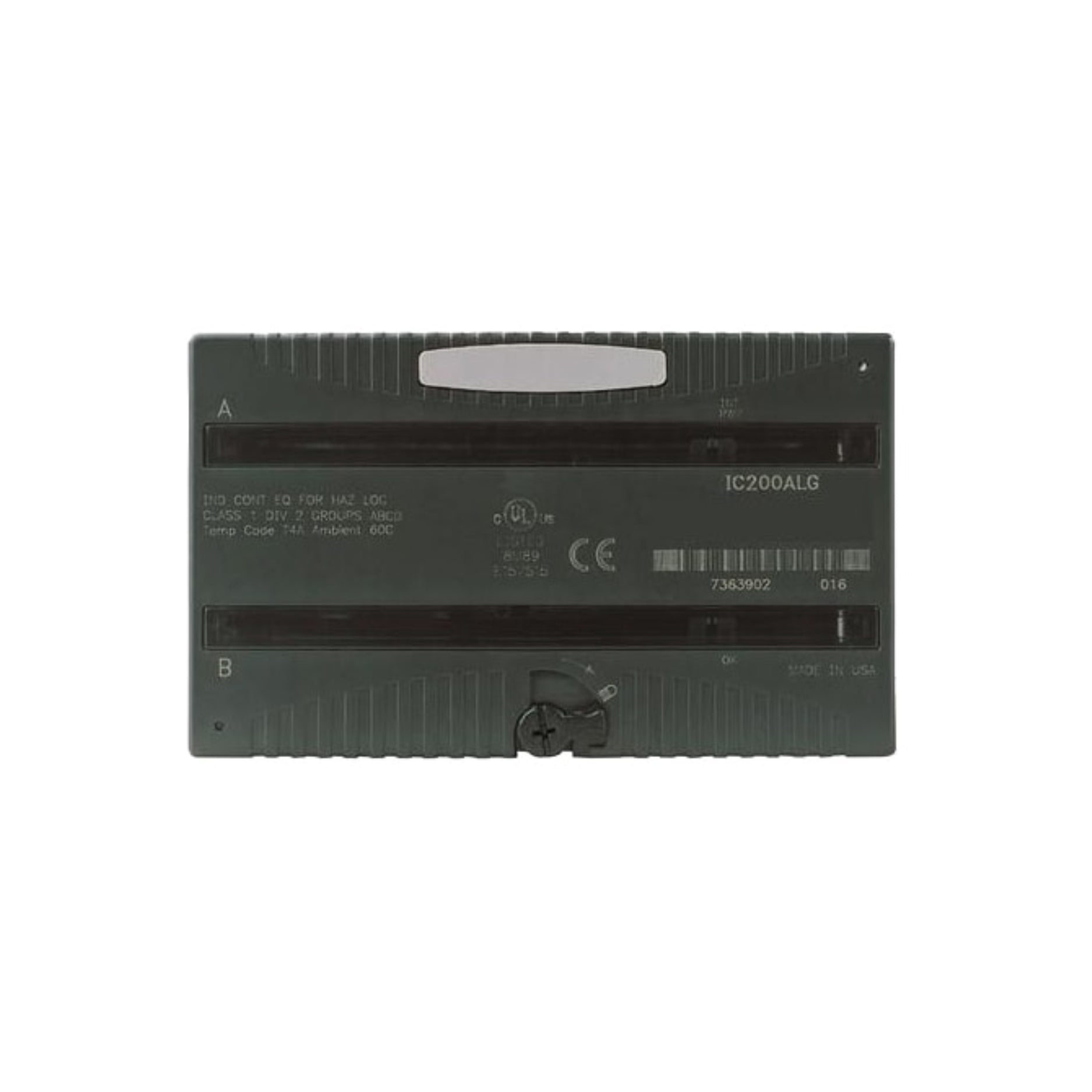

GE Fanuc IC200ALG331 | VersaMax Analog Input Module | 8-Channel | 4–20mA Current Input | 12-Bit Resolution

Overview

The GE Fanuc IC200ALG331 is an 8-channel analog input module for the VersaMax PLC system, designed to receive 4–20mA current signals from a variety of industrial field devices. With 12-bit resolution, it ensures accurate data acquisition for process monitoring and control.

Key Features

• Input Channels: 8

• Signal Type: 4–20mA current

• Resolution: 12-bit (4096 counts)

• Internal Shunt Resistor: 250 Ohms

• Status Indicators: Module and individual channel diagnostics

• Mounting: DIN rail or panel with VersaMax base

• Isolation: Channel-to-backplane

Technical Specifications

• Model Number: IC200ALG331

• Input Signal: 4–20mA

• Input Impedance: 250 Ohms

• Accuracy: ±0.5% of full scale typical

• Update Rate: One channel per scan

• Power Requirement: 110 mA @ 5VDC

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, CSA

Applications

• Process control and monitoring

• Measuring current signals from pressure, flow, level transmitters

• OEM systems requiring multi-channel analog input

• Industrial PLC systems with distributed analog sensing

Why Choose the IC200ALG331?

• High Channel Density: 8 inputs in a compact module

• Accurate Readings: 12-bit resolution for precise signal capture

• Industrial Compatibility: Ideal for standard 4–20mA sensors

• Efficient Integration: Seamlessly connects with VersaMax controllers

Order Now

The GE Fanuc IC200ALG331 analog input module is available and ready to ship worldwide.

Return to GE IC200 VersaMax PLC for more options in this series.

Explore our full range of GE Industrial Automation Products to find PLCs, I/O modules, HMIs, and motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
