Fuji 7MBR50U2A060-50

Fuji 7MBR50U2A060-50

Overview

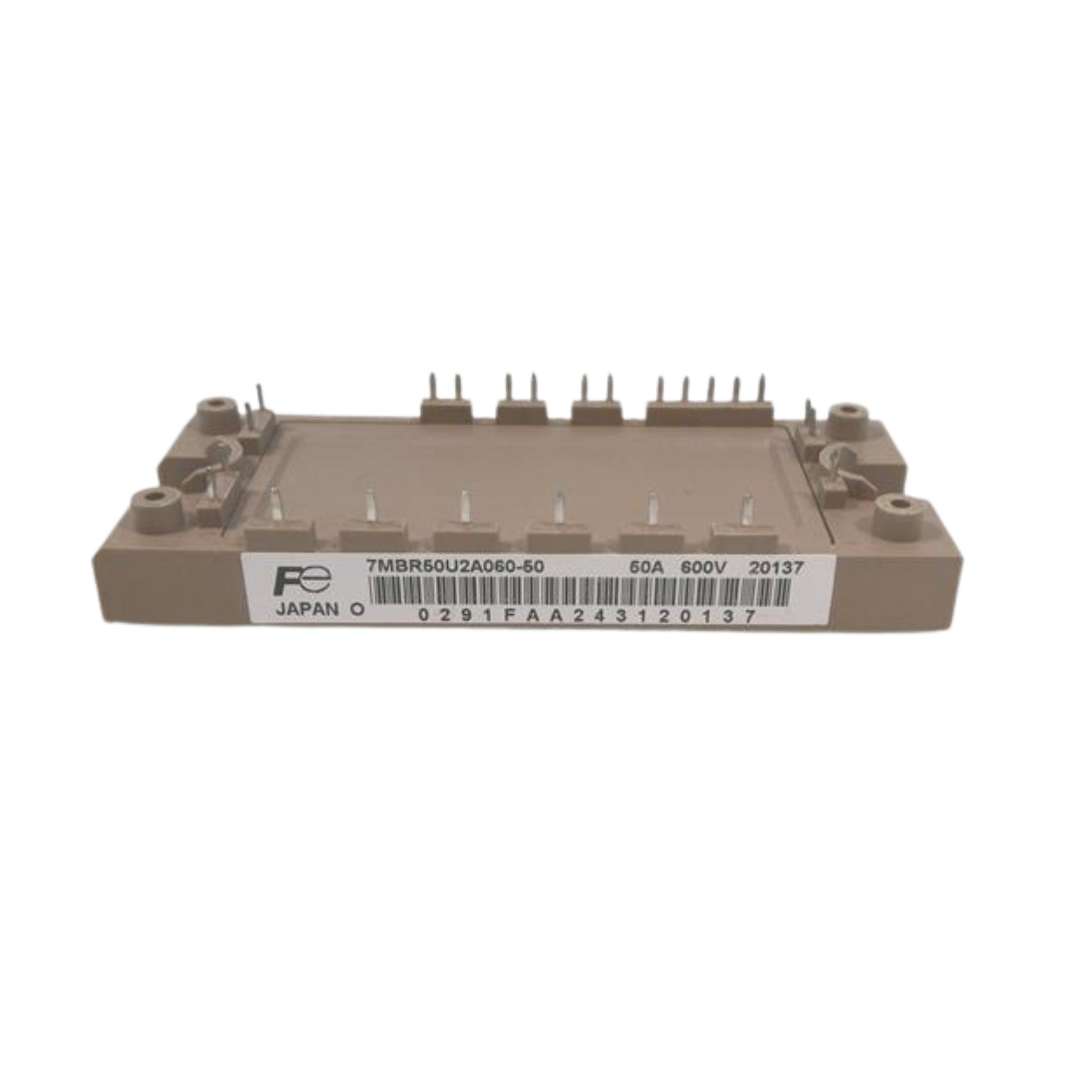

The Fuji 7MBR50U2A060-50 is a compact IGBT module rated at 50 A and 600 V, designed for fast switching and high efficiency in industrial motor drives and inverter systems. Its insulated package and robust construction ensure long-lasting performance in demanding applications.

Key Features

• Collector-Emitter Voltage: 600 V

• Continuous Collector Current: 50 A

• High-speed switching with low saturation loss

• Free-wheeling diode included

• Chassis mount with insulated baseplate

• Optimized thermal conductivity

• Compact and reliable industrial design

Technical Specifications

• Part Number: 7MBR50U2A060-50

• Manufacturer: Fuji Electric

• Vce (Max): 600 V

• Ic (Rated): 50 A

• Vce(sat): ~2.0–2.5 V typical

• Mounting Type: Chassis

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial inverters

• Motor drives

• Power control systems

• Automation and robotics

• UPS and renewable energy systems

Why Choose the 7MBR50U2A060-50

• Efficient power handling in a compact form

• Fast and reliable switching performance

• Integrated free-wheeling diode

• Built for industrial durability and thermal control

• Fuji Electric quality and reliability

Order Now

The Fuji 7MBR50U2A060-50 IGBT module is available and ships worldwide.
