Fuji 6MBP100RTC060 / A50L‑0001‑0335

Fuji 6MBP100RTC060 (A50L‑0001‑0335)

Overview

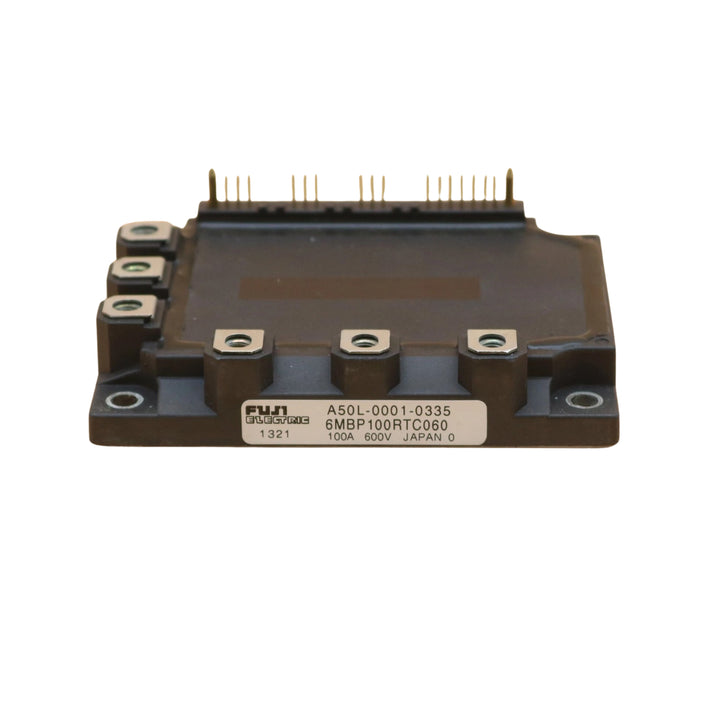

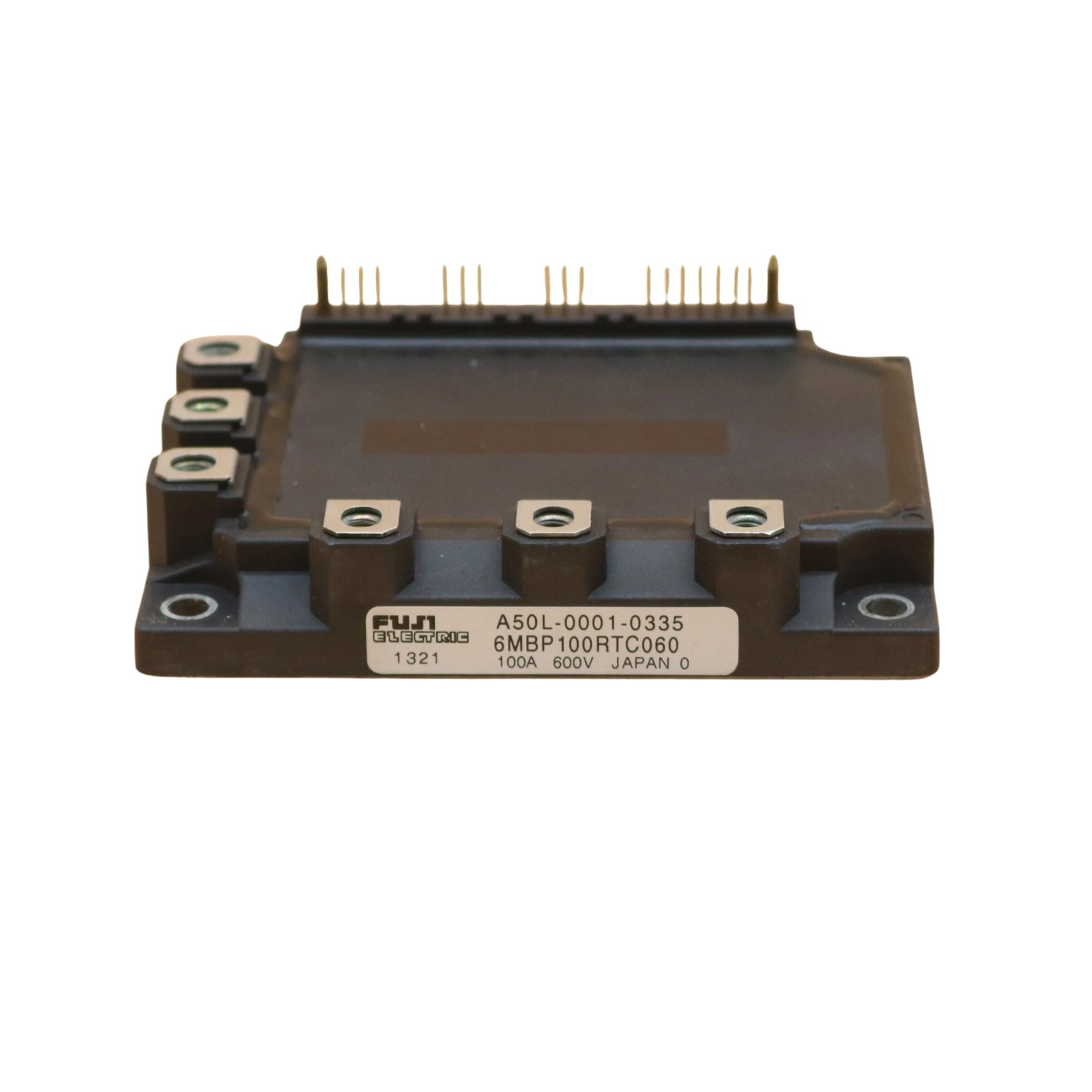

The Fuji 6MBP100RTC060, also known as A50L‑0001‑0335, is an intelligent power module (IPM) rated at 100 A and 600 V. It integrates IGBTs, free-wheeling diodes, onboard gate driving, and protective circuits in a compact chassis-mount package—ideal for simplifying design in motor drives, inverters, and servo applications.

Key Features

• 600 V collector-emitter voltage

• 100 A continuous current rating

• On-chip gate driver for simplified control

• Protection circuits: overcurrent, overheating, undervoltage

• Integrated fast-recovery free-wheeling diodes

• Insulated chassis-mount package with baseplate

• High-speed switching and thermal efficiency

Technical Specifications

• Part Number: 6MBP100RTC060 / A50L‑0001‑0335

• Voltage Rating: 600 V

• Current Rating: 100 A

• Configuration: IPM (IGBTs + gate driver + protections)

• Mounting Type: Chassis

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation: Insulated baseplate for safety and thermal control

• Package: Intelligent Power Module

Applications

• Compact motor control drives

• Servo and inverter systems

• Factory automation equipment

• CNC and robotics interfaces

• Uninterruptible power supplies (UPS)

Why Choose the 6MBP100RTC060

• Combines power components with built-in driver and protections

• Reduces external circuitry complexity

• Fuji Electric reliability for industrial use

• Easier and faster system integration

Order Now

The Fuji 6MBP100RTC060 (A50L‑0001‑0335) IGBT/IPM module is available and ships worldwide.
