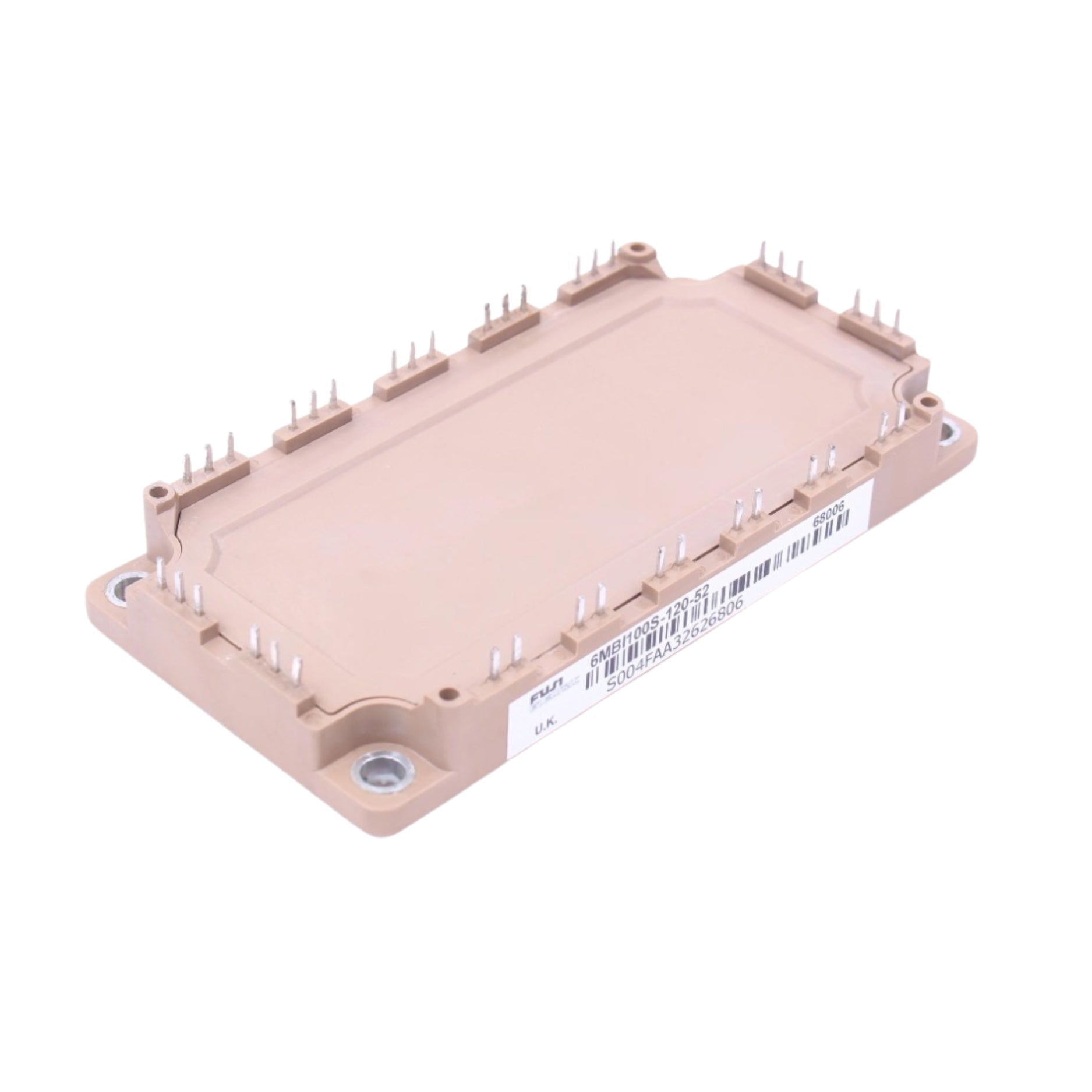

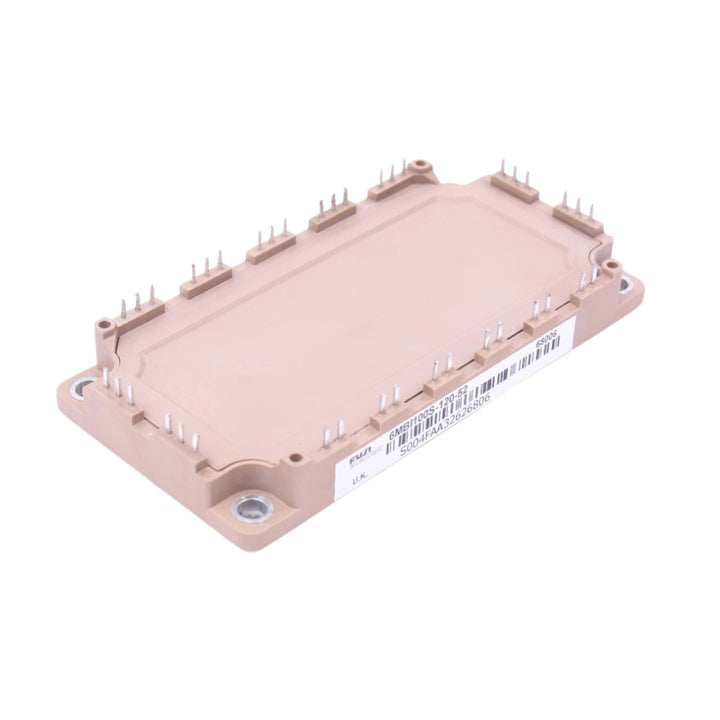

Fuji 6MBI100S-120-52

Fuji 6MBI100S-120-52

Overview

The Fuji 6MBI100S-120-52 is a high-performance IGBT module designed for power electronics systems that demand fast switching and reliable control. Rated at 100 A and 1200 V, this module is ideal for industrial inverters, servo drives, and UPS systems, offering efficient energy conversion and robust thermal performance.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 100 A

• High-speed switching capability

• Integrated free-wheeling diode

• Isolated baseplate for safe chassis mounting

• Compact industrial-grade design

• Long operating life under demanding loads

Technical Specifications

• Model: 6MBI100S-120-52

• Voltage Rating: 1200 V

• Current Rating: 100 A

• Mounting Type: Chassis mount

• Configuration: Single IGBT with diode

• Operating Temperature: -40 °C to +150 °C (Tj)

• Isolation: Insulated baseplate

• Package Type: IGBT power module

Applications

• Servo drives and motor control

• Industrial inverters and converters

• UPS and backup systems

• Renewable energy applications

• Welding and automation systems

Why Choose the 6MBI100S-120-52

• Trusted Fuji Electric quality

• Excellent thermal and electrical characteristics

• Easy to mount and integrate

• Built for high-reliability industrial use

Order Now

The Fuji 6MBI100S-120-52 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
