5 units sold
Fuji 2MBI400VB-060-50
Condition: New
Warranty: 1 Year
+10 Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558

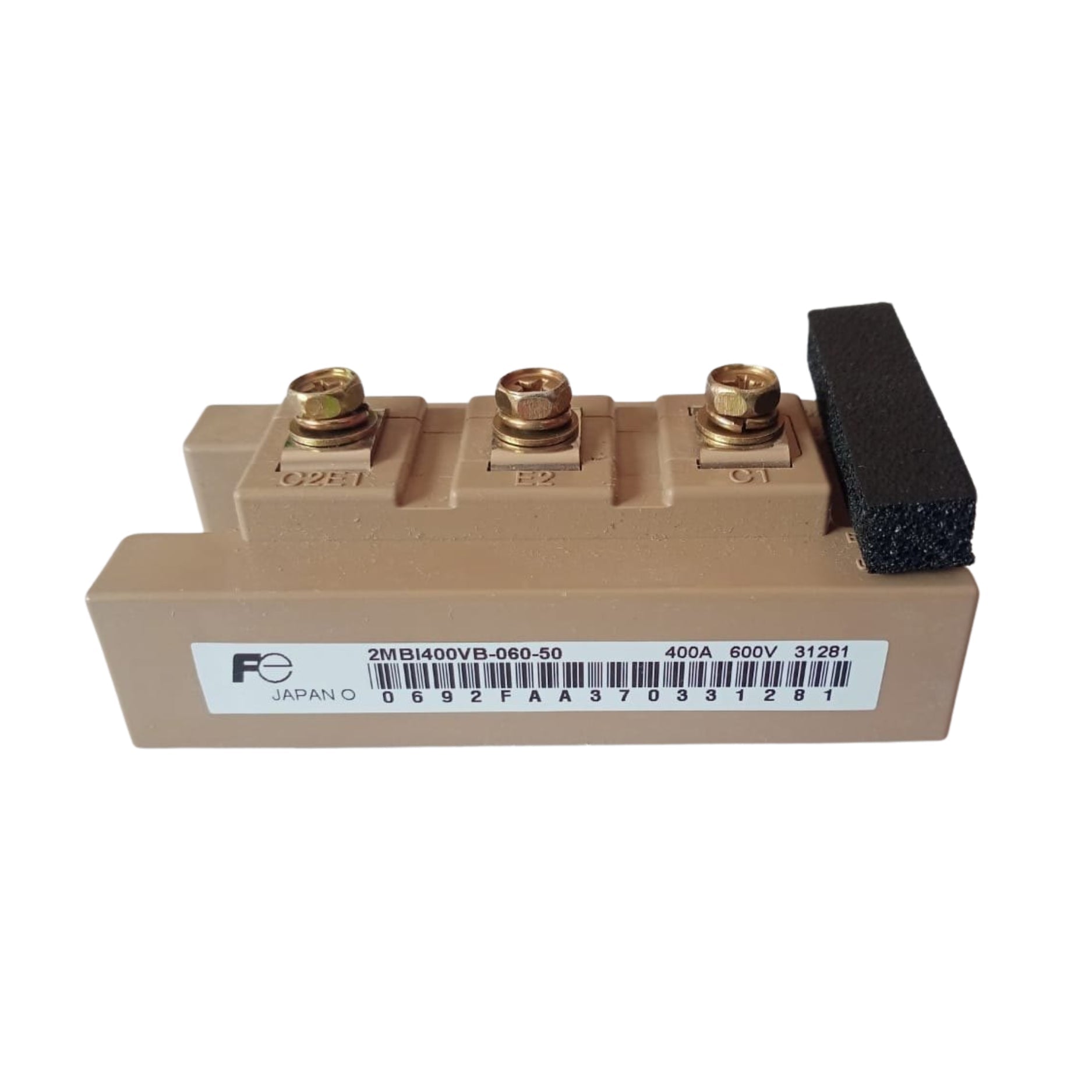

Fuji 2MBI400VB-060-50
Overview
The Fuji 2MBI400VB-060-50 is a dual-pack IGBT module engineered for fast-switching, high-current applications up to 400 A and 600 V. It features an insulated baseplate, built-in free-wheeling diodes, and high thermal performance, making it ideal for industrial inverters, motor drives, and energy conversion systems.
Key Features
-
Collector-Emitter Voltage: 600 V
-
Continuous Collector Current: 400 A
-
Dual IGBT configuration with free-wheeling diodes
-
Low Vce(sat) for high conduction efficiency
-
Insulated baseplate for optimal thermal dissipation
-
Fast switching for reduced switching loss
-
Rugged chassis-mount module
Technical Specifications
-
Part Number: 2MBI400VB-060-50
-
Manufacturer: Fuji Electric
-
Configuration: Dual-pack
-
Vce (Max): 600 V
-
Ic (Rated): 400 A
-
Vce(sat): ~1.9–2.2 V typical
-
Mounting Type: Chassis mount
-
Package: Insulated base module
-
Operating Temperature: –40 °C to +150 °C (Tj)
-
Isolation Voltage: ≥2500 V
-
Switching Frequency: Up to 20 kHz
Applications
-
Industrial motor control
-
Power inverters and converters
-
UPS and backup power systems
-
Renewable energy systems
-
Automation and robotics
Why Choose the 2MBI400VB-060-50
-
High-current capacity in compact dual-pack design
-
Optimized for fast switching and low conduction loss
-
Integrated diode simplifies circuit topology
-
Excellent thermal management for high-reliability applications
-
Proven Fuji quality for industrial performance
Order Now
The Fuji 2MBI400VB-060-50 IGBT module is available and ships worldwide.
Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.
Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
