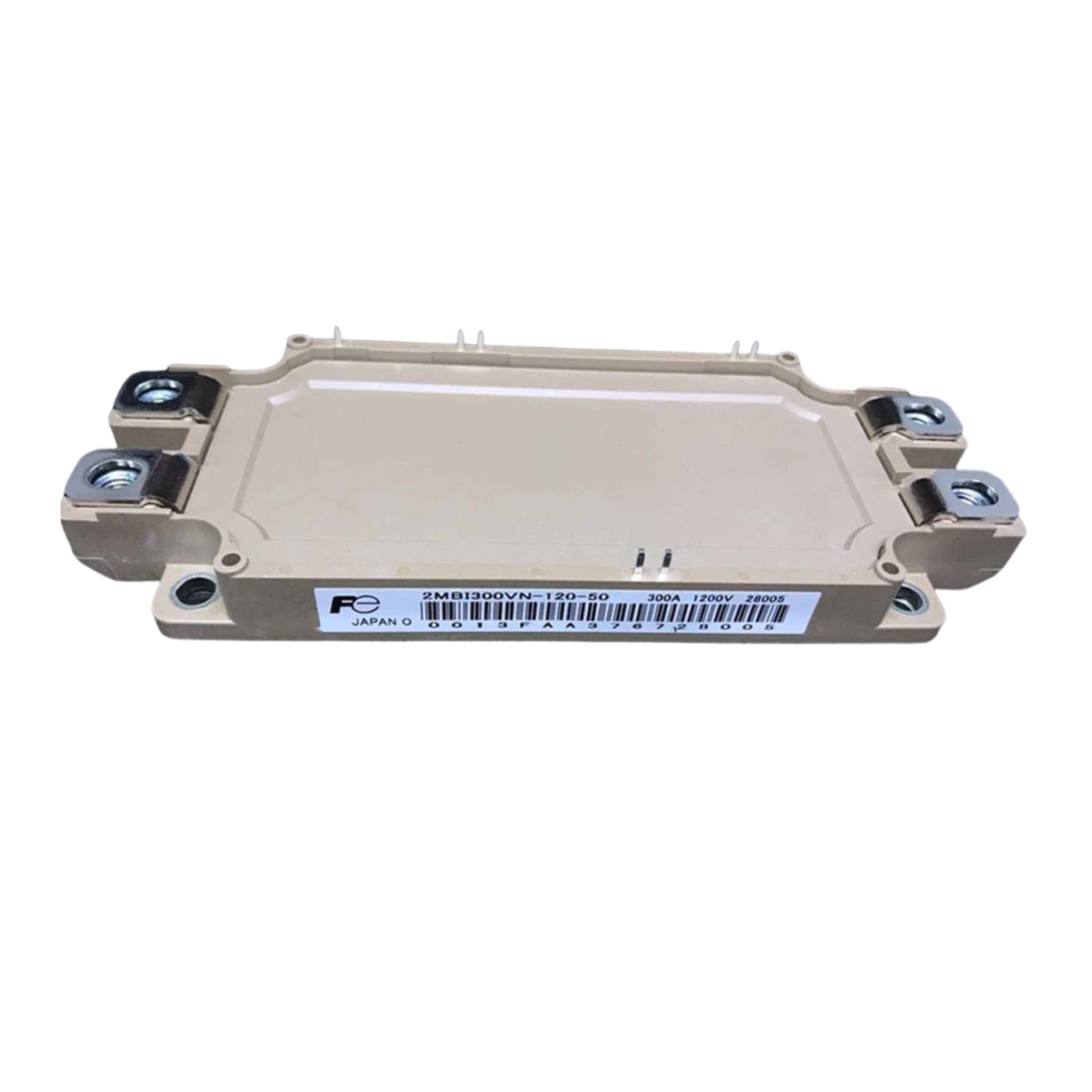

Fuji 2MBI300VN-120-50

Fuji 2MBI300VN-120-50

Overview

The Fuji 2MBI300VN-120-50 is a high-performance IGBT power module designed for efficient switching and energy conversion in industrial and power electronics. Featuring a dual IGBT configuration rated at 300 A and 1200 V, it’s ideal for high-voltage motor drives, inverters, and power supplies. The insulated baseplate and rugged chassis mount ensure thermal reliability and easy installation.

Key Features

• Dual IGBT configuration

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 300 A

• Low saturation voltage for high efficiency

• Fast switching characteristics

• Built-in free-wheeling diodes

• Insulated metal baseplate

• Designed for high-power industrial applications

Technical Specifications

• Part Number: 2MBI300VN-120-50

• Manufacturer: Fuji Electric

• IGBT Type: Trench

• Configuration: Dual pack

• Collector-Emitter Voltage (Vce): 1200 V

• Collector Current (Ic): 300 A

• Max Power Dissipation: Typically >1500 W

• Vce(sat): Low (typ. 2.3 V @ Ic=300 A, Vge=15 V)

• Mounting: Chassis mount

• Package: Module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Insulation: Isolated baseplate

Applications

• Industrial motor drives

• AC and DC inverters

• UPS and renewable energy systems

• Power converters and supplies

• High-current switching applications

Why Choose the 2MBI300VN-120-50

• High-current and high-voltage rating for demanding loads

• Compact module format for space-saving designs

• Excellent thermal performance and reliability

• Ideal for industrial automation and energy systems

• Proven Fuji Electric IGBT technology

Order Now

The Fuji 2MBI300VN-120-50 IGBT module is available and ships worldwide.
