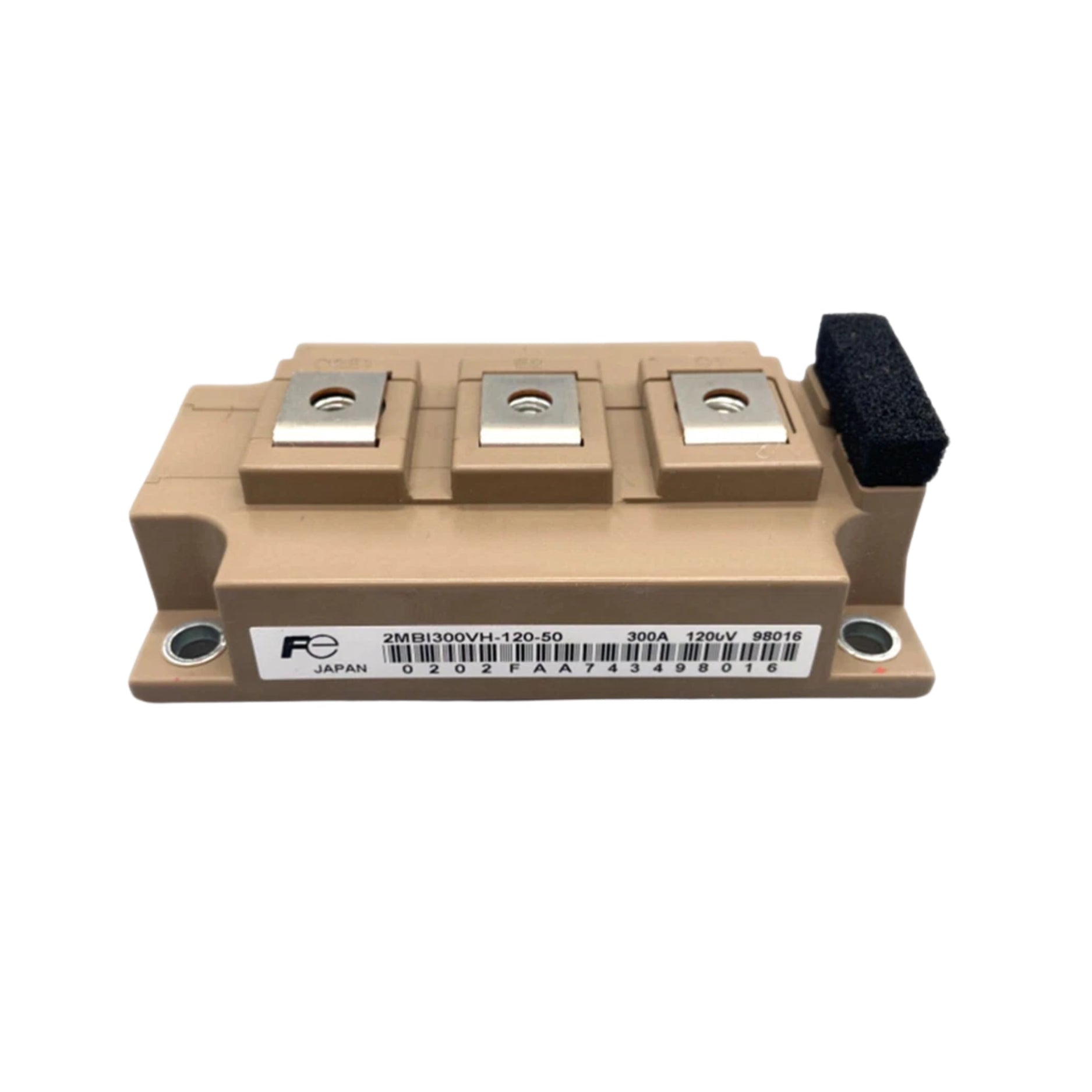

Fuji 2MBI300VH-120-50

Fuji 2MBI300VH-120-50

Overview

The Fuji 2MBI300VH-120-50 is a dual-pack IGBT module designed for high-efficiency switching in demanding industrial environments. Rated at 1200 V and 300 A, it delivers reliable power conversion with fast switching speeds and minimal conduction losses. It’s ideal for servo drives, inverters, and power control systems in automation and renewable energy applications.

Key Features

• Dual IGBT configuration for industrial-grade switching

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 300 A

• Low Vce(sat) for reduced power loss

• Built-in free-wheeling diodes

• Rugged insulated baseplate

• Fast switching with low EMI

• Standard chassis-mount package

Technical Specifications

• Part Number: 2MBI300VH-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Collector-Emitter Voltage (Vce): 1200 V

• Collector Current (Ic): 300 A

• Vce(sat): ~2.1 V typical @ Ic=300 A

• Power Dissipation: Approx. 1000–1200 W

• Mounting: Chassis mount

• Package: Module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Baseplate: Insulated for improved thermal handling

Applications

• AC motor drives

• Industrial inverters

• Renewable energy converters

• Servo control systems

• Power management equipment

Why Choose the 2MBI300VH-120-50

• High-performance and low-loss switching

• Durable and thermally efficient design

• Trusted Fuji quality and engineering

• Ideal for continuous-duty industrial loads

• Easy integration in standard inverter circuits

Order Now

The Fuji 2MBI300VH-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
